Strapping Band Machine
Created with Pixso.

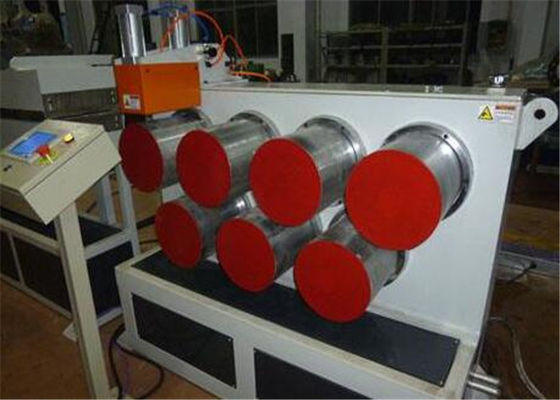

One Screw PET PP PE Strapping Band Machine Extruder Fully automatic

One Screw PET PP PE Strapping Band Machine Extruder Fully automatic

Brand Name: AORUI
Model Number: SJ65/33
MOQ: One set
Price: Negotiable
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month
Detail Information
Place of Origin:
China
Certification:
CE UL CSA
Condition:
New
Certificate:
CE ISO9001
Port:
Qingdao
Screw Number:
One
Brand Name:
Aorui
Automatic Grade:
Fully Automatic
Frequency Control:
ABB
Temperature Controller:
Omron
Packaging Details:
Fumigation wood, film,pallet,etc or according to customer’s requirement.
Supply Ability:
10 Sets per month
Highlight:

Strap Making Machine

,

Automatic Strapping Machine

Product Description





One Screw PET PP PE Strapping Band Machine Extruder Fully automatic





Quick detail:

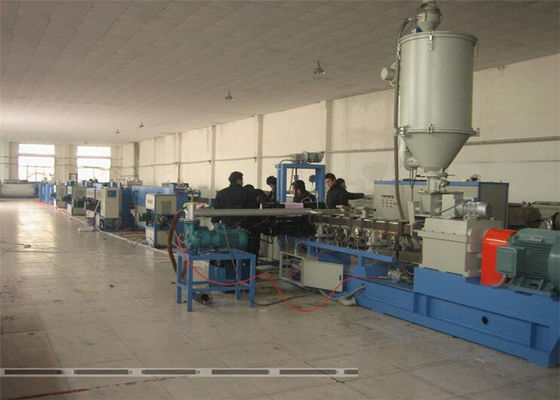

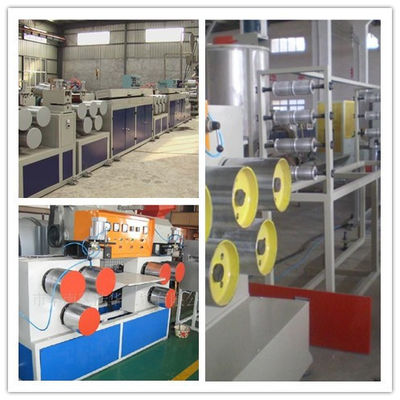

PET Strap Extruder/Strapping Band Production Line/PET strap production line



Machine characters :.



1. Quality parts . crystallization /drying system, driving system, extruding system, stretching system, forming system, drying , and winding system, all parts from high precision processed units, CE standard passed quality



2. Professional and experienced design Extruder adopts special screw for PET. The screw has unique separate and mix property to make sure uniform plasticizing. The screw suitable for recycled PET bottle flakes, PET mixture and original PET material. Stretching and winding system is much important in this line, we have EXPERT-LEVEL design on this.







Description:



1)Adopts advanced CSW-800 comby dehumidify dryer system. It make sure the material humidity≤80PPM at -50°C dew point. Meanwhile, it compact material and increase the viscidity.

2)Adopts closed cycle transport system after dryer to avoid contact with outside air and make sure the material be dry continuously.

3)Extruder adopts special screw for PET. The screw has unique separate and mix property to make sure uniform plasticizing. The screw suitable for recycled PET bottle flakes, PET mixture and original PET material. And the extruder adopts ration forced feeding to make sure the stable extruding. It makes sure the product uniform.

4)Produce different model product at one die and mould. Adopts hydraulic screen exchanger without material leak.

5)Static cooling roller replace the water cooling tank. The roller will cool the strap at the constant temperature. It improves the product’s stretch intensity.







Technological parameter:



SPECIFICATIONS FOR PET STRAP BAND MACHINE

Main Details
Raw Material
PET recycled flakes or PET original flakes
Final Product
PET Packing Strapping Band
Product Specifications
Width: 9mm-25mm
Thickness: 0.5mm-1.2mm

Machine Details
Capacity
2T-3T/Day(24 hours)
Workers
2-3 persons/ turn
Total Power
120kw-160kw

Extruder Model
SJ65/75 Single Screw Extruder
80kg/Hour
SJ90 Single Screw Extruder
150kg/Hour
Workshop Area Need
(L*W*H): (25-30m)*(3-5m)*(3-6m)









Application:



PE Tstrap band have advantages as good stiffness, high temperature resistance. The specific gravity is as 1/5 as steel. The straps can be used for packing in various areas. The characters of such straps are as follows: High tensile strength, small percentage elongation, resistance to impact, not easy to be broken and good softness.









Competitive Advantage:



24 hours services;

Overseas installation;

Free operation training and technology formula transfer;

Old machine update;

Spare parts and maintenance with reasonable cost price.
