pe ppr Plastic Pipe Extrusion Line / SJ90 Extruder pe Pipe Production Line

pe ppr Plastic Pipe Extrusion Line / SJ90 Extruder pe Pipe Production Line
pe ppr Plastic Pipe Extrusion Line / SJ90 Extruder pe Pipe Production Line pe ppr Plastic Pipe Extrusion Line / SJ90 Extruder pe Pipe Production Line pe ppr Plastic Pipe Extrusion Line / SJ90 Extruder pe Pipe Production Line pe ppr Plastic Pipe Extrusion Line / SJ90 Extruder pe Pipe Production Line

Large Image :  pe ppr Plastic Pipe Extrusion Line / SJ90 Extruder pe Pipe Production Line

Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE ISO9001
Model Number: SJ90/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer ’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter

pe ppr Plastic Pipe Extrusion Line / SJ90 Extruder pe Pipe Production Line

Description
Manufacture Velocity: 15m/min Mode Of Extruder: SJ-65
Condition: New Automatic Grade: Fully Automatic
Material: PE PPR PERT Place Of Original: Shandong, China
Voltage: 380V,3ph,50Hz Product Type: PE Pipe
High Light:

plastic pipe extruder machine

,

plastic pipe production line

pe ppr Plastic Pipe Extrusion Line / SJ90 Extruder pe Pipe Production Line







Quick detail:



1. Single screw extruder. 2-3 co-extruding die.Smooth outside and inside wall, and little internal sterss.



2. hdpe pipe extrusion machine/line process flow:

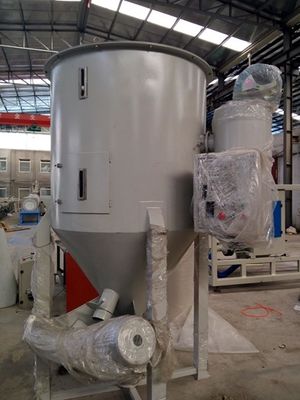

Vacuum loader → Hopper dryer→ Single screw extruder → PE pipe mould and co-extruder→ Vacuum calibration tank→Spray cooling tank → Hauling off machine → No chip cutting machine or Planetary cutting machine → Pipe winding machine or pipe stacker.



3. Features for PE pipe extrusion machine:

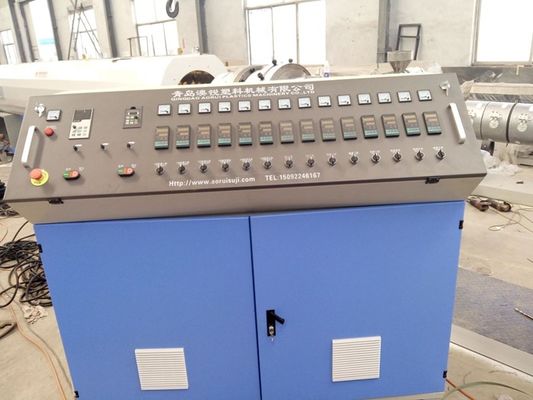

a) Man-machine operation interface, high automation level .
b) The adoption of professional screw ensures good plastification.
c) Adopts compound screw type head to clear memory function effectively.
d) Vacuum forming, constant temperature control to remove stress of pipe material .





Specifications:



The complete extrusion consists of following items:



l. Single screw extruder

2.Co- extruder: to manufacture marking multi-layers of pipe

3. Die head

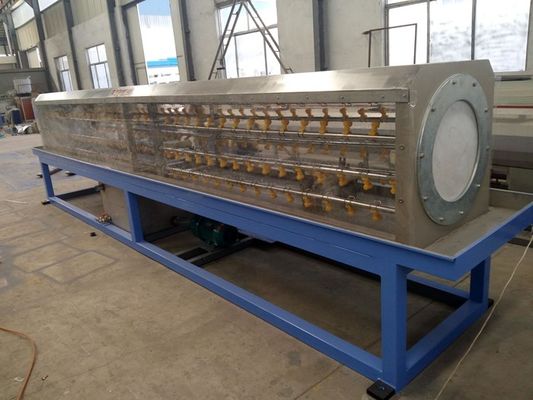

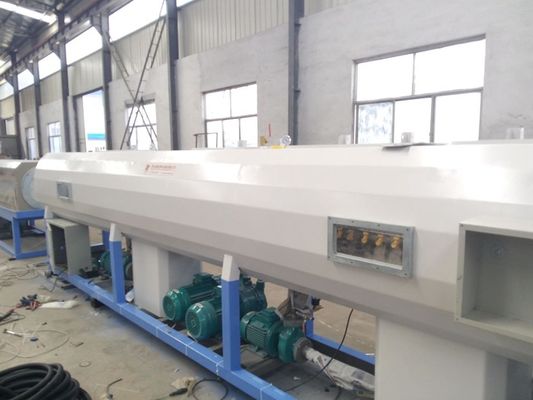

4. Vacuum tank: due to diameter, it can be designing of single, double vacuum chambers

5. Cooling tank: due to diameter, the numbers of cooling tanks can be one or two

6. Haul-offs: due to diameter, it can be designing of double or three caterpillars

7.Cutter: no scraps cutter.

8. stacker



Production line features:
High efficiency extruder is designed for HDPE pipe, equipped with reducer which is high speed and low noise, feeding section with cooling unit and reversing spiral groove, different pitch undulant screw which allows great output, lower melting temperature, and lower energy consumption.



Distributed spiral composite extrusion die-head ensures the melting pressure and flux even and stable, the surface of pipe smooth and glossy. Co-extruder for Marking strip.








Main Technical Parameters

Extruder SJ-65/30B SJ-90/30B SJ-120/30B SJ-150/30B
  SJ-30/25B sj-45/30B
  SJ-25/25B SJ-25/25B SJ-25/30B SJ-25/30B
Pipe Dia(mm) 20-63 20-160 110-400 315-630
Water sizing trough SGZL-75 SGZL-160 SGZL-400 SGZL-630
Water cooling trough SGPL-75 SGPL-160 SGPL-400 SGPL-630
Haul off machine SLQ-75B SLQ-160B SLQ-400B SLQ-630B
Cutting machine STG-75 STG-160 STG-400 STG-630
Stacker FZ-6000 FZ-6000 FZ-6000 FZ-6000





Competitive Advantage:





1 .  high capacity
2 .  IOS9001 : 2000

3 .  have many years experience

pe ppr Plastic Pipe Extrusion Line / SJ90 Extruder pe Pipe Production Line 0
