Plastic Profile Extrusion Line With Conical Twin Screw Extruder , PVC Window Profile Machinery

Plastic Profile Extrusion Line With Conical Twin Screw Extruder , PVC Window Profile Machinery
Plastic Profile Extrusion Line With Conical Twin Screw Extruder , PVC Window Profile Machinery Plastic Profile Extrusion Line With Conical Twin Screw Extruder , PVC Window Profile Machinery Plastic Profile Extrusion Line With Conical Twin Screw Extruder , PVC Window Profile Machinery

Large Image :  Plastic Profile Extrusion Line With Conical Twin Screw Extruder , PVC Window Profile Machinery

Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE UL CSA ISO9001
Model Number: SJSZ65/132
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per quarter

Plastic Profile Extrusion Line With Conical Twin Screw Extruder , PVC Window Profile Machinery

Description
Condition: New Screw Design: Double Screw
Model Number: SJSZ65X132 Place Of Original: Qingdao Port
Certificate: CE ISO9001 Warranty Time: 1 Year
Voltage: 380V 50HZ After-sales Service: Engineers Availiable To Service
High Light:

Plastic Profile Extrusion Machine

,

Plastic Profile Extruder

Hollow / Solid Plastic Profile Extrusion Line For Settee / Couch



Quick detail:

1.PVC profile production line is applied to produce PVC window door frame profile,PVC ceiling panel profile,PVC cable trunking profile by changing different mould.

2.This production is composed of conical twin-screw extruder,mould,vacuum calibration table, haul-off, cutter and stacker.

Production Flow of PVC Profile Making Machine

PVC powder + additives → Mixer → Screw feeder → Extruder → Mould → Vacuum forming table→ Haul-off machine→ Cutting machine → Stacker



Description of PVC Profile Production Line:

1.YF Series PVC profile production line is mainly used in PVC or WPC door & window profiled material, wide door plate, window plate, extrusion of multi-holes pipe for passing through lines (four holes, six holes, seven holes, nine holes, etc.) For different sectional surface and molds, twin parallel (conical) screws extruder of different specifications can be chosen together with corresponding vacuum calibrating table, haul-off unit, cutting unit, tilter, etc.

2.The PVC profile extrusion line is equipped with conical twin-screw extruder. The production line has many advantages: material thawing even, small shear rate, high output, long service life, etc. The production line includes extruder, calibrator unit, haul-off unit, film-coating machine, stacking unit, etc.Surface treatment equipment:Thermal transfer, Laminating machine.Two - color printing pressesing machine.



Technical parameters of pvc profile machine:

Model Extruder Makc. width Total power of auxiliary machine Cooling water capacity Traction speed Capacity
SJSZ51/105 SJSZ51/105 180mm 16kw 6 1-8m/min 100KG/H
SJSZ65/132 SJSZ65/132 240mm 28kw 6 1-6m/min 200KG/H
SJSZ80/156 SJSZ80/156 300mm 32kw 9 1-8m/min 350KG/H



Application:

PVC wood foaming profile extrusion line: equipped with specially designed screw, barrel, die-head and axiliary machines, using advanced procesing technique. The profile is a new environmental friendly product, material mixed plastic, wood and appropriate aditives. It is widely used for product carrier, packaging box, frame of window & door, decorating board and other outdoor products.

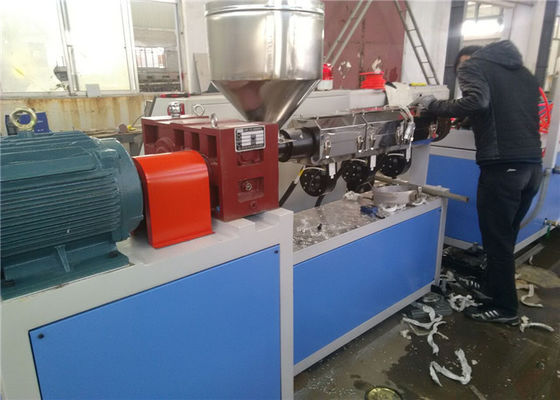

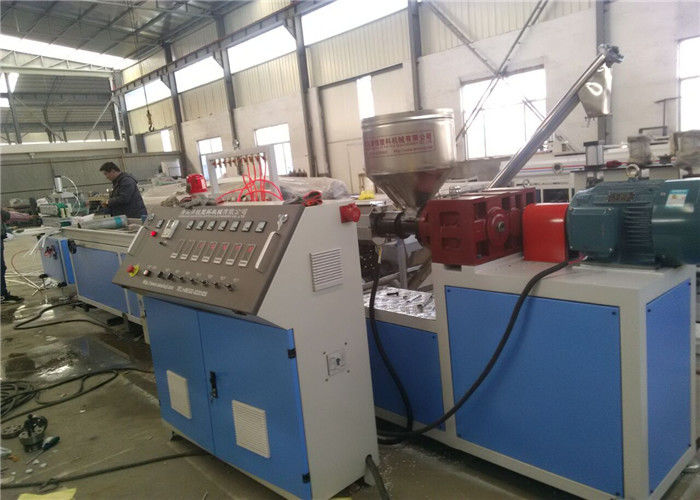

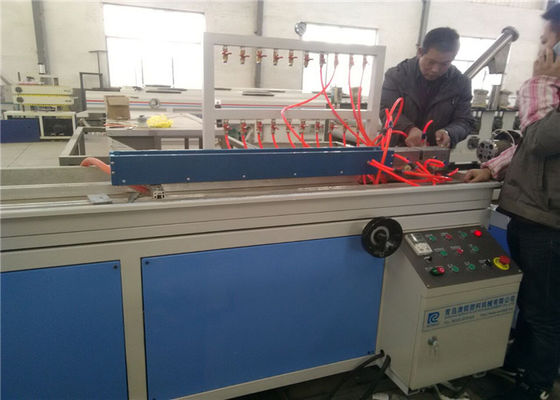

Machine display:

Plastic Profile Extrusion Line With Conical Twin Screw Extruder , PVC Window Profile Machinery 0
