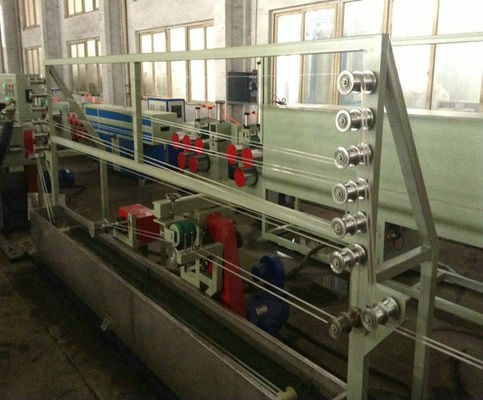

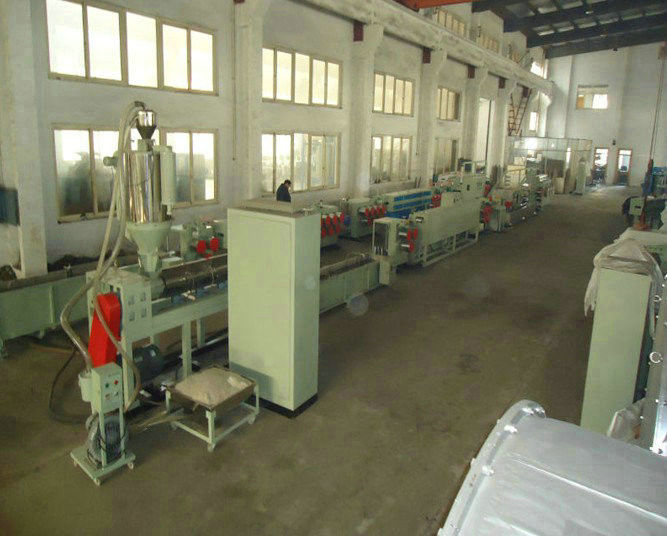

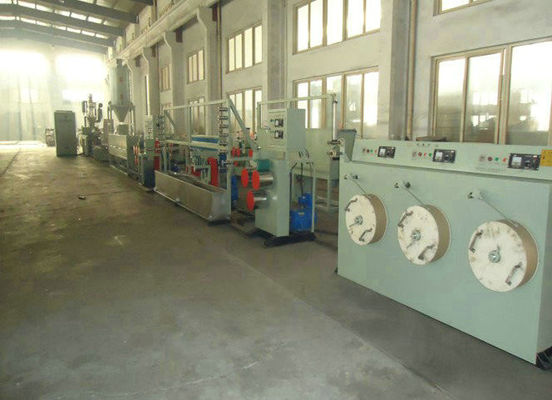

PP / PET Strapping Band Machine , Carton Box Packing Strap Machine

Brand Name:	AORUI
Model Number:	PET75
MOQ:	One set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE UL CSA

Capacity:

100-130kg/h

Plastic Processed:

PP/PET

Screw Design:

Single Screw

Name:

Strapping Band Machine, Strapping Band Making Machine

Voltage:

380V

Strap Thickness:

0.4-1.8mm

Application:

Packing Belt

Condition:

New

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets per month

Highlight:

Strapping Band Making Machine

Strap Making Machine

Product Description

PP / PET Strapping Band Machine , Carton Box Packing Strap Machine

Brief introduction of pet strap band machine:

1.PET strapping machine,using the recycling bottle slices as raw materials by making them melt directly,which reduces the course of raw material-making.

2.Low energy consumption, high production capability.

3.Easy to operate ,save manpower

PET Dehumidification drying machine

PLC control system, automatic feeding and using molecular sieve structure.it could dry pet well and increase viscosity of pet to ensure good pet strength.

High quality single screw extruder

Adopted with Siemens computer system.Directly driven frequency motor
38CrMoAl materials 90mm screw with special design for pet strap extrusion

Extrusion die with melt pumb, filter.

The extrusion die is designed according germany drawing, high precision extrusion and good plasticizing.It added with famous pet
melt pumb and our special design filter.

High quality stretching system

Perfect design heating oven system and using 15kw-30kw motor to drive stretching rollers, it will ensure good strap drawing rate

Automatic winder.

PET will use torque motor and pp will use servo motorIt will rank strap automaticly with max 200m/min speed.

Technical paraemters of PET Strap Band Machine:

Model	Capacity (kg/h )	Strap size (mm)	Installed Power (KW)	Manpower	Machine size (LWH m)
SJ65/33 Single strap	50~60	9~19	85	1~2	3545
SJ75/33 Single strap	80~100	9~19	100	1~2	3846
SJ75/33 Double strap	80~120	9~19	110	1~2	4046
SJ90/33 Double strap	150~200	9~19	150	1~2	4557
SJ120/33 Double strap	200~250	9~19	220	1~2	4557

Application:

PET PP PE strap , known as plastic steel band, which is used in place of steel on the world of a new environmentally friendly packaging materials, the development of new materials in recent years the cost of success and a substantial decline,have been widely used in the steel industry,chemical fiber industry,alluminum ingots,paper,brick kiln industry,screw industry,tobacco industry,electronics,texriles and wood,etc;is replaced by a new high-strength steel strapping,is the world's most widely used for steel products.

Competitive Advantage:

Easy to operate

High output

CE certificate
