|Place Of Origin:||Shandong , China||Type:||Plastic Pipe Production Line|
|Screw Design:||Double Screw||After-sales Service:||Engineers Availiable To Service|
|Certification:||CE & ISO9001||Brand Name:||AORUI|
|Plastic Processed:||Pvc||Frequency Inverter:||ABB|
Plastic Extruding Machine,
Plastic Extrusion Equipment

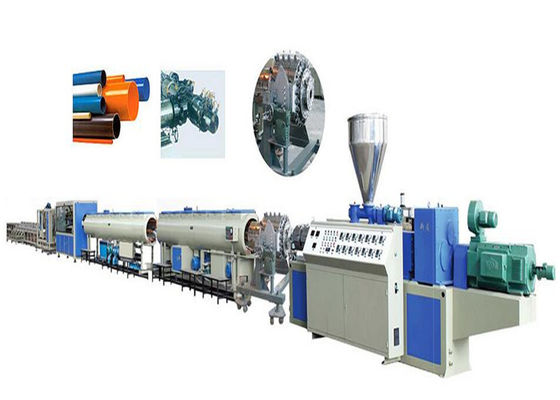

Fully Automatic Twin Screw PVC Conduit Pipe Making Machine / PVC Pipe Production Line
1. The pvc pipe production line consists mainly of twin conical(parallel) screws extruder , vacuum calibrating tank , tractor , haul-off unit , cutting unit , tilter , etc.
2. Single screw extruder and haul-off unit have applied imported A/C inverter , both vacuum pump and driving motor have applied excellent products.
3. The drwing machine includes Two-claw type , three-claw type , four-claw type ,six-claw type , eight-claw type , etc. saw cutting or planet cutiing can be applied , it is additionally applied with length measuring meter and thickness increasing device , the property of machine group is reliable , the production effciency is high.
1. Produce process:
pvc powder+ addtive+mixing+spring feeding +twin screw extruder+mould and calibrator+vacuum forming machine+haul off machine+cutting machine+stcker
2. PVC pipe production line is mainly used in the manufacture of the plastic PVC pipes with various tube diameters and wall thickness in the aspects such as the agricultural and constructional plumbing, cable laying etc. This line is made up of the conical twin-screw extruder, vacuum forming table, haul-offs, cutter, rickstand, etc.
3. The extruder and the haul-offs adopt the imported AC frequency control device. The vacuum pump and the electric vehicle motor empoly the superior goods. The haul-offs has the traction modes such as two-caterpillars, three-caterpillars, four-caterpillars, five-caterpillars and so on. It is additionally attached with measuring apparatus and the intensifying device. The unit is reliable and efficient production.
4. The advantages of SJSZ series PVC pipe extrusion line :
1)forced extruding, high quality, wide suitable range, long working life, small sharing speed,
2)not easy to decompose of material, good plasticized character, and straight shaping of powder material and etc.
3)This extruder is equipped with AC motor, auto temperature controller,
4)Vacuum exhausting device and other devices.
Main Technical Parameter
|diameter 16-110||diameter 32-160||diameter 63-250||diameter 160-400||
|Diameter of pipe material||16-63||16-110||32-160||63-250||160-400||315-630||450-800|
|claw number of drawing machine||2||2||2||3||4||6||8|
|total power of auxiliary machine||14||14||14||21.5||41||56||64|
GF series plastic pipe material production line is mainly used in the area of agricultural water supply systerm , architectural water supply systerm , pavement of cables , etc. as well as PVC pipe material of all sorts of pipe caliber and wall thickness.
Our competetive advantages:
1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
