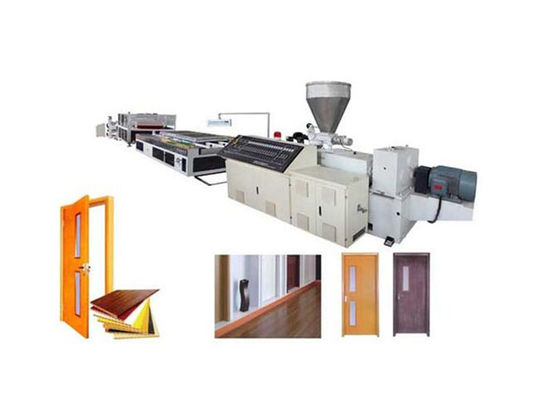

CE UL Plastic Board Extrusion Line , PVC Board Making Machine For Furniture

Certification
China QINGDAO AORUI PLASTIC MACHINERY CO.,LTD1 certification
Customer Reviews
The sales have good service, it brings me a good experience. We import 5 sets extruders from this company, the extruders have good quality and long service life. I'd like to cooperate with this company for long time.

—— Andrew

The pvc board extrusion machine is good quality , it is beautiful and the output is stable , this is a reliable company

—— Albert

This machine is very good , and the after-saes service is good. The pvc board machine is easy to operate and the output is stable

—— Nancy

I'm Online Chat Now

CE UL Plastic Board Extrusion Line , PVC Board Making Machine For Furniture

CE UL Plastic Board Extrusion Line , PVC Board Making Machine For Furniture
CE UL Plastic Board Extrusion Line , PVC Board Making Machine For Furniture CE UL Plastic Board Extrusion Line , PVC Board Making Machine For Furniture CE UL Plastic Board Extrusion Line , PVC Board Making Machine For Furniture

Large Image :  CE UL Plastic Board Extrusion Line , PVC Board Making Machine For Furniture

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE UL CSA ISO9001
Model Number: SJSZ80/156
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month

CE UL Plastic Board Extrusion Line , PVC Board Making Machine For Furniture

Description
Condition: New Motor: Siemens
Temperature Controller: Omron Frequency Control: ABB
Automatic Grade: Fully Automatic Brand Name: Aorui
High Light:

Board Production Line

,

Panel Production Line



CE UL Plastic Board Extrusion Line , PVC Board Making Machine For Furniture





Quick detail:



1. This machine is mainly used to produce PVC window & door profiles, PVC trunking profiles, PVC ceiling profiles, PVC panel, PVC board and so on. This PVC profile production line adopts advanced design concept to ensure the efficient extrusion of PVC material, combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production.



2.  Full set of mould can safisfy different kinds of profile production(max profile width is 600mm)
 Calibrate and cooling in complete vacuum condition
Caterpillar hauling machine,automatic length accounting device for precise cutting
Non chipping machine ,adopt advanced Germany technology
Stainless steel and pneumatic controlled









Description:



Description of PVC panel line:
1.This machine With PLC Control system in the production line, reliable and stable performance.
2.The down stream equipment includes vacuum calibration and cooling unit, haul-off unit, cutting machine and stacker.

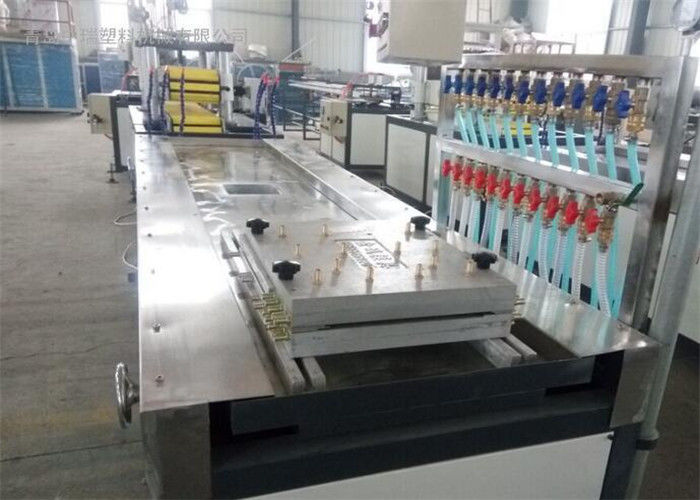

3.The calibration unit is equipped with large forced cooling system so that it can provide perfect calibration effect.
4.The hall-off unit is caterpillar style. The lower one is fixed and the upper one can be adjusted according to the plate size.
5.The cutting machine is able to set length and provide accurate automatic cutting.
6.The stacker is attached with material cart and rubber protection layer to prevent products from damage, and easy operation.



Process Flow of PVC Ceiling panel line:
Raw material +wood power+ additive → mixing → granulating → conical twin-screw extruder → profile extrusion mould → cool molding die → vacuum calibration support → belt haul-off → cutter → rack → finished product inspecting & packing







Specifications:



Machine Type SJ80/156 SJ92/188
Product Width 1220mm 1500mm
Product Thickness 5-20mm 5-35mm
Extruder Specification SJZ80/156 SJZ92/188
Max. Extrusion Volume 450kg/h 650kg/h
Main Motor Power 75kw 132kw







FAQ:
Q1:Are you a trading company or a manufactory? A1:We are a manufactory,so we can give u the best service .
Q2:What's your guarantee or the warranty of the quality if we buy your machines? A2:We offer you high quality machines with 1 years guarantee . we will give you spare part free in 1 years
Q3:When can I get my machine after I paid? A3:We will deliver the machines on time as the date we agreed both side.
Q4:How can I install my machine when it arrives? A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q5:How about the spare parts? A5:After we deal down all the things , we will offer you a spare parts list for your reference.
