Product Details:
|
| Motor: | Siemens | Temperature Controller: | Omron |
|---|---|---|---|
| Inverter: | ABB | Control Mode: | Frequency Control |
| Product Color: | According To Customer's Requirement | Certificate: | CE ISO9001 |
| Power: | 37KW | ||
| High Light: | Strapping Band Making Machine,Strap Making Machine |
||
Frequency Control Strapping Band Machine , PET Strap Making Machine With Siemens Motor
Quick detail:

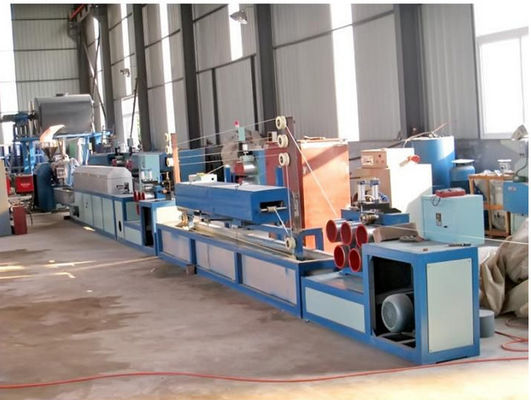

Machine line composition for PET strapping band production:
1.1 SHR-1500 crystallizing and drying and I. V increasing unit
1.2 SHJ-65 Building Block Type parallel Twin Screw Extruder
1.3 Moulds of machine head
1.4 high pressure static casting machine
1.5 the first haul-off
1.6 oven
1.7 the second haul-off
1.8 The third haul-off
1.9 warm calibrating box
1.10 canlender
1.11 the fourth haul-off
1.12 four-station winder
Description:
1. The Plastic Making Machine PP PET Packing Strap Extrusion Production Line made by Qingdao
AORUI Plastic Machinery Co., Ltd, could adopt virgin materials, also could use the recycled materials.
The final product owns the excellent features of low-weight, great tensile force,etc. It can take place of
stell belt to pack silk flosses and stones.
2. The Plastic Making Machine PP PET Packing Strap Extrusion Production Line adopts single screw
extruder or paralletl twin screw extruder, meanwhile equipped whit hydraulic screen changer to filt the
impurity from raw materials.
3. PP strap band extrusion line is mainly for producing PP strap. The raw material can be 100% recycled material, which can reduce the Pproduce cost and get a good profit. And The PP bale is the substitution of the steel strap and has a lot of advantages such as good extension, high temperature resistant, easy use.
It is mainly suitable for packaging for various trades.
Technological parameter:
| Model | SJ-65 | SJ-80 | SJ-90 |
| Extruder | SJ-65/28 | SJ-80/28 | SJ-90/28 |
| Productivity | 60-100kg/h | 80-120kg/h | 120-150kg/h |
| Drive Motor | 22kw | 30kw | 55kw |
| Two-station Winder | 80-120m/min,adjustable | ||
| Strap Size | Width:5mm-20mm | Width:10mm-25mm | Width:20mm-35mm |
| Thickness:0.36mm-1.0mm | Thickness:0.5mm-1.3mm | Thickness:0.5mm-1.8mm | |
| Installed Capacity | about40kw | about 60kw | about80kw |
| Line Dimension | 26m×2m×2.2m (L×W×H) | 26m×3m×3m (L×W×H) | 26m×5m×3.5m (L×W×H) |
Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
