Product Details:
|
| Port: | Qingdao | Automatic Grade: | Fully Automatic |
|---|---|---|---|
| Trademark: | Aorui | Certificate: | CE ISO9001 |
| Application: | Strap Band | Capacity: | 100-120kg/h |
| Condition: | New | ||
| High Light: | Strapping Band Making Machine,Strap Making Machine |
||

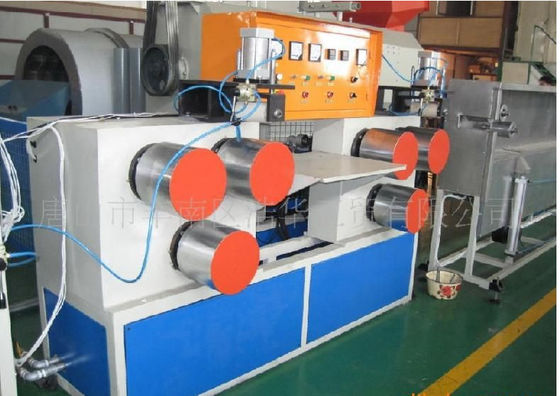

PP PET Strap Belt / Strapping Band Machine Production Line Fully Automatic
Quick detail:
1. This production line is suitable for pp recycling, mixed and virgin granules to do sandiwched or non-sandwiched pp straps.100% wasted pp straps flakes can reproduce pp straps also.
2. This plastic mahcine PP strap band product for packaging. This line is comparatively low cost. The line speed is 80m/min. The width and thickness of the strap band is adjustable.
3. PP Bale Strap Machine is a renewed and improved design, and is special for producing the polypropylene packing strip.

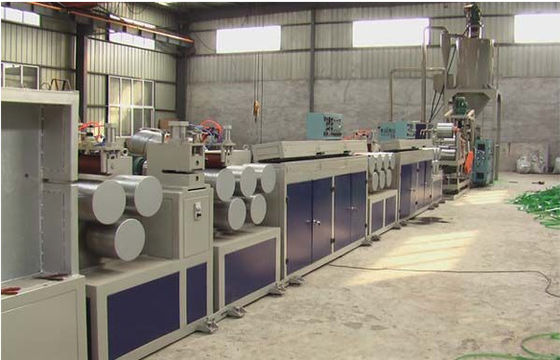

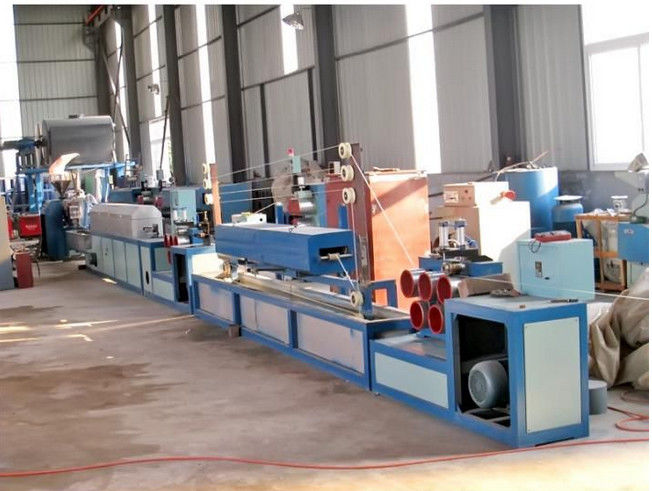

4. The whole machine includes the extruder, mould, cooling tank, haul-off device, embossing device, winder and electrics controlling part.
Description:
PP straps
Strapping banding is used to secure items for shipping or storage. There are many different types of products. Polypropylene strapping and polypropylene banding are suitable for securing lightweight bundles, boxes, cases, parcels and palletized loads.
Often, polypropylene strap and polypropylene band are secured with hand tools such as tensioners, sealers, or friction welders. Machine strapping and banding for automatic equipment are also available. Steel strapping and steel banding are designed for heavier, palletized loads; plywood cases and wooden crates; and sharp-edged objects.
Polyester strapping and polyester banding (PET strap) are comparable to some types of steel strap in terms of break strength, but they are cheaper and rust resistance. Stainless steel strapping and banding are also corrosion-resistant.
Technological parameter:
| Model | SJ-65 | SJ-80 | SJ-90 |
| Extruder | SJ-65/28 | SJ-80/28 | SJ-90/28 |
| Productivity | 60-100kg/h | 80-120kg/h | 120-150kg/h |
| Drive Motor | 22kw | 30kw | 55kw |
| Two-station Winder | 80-120m/min,adjustable | ||
| Strap Size | Width:5mm-20mm | Width:10mm-25mm | Width:20mm-35mm |
| Thickness:0.36mm-1.0mm | Thickness:0.5mm-1.3mm | Thickness:0.5mm-1.8mm | |
| Installed Capacity | about40kw | about 60kw | about80kw |
| Line Dimension | 26m×2m×2.2m (L×W×H) | 26m×3m×3m (L×W×H) | 26m×5m×3.5m (L×W×H) |
Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
