Product Details:
|
| Brand Name: | Aorui | Machine Name: | Aorui |
|---|---|---|---|
| Condition: | New | Motor: | Siemens |
| Place Of Original: | Shandong , China | Certificate: | CE ISO9001 |
| High Light: | wpc board production line,wpc board machine |
||

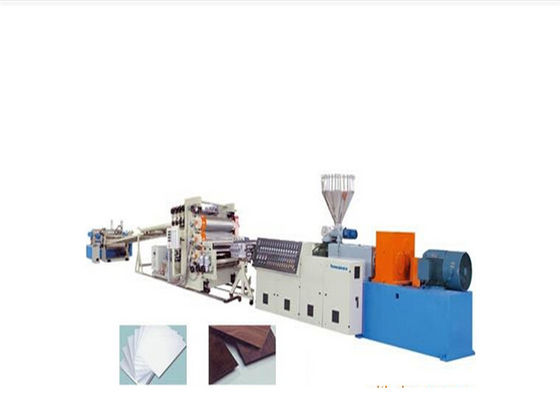

PVC Foam Board Machine , PVC WPC Wood Composite Sheet Board Production Line
Quick detail:
1. PVC WPC skinning foam board Extrusion Machine is our latest updated products. It's continuously improved on the basis of requirements and feedbacks from our customers and combined with foreign advanced technology. It shows superior performance, high reliability and practicality with its compact structure, advanced configuration and outstanding output in the production of 3-20mm thick, high-qualified and colored PVC and WPC foam board.
2. Our pvc wpc skinning foam board extrusion machine adopts Celuka foam technology, which can produce a kind of PVC WPC foam boards with superior quality. These processes result in a "skinning" or outer layer of foam board and it achieve excellent surface hardness, rigidity and toughness or more scratch resistant. This kind of PVC WPC foam board can not only have much smoother surface but also have more skin hardness compared with other PVC boards.
Description:
Introduction:
PVC Free Foam Sheet / PVC Free Foam Board is the new man-made material, the main component is PVC, it has the fine chemical stability, anti-corrosive and high intensity, it can be the substitute of wood, it is widely used in the building, advertisement and decoration.
Features:
1. Waterproofing.
2. Fire retardant and self-extinguishing.
3. Heat preservation.
4. Sound-insulated.
5. Insulation.
6. Non-corrosion.
7. Non-toxic.
8. Tough, rigid with the high impact strength.
9. Stable color retention.
Specifications:
|
400kg/h | 600kg/h | 800kg/h | ||
| Main Extruder | SJ80/156 ABB frequency converter, SIEMENS contactor, OMRON or SCHNEIDER temperature control Motor power:75KW Motor brand: SIEMENS |
SJ80/173 ABB frequency converter, SIEMENS contactor, OMRON or SCHNEIDER temperature control Motor power:90KW Motor brand: SIEMENS |
SJ92/188 ABB frequency converter, SIEMENS contactor, OMRON or SCHNEIDER temperature control Motor power:110KW Motor brand: SIEMENS |
||
| Mould | T-die JINGCHENG MOULD |
T-die JINGCHENG MOULD |
T-die JINGCHENG MOULD |
||
| Sizing Platform | Calibration plate: 4units |
Calibration plate: 5units |
Calibration plate: 6units |
||
| Cooling Bracket | 6pcs Length:4000mm |
6pcs Length:4000mm |
6pcs Length:4000mm |
||
| Hauling Off Machine | 16pcs 8units |
16pcs 8units |
16pcs 8units |
||
| Cutting Machine | Automatic cutting with dust collector, motor brand: SIEMENS | Automatic cutting with dust collector, motor brand: SIEMENS | Automatic cutting with dust collector, motor brand: SIEMENS | ||
| Stacker | Cylinder control the stacker up and down | Cylinder control the stacker up and down | Cylinder control the stacker up and down | ||
| Automatic Loading Finished Board | Lift the finished board automatically as per the set length and count amount of board Counter brand:AUTONICS (korea) |
Lift the finished board automatically as per the set length and count amount of board Counter brand:AUTONICS (korea) |
Lift the finished board automatically as per the set length and count amount of board Counter brand:AUTONICS (korea) |
Competitive Advantage:
1) We give you suitable suggestions according to your actual need.
2) Technical support: long available life
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
