PVC WPC Wood Plastic Composite Extrusion Line for Window Profile Production

China PVC WPC Wood Plastic Composite Extrusion Line for Window Profile Production supplier
PVC WPC Wood Plastic Composite Extrusion Line for Window Profile Production supplier PVC WPC Wood Plastic Composite Extrusion Line for Window Profile Production supplier PVC WPC Wood Plastic Composite Extrusion Line for Window Profile Production supplier PVC WPC Wood Plastic Composite Extrusion Line for Window Profile Production supplier

Large Image :  PVC WPC Wood Plastic Composite Extrusion Line for Window Profile Production

Product Details:

Place of Origin: China
Brand Name: AORUI
Certification: CE UL CSA
Model Number: SJSZ51/105

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month
Contact Now
Detailed Product Description
After-sales Service: Engineers Avaialible To Service Application: Profile
Plastic Processed: WPC Voltage: 380V 50HZ
Warranty: 1 Year Automatic Grade: Fully Automatic
Brand Name: Aorui Model Number: SJSZ51/105

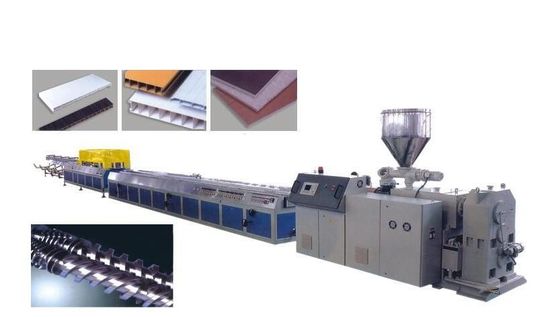

PVC WPC Wood Plastic Composite Extrusion Line for Window Profile Production





Quick detail:



Wood plastic composite profile extrusion line /PVC window frame production equipment



Wood Plastic Composite (WPC), nowadays, is one of the most charming products in plastic industry. Thanks to concerns on our environment and enormous demands, WPC is becoming more and more popular all across the world. The market, now, has transferred from North America and EU to other countries. It is expected that WPC should replace wood in the near future.



WPC not only presents woody texture, beautiful and elegant outlook, but also has plastic characteristics, such as anti-acid, antiseptic, fireproof, waterproof, etc. Moreover, WPC can be totally recycled and reproduced, dramatically reducing cost and influence on the environment.









Description:



1. Advantages of our production Line
1)High quality: Several patents, advanced design, all-around service, independent research team, and abundant experience in WPC.
2)Official certificate: ISO9001/ CE certificate
3)Long life time: Screws and machine barrels are made of high-quality materials and specially processed. The working life is up to 15,000 hours.
4)Advanced control system: The production process can (be assured) rely on PLC control system and Omron sensors.

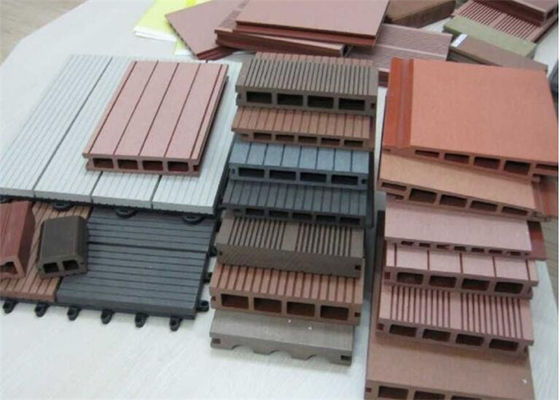

2. Extruding product characteristics:
1). Waterproof, anti-flaming, dampproof, rotproof, mothproof, light weight, keep temperature, sound and heat insulation and shockproof etc;
2). Color-way is not changed long time and not easy to aging under radiation resistance;
3). This product can be manufactured by general wood processing tools. It can be drilled, sawed, nailed and dig. It is the best substitute to raw wood, aluminum and composite product;
4). It can be welded as every general welding stipulation and also can be stick to other PVC materials.
5). It has smooth surface and is easy to print.









Specifications:



Model SJSZ51/105 SJSZ65/132 SJSZ80/156
Screw dia mm 51/105 65/132 80/156
Screw max. rotation speed r/min 40 34.7 38
Main extruder power KW 15 35 55
Barrel heating power KW 8 24 36
Central height mm 1000 1000 1000
Main products Frame, Door leaf, Batten Frame, Door leaf
Barrel heating and cooling China heater, Force cooling by air
Screw heating and cooling Oil









Competitive Advantage:



  • 24 hours services;
  • Overseas installation;
  • Free operation training and technology formula transfer;
  • Old machine update;
  • Spare parts and maintenance with reasonable cost price.

PVC WPC Wood Plastic Composite Extrusion Line for Window Profile Production
