Wood Composite Panel Board Wpc Profile Production Line With Double Screw

Wood Composite Panel Board Wpc Profile Production Line With Double Screw
Wood Composite Panel Board Wpc Profile Production Line With Double Screw Wood Composite Panel Board Wpc Profile Production Line With Double Screw Wood Composite Panel Board Wpc Profile Production Line With Double Screw Wood Composite Panel Board Wpc Profile Production Line With Double Screw

Large Image :  Wood Composite Panel Board Wpc Profile Production Line With Double Screw

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE UL CSA
Model Number: SJSZ65/132
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month

Wood Composite Panel Board Wpc Profile Production Line With Double Screw

Description
Name: Plastic Profile Machine Voltage: 380V 50HZ
Screw Design: Double Screw After-sales Service: Engineers Availiable To Service
Brand Name: Aorui Motor: Siemens
Temperature Controller: Omron Material: WPC
High Light:

WPC Extrusion Line

,

Wood Plastic Production Line

WPC Machine / Wood Composite Panel Production Line / WPC Profile Board Extrusion Machine





Quick detail:



Properties and advantages of WPC:


Novel material class ,developed for optimising properties of classical products,e.g.Improvement of mechanical material properties
Enhancement of possibilities for classical wood products by using extrusion process
Advantages through continuous production process Improvement of flow properties of thermoplastic material
Reduction of plastics part at the finished crticle to protect exhaustible raw materials
Use of renewable resources
Formulation with PE,Polyolefins or other thermoplastics







Description:



1. Rising energy costs and a growing ecological awareness are leading to consistent development of the the complete extruder design.
This development affects all energy relevant components and elements of the extruder and leads to a hightended overall efficiency of the unit.The relevant components include above all:
1.Motor and drive section
2.Barrel heating resp.Cooling
3.Screw temperature control
4.Optimizing the processing unit





Double cavity PVC wood plastic composite profile extrusion line, include auxiliary equipment such as sanding machine, embossing machine and brushing machine etc for PVC wood-plastic foamed and PE PP wood-plastic cold push extrusion process.;
special designed screw has excellent shearing and plasticizing effect, to ensure the quality of the products; high speed cooling of extrusion and calibration mold makes the production lineal speed faster and more efficient.

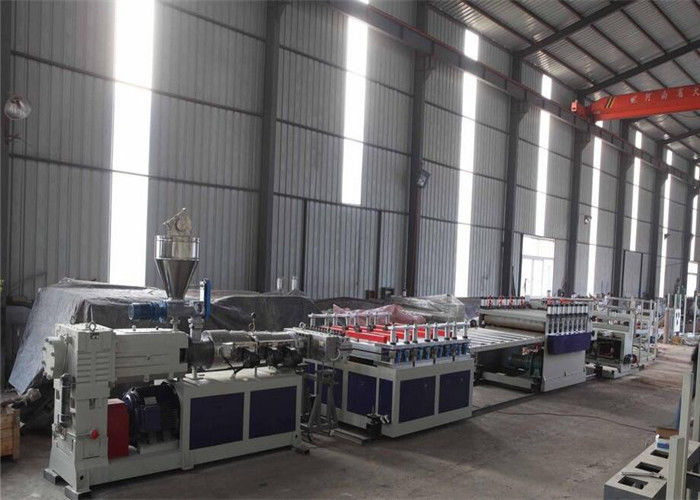

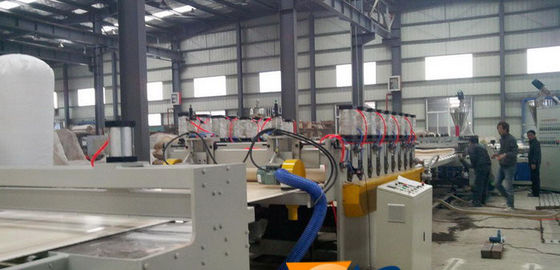

The unit consists of Conical (Parallel) double screw extruder-Wood plastic compostie profile tooling-Vacuum forming table-Haul-off machine-Cutting machine-Stacker-embossing machine-sanding machine-brushing machine
Producing Wood plastic compostie profile width: 240mm




Specifications:



Work flow and detailed information:
Feeder • To feed material into extruder;
Extruder • World famous brand electrical component such as Siemens,Schneider, ABB etc;
• High torque gearbox with adopts NSK/SKF bearing;
• Siemens/WEG original motor achieved global after service;
• Bimetallic screw and barrel;
• Intelligent PLC controlling system with human-friendly interface.
Die head • 3Cr13/3Cr17 material
•Complete set include extrusion die head, calibrator and cooling tank
• Apply to PVC wood-plastic foamed and PE PP wood-plastic cold push direct extrusion process
Vacuum calibration table • Include full set of vacuum and water pump
• Width: 240mm
• Length: 6000mm
• Independent operation panel for easy operation
Haul off • Upper and lower caterpillar is driven separately and speed control by frequency inverter
• Fast change type pads for easy operation
• Install plate is adopts aluminum material
• Compacting driving by pneumatic
Cutter • Tracking cutter or lifting saw cutter with adopts double station dust collection system
•Synchronous drivingby air cylinder or servo motor control
Stacker •Stainless steel304 as touching material
•Discharge driving by air cylinder
Embossing machine/Brushing machine/sanding machine/lamination machine/hot stamping machine • Surface treatment of final product









Competitive Advantage:





Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
