Product Details:
|
| Brand Name: | Aorui | Raw Material: | PE |
|---|---|---|---|
| Voltage: | 380V 50HZ | Certificate: | CE ISO9001 |
| After-sales Service: | Engineers Availiable To Service | Place Of Original: | Shandong , China |
| Application: | Plastic Pipe | Automatic Grade: | Fully Automatic |
| High Light: | plastic pipe extruder machine,plastic pipe production line |
||
Fully Automatic PE Single Screw Extruder Line / Production Line Plastic Pipe Making
PE Plastic Pipe Extrusion Line / Single Screw PE Pipe Production Line / Plastic Pipe Making Machine
Quick detail
This extrusion line has adopted the "accurate control of weak vacuum" and "high pressure volumetric extrusion" technology, which are initiated by our own team. It has reformed the shortage of traditional technology which cannot balance extrusion speed and precision control, especially when it is applied in engineering plastics tubes. It can meet the high precision extrusion control and achieve ideal production efficiency as well. In this way, it can greatly improves the customer’s value-in-use of machine and bring remarkable cost-reduction effect for the customers.
Description:
1. We could offer complete set high quality and reliable HDPE pipe production line from diameter 16 to 1200mm. The complete set production line includes below machines:

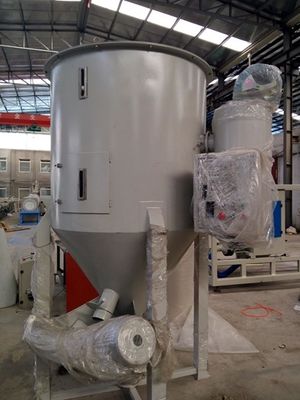

1. Color Mixer ( for raw material preparation)

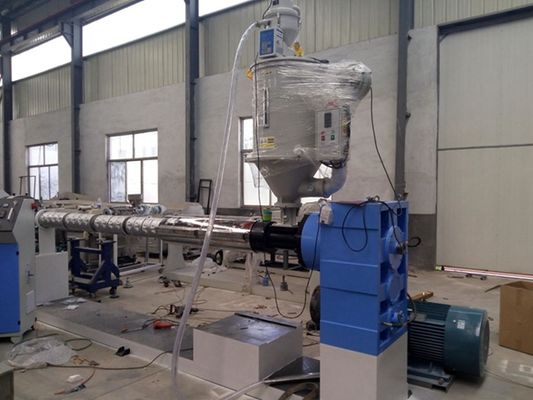

2. Single Screw Extruder

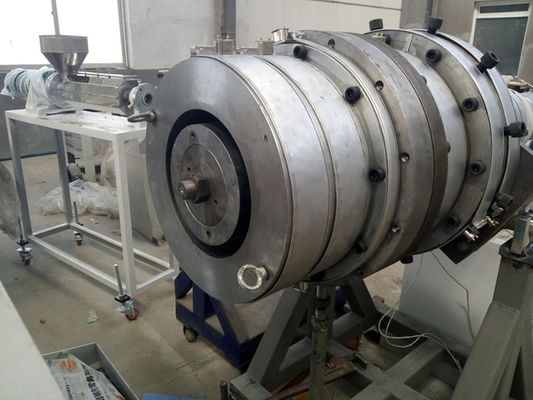

3. Extrusion Mold
4. Vacuum Tank
5. Cooling Tank
6. Haul Off Machine
7. Cutting Machine
8. Stacker ( for 110mm up to 1200mm)
9. Winding Machine ( for pipe diameter 16-63mm and 75-110mm)
10. Shredder and Crusher ( for waste pipe treatment, the recycled PE material could produce pipe again.)
2. 1)BM screw ensures high prevision, low energy consumption. Extruding is stable and capacity is big.
2)Vacuum cooling calibrator with two-grade, high speed and negative-pressure. Water temperature and
level can be auto-controlled. Spraying system with high intensity ensures the even cooling of pipes.

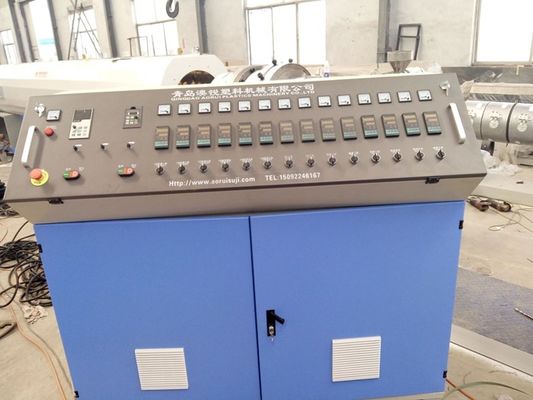

3)Caterpillar haul-off unit is linked with extruder and controlled by PLC. Hauling off speed is stable.
4)Cutter: Planetary cutter ensures low noise and strong scrap absorbing device ensures a clean working condition.
Main technical parameter of HDPE pipe production line/ PE Pipe extrusion line
| Model Specifications. | PPRG-63 | PPRG-110 |
| Produced Pipe Specification(mm) | φ20-φ63 | φ75-φ110 |
| Production Line Speed(m/min) | 0.5-8 | 0.3-2 |
| Total Power(kw) | 120 | 145 |
| Appearance Size(m) | 24×3×1.7 | 28×4×1 |
Why choose us:
experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology
Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.
After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.
