Product Details:
|
| Type: | Pipe Extruder | Plastic Processed: | PE |
|---|---|---|---|
| Automatic Grade: | Fully Automatic | Place Of Original: | Shandong , China |
| Screw Design: | Single Screw | Feed Model: | One Feeder |
| Frequency Control: | ABB | Temperature Controller: | Omron |
| High Light: | plastic pipe extruder machine,plastic pipe extrusion machine |
||
Water Plastic Pipe Extrusion Line , Pe Ppr Pp Plastic Pipe Extruder Making Machine
Plastic Water Pipe Extrusion Machine / PE PPR PP Plastic Pipe Extruder Making Machine
Quick detail
Product Feature:
1) Single screw extruder
adopts long L/D, high efficiency screw, high extrusion capacity, uniformed plasticization. Extruder and haul off machine motors adopt imported AC/DC inverter as speed regulators.
2) Pipe die head
Inner heating system, high efficient, easy extrusion. Bronze calibrators can make the pipes fast calibrated and cooled.

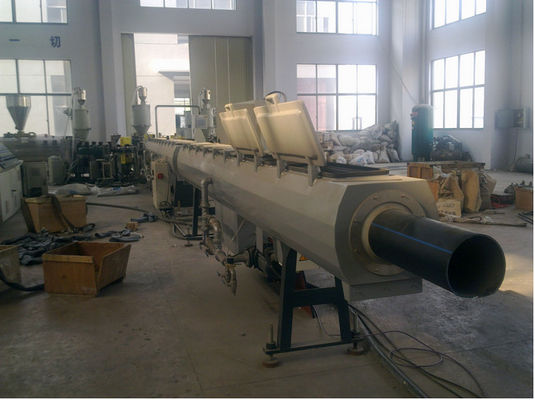

3) Vacuum calibrating tank and cooling tank
adopts advanced water circulation, high pressure cooling system, installed with vacuum degree adjusting device and automatic water temperature and water level controlling system.
4) Haul off machine
adopts caterpillar type: 2-claw, 3-claw, 4-claw, 6-claw, 8-claw, 10-claw etc, suitable for different sizes of pipes.
5) Cutting machine
Dust-free cutter or planetary cutter can be applied, accurate cutting, reliable property, high efficiency. ABB inverter, meter-counter or travel switch is adopted.
Description:
1. PE Water and Gas Plastic Pipe Production Line/pe plastic pipe production line/plastic pipe aking machine is mainly designed specially for polylefin, polythylene pipe processing and suitable for PE PP PB PPR pipe high-speed extrusion.It adopts rugged compact reducer,shielding type separation screw,slot barrel,basket type extrusion die etc,which ensure the users can make high quality plastic pipe.
2. Process flow

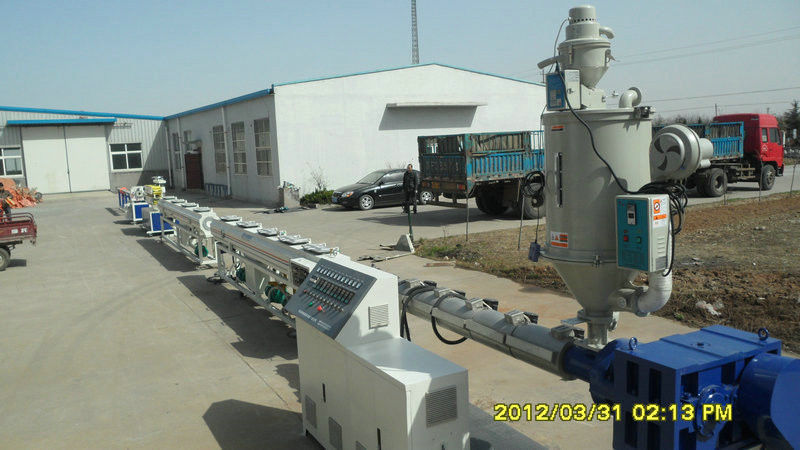

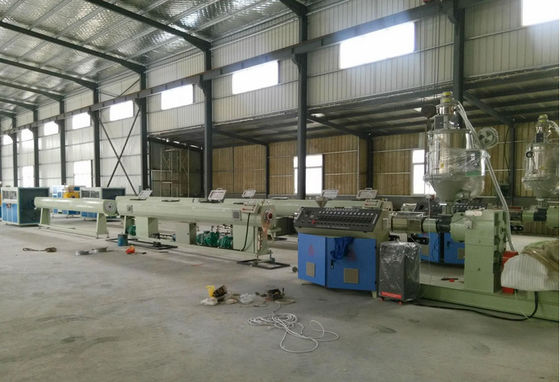

Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul off machine → cutting machine → discharging rack
Main technical parameter of HDPE pipe production line/ PE Pipe extrusion line
|
Model number
|
Pipe diameter (mm)
|
Max output (kg/hr)
|
Production rate (m/min)
|
Extruder model
|
Installation power
|
Layout dimension
|
|
PE16/63
|
16-63
|
150
|
1-15
|
SJ65/30
|
85kw
|
35x3x2m
|
|
PE20/110
|
20-110
|
200
|
1.2-12
|
SJ65/33
|
110kw
|
38x3.1x2.2m
|
|
PE50/160
|
50-160
|
350
|
0.6-8
|
SJ75/33
|
125kw
|
38x3.1x2.2m
|
|
PE75/250
|
75-250
|
350
|
0.5-4
|
SJ75/33
|
180kw
|
|
Why choose us:
Equipment warranty
1. About the equipment, Middle tech promised the good quality of 12 month.
2. during the warranty, no purposely and artificially damage change the damaged part, we will free
maintenance and technical services.
3. Over 12 months, Buyer's needs to pay the producing cost of the worn part, and life-long supply the part of equipment and freely device
