Product Details:
|
| Brand Name: | Aorui | Model Number: | SJSZ80/156 |
|---|---|---|---|
| Condition: | New | Certificate: | CE ISO9001 |
| Screw Number: | Two | Temperature Controller: | Omron |
| Motor: | Siemens | Raw Material: | PVC |
| High Light: | plastic sheet production line,plastic sheet extruder machine |
||

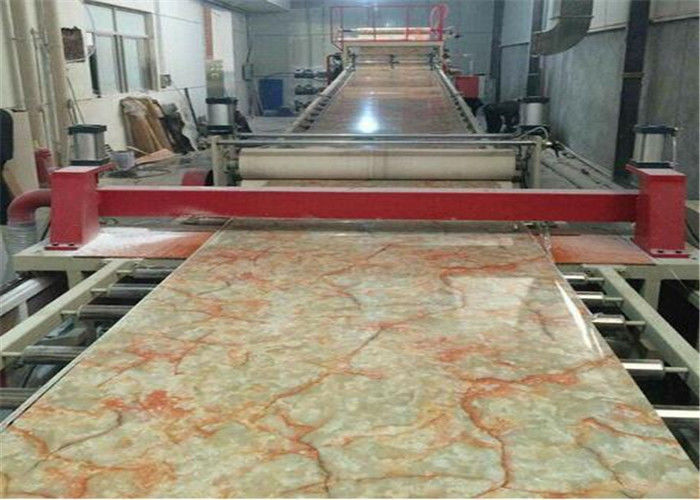

Faux Marble PVC Rigid Sheet Extrusion Line , Plastic Sheet Making Machine
Quick Detail:
PVC Artificial Marble Board Production Line is made and designed by our company through many years experience involving in manufacutrring PVC free foamed board production line and PVC Artificial Marble Board .
Description:

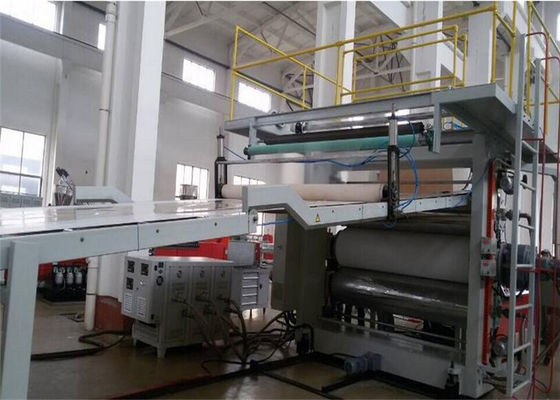

1.This production line is consist of mixer, sheet of mixer,automactic feeding system, conical twin screw extruder, sheet mold, three-roller calander,coolomg staker,haul-off machine, cutting machine, lamination device. This line has the features of compact structure, high performance. After special design, screw and barrel has the features of uniform plasticization, stable extrusion capacity, high output, long service time. Barrel adopts cast aluminum heating ring, fan cooling and precision temperature control system.Calander can adjust the sheet shape and keep product in good situation by precision design. Cutting machine has meter counting device, and cut the board in right with no error.
2. Advantages of pvc marble:
1)Environment protection,PVC marble is mainly made by PVC powder and Caco3 powder,it's environmental.Traditional stone marble has formaldehyde,toxic harmless also has radiocontamination.
2)PVC marble raw material is PVC powder and Caco3 powder,very cheaper than traditional stone marble.
Main Technical Parameters:
Project / Mod
|
Model
|
GSZ65/132-GF800
|
GSZ80/156-GF1200
|
GSZ92/188-GF1600
|
|
Thickness
|
0.2-8mm
|
0.2-25mm
|
0.3-36mm
|
|
Width
|
800mm
|
1220mm
|
1600kw
|
|
Main power
|
37KW
|
75KW
|
110KW
|
|
Product type
|
Blister sheets,decorative panels, edge banding, advertizing board,architectural plates
|
||
|
Capacity
|
200kg/h
|
400kg/h
|
800kg/h
|
Application:
PVC marble board is widely as widely used as decorative. As high quality decorative sheet, it use medium density PVC microlite as raw material, copy the marbling on the surface by UV photocuring technology. It looks like real marbie,has smooth surface, and high reflective rate.
Competitive Advantage:
1. PVC Marble Sheet Machine is high output
2. This machine is easy to operate
3. pvc marble sheet produced by this machine is widely used.
