Product Details:
|
| Product: | PVC Pipe | Warranty: | 1 Year |
|---|---|---|---|
| Automatic Grade: | Fully Automatic | Pipe Diameter: | 10-800mm |
| Pipe Color: | According To Customer's Requirements | Motor: | Siemens |
| Voltage: | 380V 50HZ | ||
| High Light: | plastic extruder machine,plastic production line |
||
380V 50hz Fiber Reinforced Hose Pvc Pipe Extrusion Machine Fully Automatic
High Quality PVC Fiber Reinforced Soft Pipe Extrusion Line / PVC Fiber Reinforced Hose Machine
Quick Details:

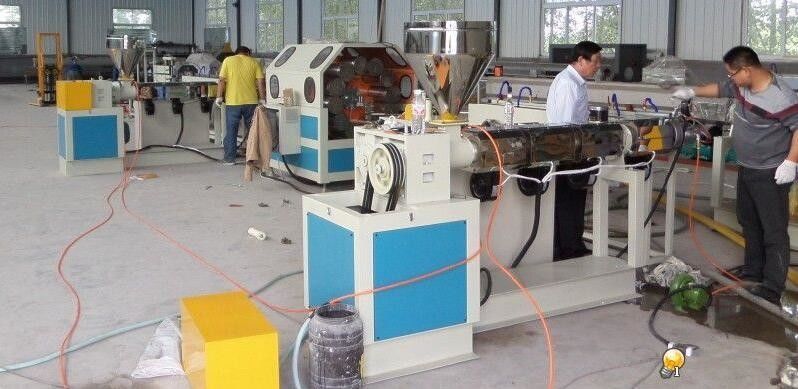

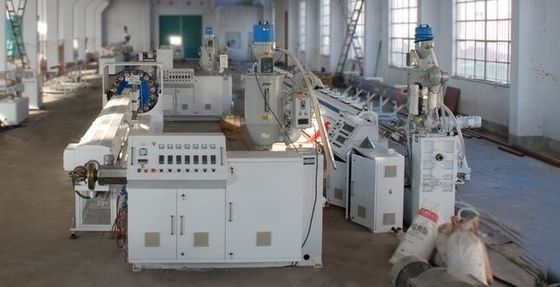

1. The PVC Fiber Reinforced Pipe Making Machine mainly including the SJSZ65/132 conical twin screw extruder. Mould(ordered as per ur requirement). SZGL-160 vacuum calibrating water trough. Tractor. Cutter. Stacker. Electric control device.
2. This line is designed to produce PVC fiber reinforced hose,the wall of pipe is three layers,outer and inner layer are soft PVC hose,middle layer is Terylene fiber network, which has good chemical and physical property,It is mainly used for the transportation of high pressure of corrosive gas,and is widely used in the machinery;coal mine,oil,chemical,agriculture irrigation, gas and building.
Description:
Equipment warranty
1. About the equipment, Middle tech promised the good quality of 12 month.
2. during the warranty, no purposely and artificially damage change the damaged part, we will free
maintenance and technical services.
3. Over 12 months, Buyer's needs to pay the producing cost of the worn part, and life-long supply the part of equipment and freely device
Applications:
This extrusion machine is used to produce PVC fiber hose, which has three layers, the outer and inner layer is made of soft PVC, middle layer is terylene fiber, which has good chemical and physical property. It is mainly used for the transportation of high pressure or corrosive gas, and is widely used in the machinery, coal mine, oil, chemical, agriculture irrigation and buildings.
Detail information of spiral wrapping band
| Model | SJ45 | SJ55 | SJ65 | SJ75 |
| Extruder | SJ45/30 | SJ55/30 | SJ65/28 | SJ75/30 |
| Diameter Range(mm) | Φ6-Φ16 | Φ8-Φ25 | Φ12-Φ50 | Φ20-Φ50 |
| Output(kg/h) | 20-40 | 30-60 | 40-80 | 60-110 |
| Installed Power(kw) | 35 | 42 | 50 | 65 |
Competitive Advantage:
1. High quality machine with CE ISO9001 Certificate
2. Good pre-sales and after-sales service .
3. We have exported to France Span Algeria Belgium Canda Mexico Chile Kazakhstan etc. All the customers are satisfied with our machinery.
4. Professional technician team to help you solve problems
