Product Details:
|
| Model Number: | SJSZ80/156 | Voltage: | 380V 50HZ |
|---|---|---|---|
| Automatic Grade: | Fully Automatic | Certificate: | CE ISO9001 |
| Application: | Profile | Trademark: | Aorui |
| Motor: | Siemens | Frequency Control: | ABB |
| High Light: | WPC Extrusion Line,Wood Plastic Production Line |
||

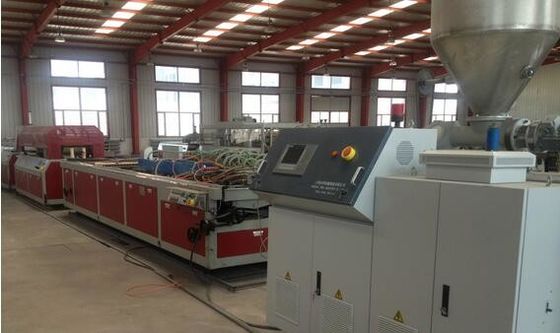

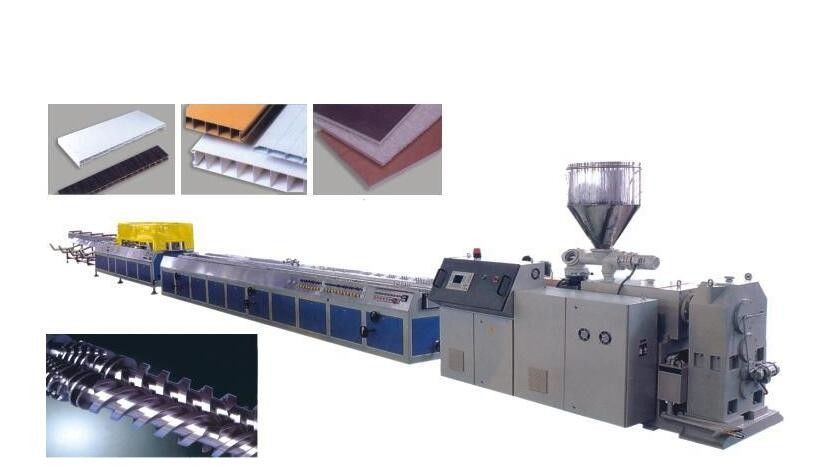

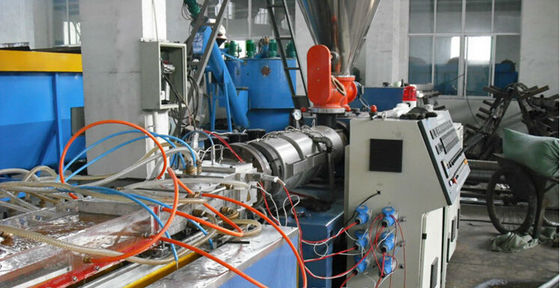

Wood Plastic Composite Profile Extruding Machine / WPC Flooring Panel Production Line
Quick detail:
The description of WPC plastic board extrusion line:
1. Suitable material: PP PE PVC with wood powder rice husk and other additives.
2. Machine compose of Conical twin screw extruder, extrusion mold, vacuum calibration device, caterpillars haul off machine, cutting machine and stacking machine.
3. Machien electrical parts: Use world famous brand product, Siemens AC motor, ABB Frequency speed governor.
4. Extruder capacity optional according to customer need.
5. Strong quality control and well after service.
Description:
1. As a new material to replace wood, wood plastic composite is widely used in fields of building decoration and outdoor building materials, such as edge and corner lines, fence of flowers nursery, skirting board, ceiling line, blind window, stair railing, decorative wall board, outdoor pavilion and so on. Most interior and exterior decorative building materials can be made by using wood plastic composite.
2. Particularly, wood plastic composite can be used in kitchen and washing room for its waterproof and fireproof functions which the raw wood does not have.
At present, wood plastic composite has already drawn extensive attention in the world and is praised as new material which will have board developing prospect.
3. Innovated design of heater tightened style insures high efficiency of heat transfer.
New-style gear transmission system:
1.New-style project of parallel three-axises driving makes the convey axis.
2.The key bearings are imported from WorldTop brand.
3.The compact design to optimize gear parameters and strengthen safe overmeasure.
4.Technics,strengthening of tooth face, ensure high torque,high precision and low noise
5. Spraying lubriation in drive comp dainty.
Specifications:
| Model | SJZ-45 | SJZ-51 | SJZ-55 | SJZ-65 | SJZ-80I | SJZ-80II | SJZ-92 |
| Screw diameter(mm) | 45/90 | 51/105 | 55/110 | 65/132 | 80/156 | 80/172 | 92/188 |
| Max. Rotational speed of screw(rpm) | 45 | 45 | 45 | 45 | 34.7 | 34.7 | 34.7 |
| Main motor(kw) | 15 | 18.5 | 22 | 30/37 | 55 | 81 | 110 |
| Capacity(kg/h) | 110 | 125 | 150 | 260 | 400 | 400 | 800 |
| Central height(mm) | 1000 | 1000 | 1000 | 1000 | 1100 | 1100 | 1200 |
| Net weight(kg) | 3000 | 3000 | 3500 | 4000 | 5500 | 5500 | 8000 |
| Dimension(L*W*H)(M) | 3.3*1.2*2.1 | 3.6*1.1*2.1 | 3.6*1.1*2.1 | 4.2*1.5*2.4 | 4.7*1.5*2.4 | 5.0*1.6*2.6 | 6*1.6*2.5 |
Competitive Advantage:
1) We give you suitable suggestions according to your actual need.
2) Technical support: long available life
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
