Product Details:
|
| Port: | Qingdao | Place Of Original: | Shandong , China |
|---|---|---|---|
| Certificate: | CE ISO9001 | Automatic Grade: | Fully Automatic |
| Screw&Barrel Material: | 38Cr MOAIA | Warranty: | 1 Year |
| Temeprature Controller: | Omron | Motor: | Siemens |
| High Light: | Plastic Pelletizing Machine,Plastic Granulating Machine |
||
PP PE PET Flakes Recycling Washing Granulating Production Line / PP PE Film Granules Making Machine
QUICK DETAIL:
1. Applicable plastic materials:PP,HDPE,LDPE,LLDPE,etc.
Material shapes:Film,bag and flake
Material types:pe bag,printed LDPE film,film (rolls,loose,bundles),agricultural film waste,foamed plastics(EPS) and raffia.
Note:Depending on material property,various downstream equipment are available
Characteristics

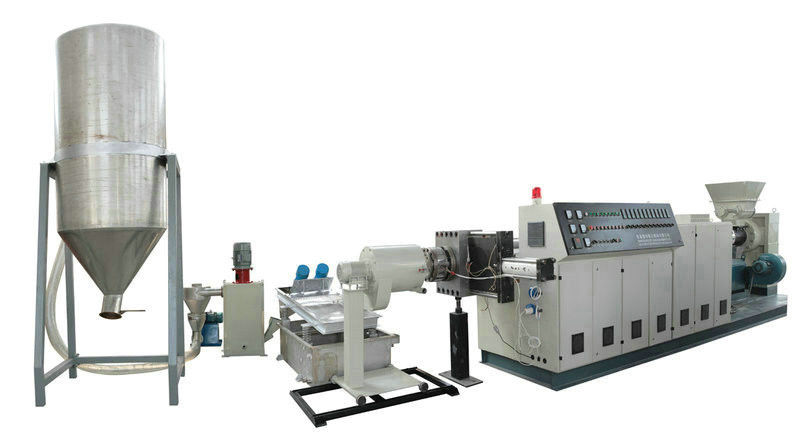

This production line is composed of special designed agglomerator, single-screw extruder, screen changer, dryer, vibrator and packing system, etc.
1. Greatly increase output
2. Continuous production
3. Flexible pelletizing style
Description:
Specifications of Plastic Recycling Machine for PE Granules Making
| Model Name | with hard material feeder |
| Recycling Material | film & flakes of HDPE, LDPE, LLDPE, PP, BOPP, CPP, OPP, PA, PC, PS, PU, EPS |
| Final Product Shape | Pellets/Granules |
| System Composition | Belt conveyor, cutting compactor, single screw extruder, pelletizing device, water cooling unit, dewatering section, conveying blower and production silo |
| Output Range | 200kg/h-350kg/h |
| Feeding Device | Belt conveyor (standard), hard material feeding port(optional), Rolls hauling off device (Optional), |
| Compactor Volume | 300 Liters |
| Screw Diameter | 100mm |
| Screw material | 38CrMoAlA nitride steel( SACM-645), bimetallic(Optional) |
| Screw L/D | 28/1, 32/1, 33/1, 36/1,40:1 (depending on features of recycles) |
| Barrel's Heating | Ceramic heater or Casting Aluminum heater |
| Barrel's Cooling | Air cooling through fan blowers |
| Vacuum Degassing | Double vented degassing (Standard) |
| Pelletizing Type | Water ring die-face hot pelletizing |
| Voltage Standard | Depending on project's location |
| Optional Devices | Metal detector, rolls hauling off device, micro feeder for masterbatch, additives, chiller, etc. |
| Delivery Time | 50 days after order takes effect. |
| Warranty | 13 months since date of bill of lading |
| Technical Service | Project design, suggestion on factory construction, installation and commissioning |
Our company competitive advantages:
1) We give you suitable suggestions according to your actual need.
2) Technical support: long available life
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
