Product Details:
|
| Machine Type: | Profile Machine | Plastic Processed: | PVC WPC |
|---|---|---|---|
| Condition: | New | Original: | Shandong , China |
| Port: | Qingdao | Delivery Time: | 35 Days |
| Inverter: | ABB | Screw Design: | Double Screw |
| High Light: | wood plastic composite extrusion machine,wood plastic machine |
||

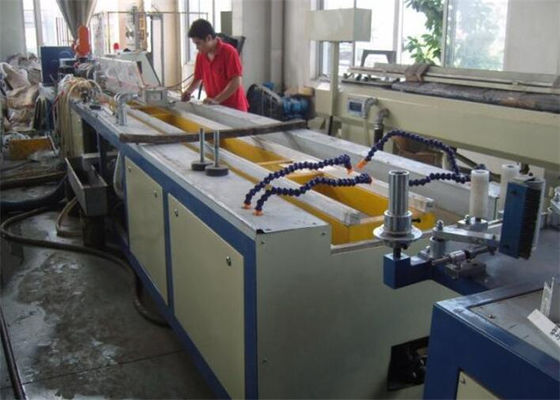

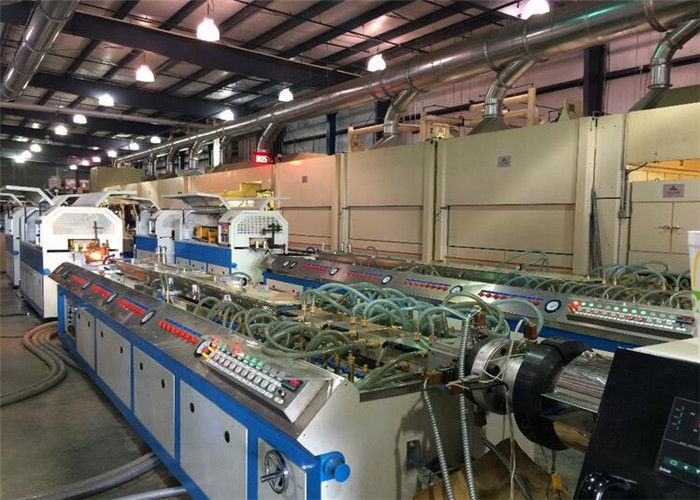

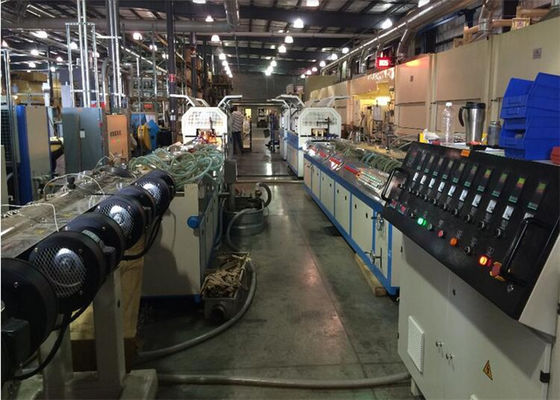

PVC WPC Wood Plastic Foam Profile Production Line / WPC Plastic Profile Extrusion Line For Window
Quick detail:
1. pe/pp/pvc wpc wood plastic foam profile extrusion line
COOWIN series conical twin screw extruder is a highly efficient agglomeration and extruding equipment. Machines of this series feature low shearing rate, uneasy degradation,even plastication and agglomeration, reliable quality,wide application range and long servicing life.
2. Using PE powder as raw material for a direct forming, the exturders perform an excellent effectiveness. These machines have automatic temperature control, vacuum gas exhaustion, oil cooled screws, stepless speed regulation, as well as a forced and self-cleaning mechanism.
Description:
1. This production line is designed for extrusion of wood plastic door and window profiles and cross-section communication cable pipes, Aluminum-plastic composite profiles, etc. It has stable plastification, high output, low sheering force, long life service and other advantages. wpc profiles can be used in the building industry and home or office.
2. The production line consists of control system, conical twin screw extruder, extrusion die, calibration unit, haul-off unit, film covering machine and stacker. The extruder is equipped with alternating-current converter, imported temperature controllers.
3. The woode plastic panel out from our line has features of green environment protection, damp proof, antisepticise and not distortion, thus suitable for processing method of wood and can be recycled to reuse. It has been widely used in wide door, partition panel, construction template, base plate of container, furnish panel, etc.
Specifications:
| Max. profile width(mm) | Extruder model | Designed capacity(kg/h) | Extruder motor power(kw) |
| 180 | 51/105 or 55/110 | 80-120/120-150 | 18.5/22 |
| 240 | 65/132 | 175-250 | 37 |
| 300 | 65/132 | 175-250 | 37 |
| 400 | 65/132 or 80/156 | 175-250/250-350 | 37/55 |
| 600 | 65/132 or 80/156 | 175-250/250-350 | 37/55 |
| 800 | 80/156 | 280-350 | 55 |
Company advantages:
experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology
Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.
After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.
