Product Details:
|
| Brand Name: | Aorui | Model Number: | SJ90/33 |
|---|---|---|---|
| Condition: | New | After-sales Service: | Engineers Availiable To Service |
| Material: | Pp Pe | Automatic Grade: | Fully Automatic |
| Product Type: | Pipe | ||
| High Light: | plastic pipe extruder machine,plastic pipe extrusion machine |
||
PE HDPE Water Pipe Extrusion Line / PE Water Pipe Extruder Machinery / Pipe Production Line
Quick detail:
1. This PE pipe extrusion line is developed by Aorui based on the European technology and R&D experience of the plastic machinery. It has advanced design, reasonable structure, good reliability, high degree of automation of the complete line.
2. Extruder with special barrel feeding structure can largely improve extrusion capacity.
Accurate temperature control, good plasticization and automation.
Human-computer interface is easy to operate, convenient and reliable.
Spiral and lattice basket type die head for choice.
Dust-free knife cutter and saw cutter for choice.
Changing some parts of the line can also realize two-layer and multi-layer co-extrusion.
Changing some parts of the line can also produce PP, PB pipes.
Description:
1. PE water/Drainage/gas Plastic pipe extruder machine is mainly used to produce the PE water supply pipe, drainage pipe and gas pipe.

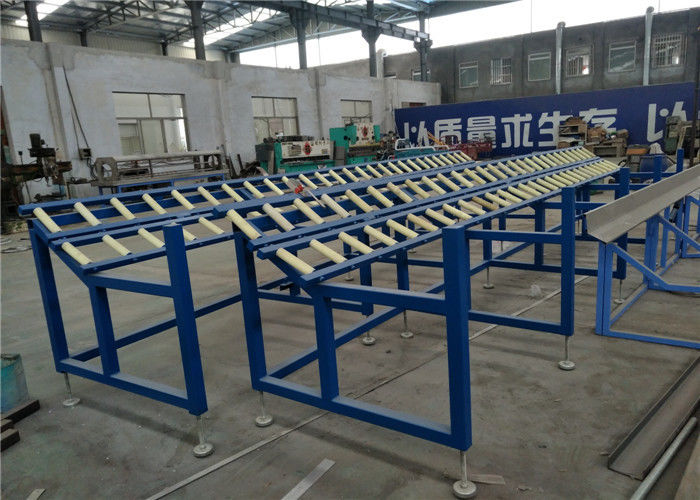

2. The unit consists of single extruder machine, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless/non-dust cutter) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high-grade tubing.

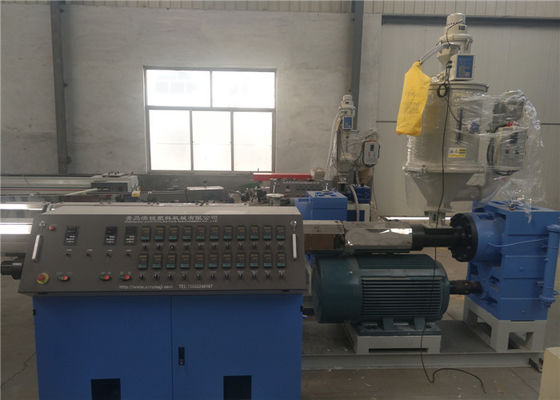

3. Single-screw extruder:Using a long L / D, efficient screw extruder high-capacity, high plasticizing capacity.Extruder and hauling machine motor adopts imported AC / DC converter speed regulator.

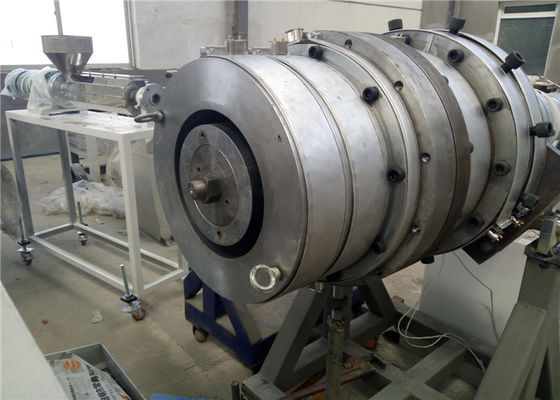

4. Extrusion die: its spiral, good calibration, make good quality pipe production.
Internal heating system, high efficiency, easy to squeeze. Bronze calibrator for fast calibration and cooling ducts.

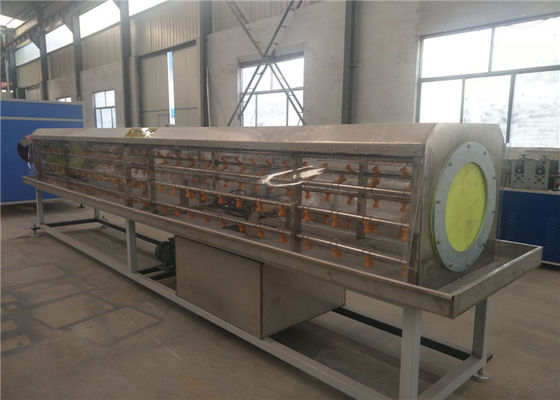

5.Vacuum calibration water tank and water spray cooling tank: using advanced water circulation and high pressure cooling system, vacuum degree adjusting device and automatic temperature and water level control system installation.
Specifications:
| Extruder | Main motor(KW) | Pipe range (mm) | Capacity(kg/h) |
| SJ65/33 | 45-55 | 16-110 | 80-150 |
| SJ75/33 | 90-110 | 90-250 | 200-300 |
| SJ90/33 | 160 | 160-315 | 450-500 |
Competitive Advantage:
