Product Details:
|
| Model Number: | SJ90/33 | Place Of Original: | Shandong , China |
|---|---|---|---|
| Condition: | New | Automatic Grade: | Fully Automatic |
| After-sales Service: | Enginers Availiable To Service | Screw Design: | Single Screw |
| Application: | Plastic Pipe | ||
| High Light: | plastic pipe extruder machine,plastic pipe production line |
||
High Capacity PE PP PPR Plastic Pipe Extrusion Line / PE Water Gas Transportation Extruder Machine
Quick detail:
1. Description
This extrusion line is suitable for producing all kinds of PE/PPR pipes. We can offer whole set pipe production line from diameter 16 to 1200 mm.
2. Application:
pure water, drinking water pipeline;
industrial water and chemical transport, emissions;
domestic hot and cold water pipe system;
beverage, drug delivery systems of production;
compressed air pipe;
other industrial, agricultural management
Description:

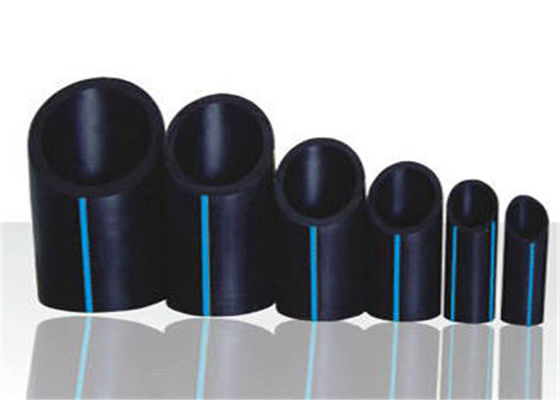

1. PE water pipe machine/Plastic pipe extruder machine is mainly used to produce the PE water supply pipe, drainage pipe and gas pipe.

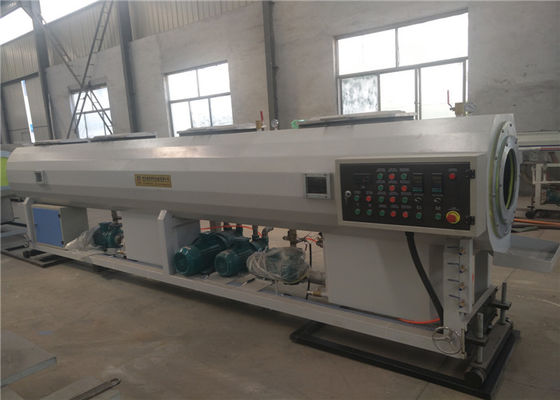

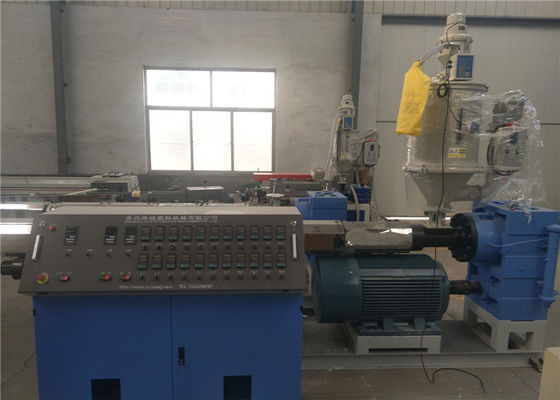

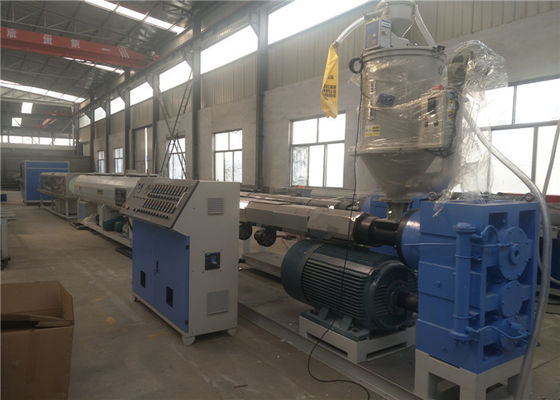

2. The unit consists of single extruder machine, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless/non-dust cutter) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high-grade tubing.
3. The extrusion line comprise equipments and devices as below,
1set Vacuum loader
1set Hopper dryer
2set High-effeciency single screw extruder
1set 25/25 single screw extruder for mark line
1set Vacuum calibration table
1set Water spraying tank
1set Hauling machine
1set Cutting machine
1set Stacker
Specifications:
| Pipe Diameter(mm) | 16-63 | 32-125 | 75-250 | 110-450 | 315-630 | 315-800 | |
| Extruder | 45/33 | 75/33 | 60 | 60/38 75/33 |
75/38 90/33 |
90/38 120/33 |
105/38 150/33 |
| Strand | single strand | double strand | single strand | single strand | single strand | single strand | single strand |
| Downstream equipment | LG63 | SLG63 | LG125 | LG250 | LG450 | ||
| Total power(KB) | 70 | 125 | 150 | 230 | 380 | 550 | 800 |
Competitive Advantage:
1. Rich experience
2. Good quality
3. CE ISO9001 certificate
