Product Details:
|
| Brand Name: | Aorui | Warranty: | 1 Year |
|---|---|---|---|
| Condition: | New | Application: | PE Pipe |
| Certificate: | CE ISO9001 | Original: | Shandong |
| Motor: | Siemens | ||
| High Light: | plastic pipe extruder machine,plastic pipe extrusion machine |
||
Water Drainage Pipe Extrusion Line , Single Screw Plastic Pipe Production line / PE Pipe Making Machine
Quick detail:
Product Feature:
1) Single screw extruder
adopts long L/D, high efficiency screw, high extrusion capacity, uniformed plasticization. Extruder and haul off machine motors adopt imported AC/DC inverter as speed regulators.
2) Pipe die head
Inner heating system, high efficient, easy extrusion. Bronze calibrators can make the pipes fast calibrated and cooled.
3) Vacuum calibrating tank and cooling tank
adopts advanced water circulation, high pressure cooling system, installed with vacuum degree adjusting device and automatic water temperature and water level controlling system.

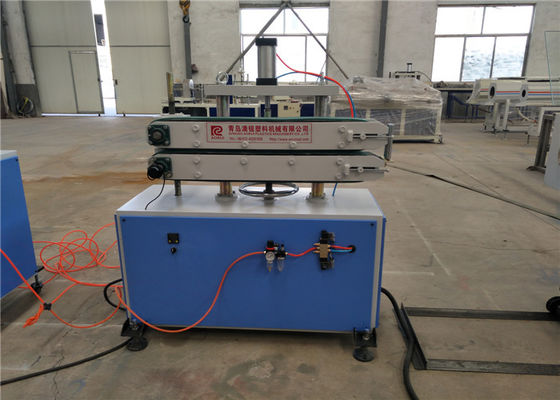

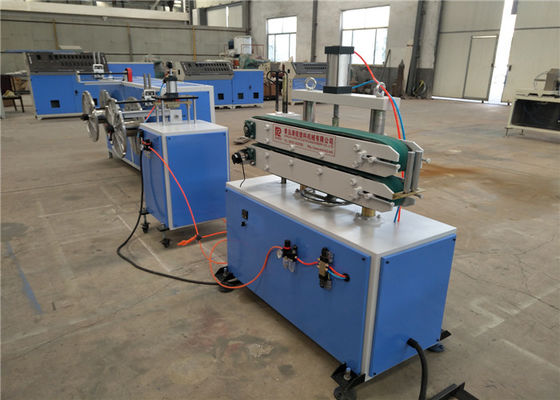

4) Haul off machine
adopts caterpillar type: 2-claw, 3-claw, 4-claw, 6-claw, 8-claw, 10-claw etc, suitable for different sizes of pipes.
5) Cutting machine
Dust-free cutter or planetary cutter can be applied, accurate cutting, reliable property, high efficiency. ABB inverter, meter-counter or travel switch is adopted.
Description:
1. Plastic HDPE water/drainage pipe extruder is mainly used to produce the PE water supply pipe, drainage pipe and gas pipe.
2. The unit consists of single extruder machine, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless/non-dust cutter) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high-grade tubing.
3. The screw of the extruder is equipped with barrier unit and mixing structure,and the barrel owns new style grooves.All of these offer good plastification and mixing effect.Special design of basket die head for HDPE(PP,ABS)large diameter pipe with thick wall offer lower melting temperature,good mixing,lower pressure of caavity,and stable production.
4. Special design for sizing and cooling system by using film and water ring to cool HDPE(PP,ABS) material,which can fit for the requirement of HDPE(PP,ABS).
5. The whole production line adopts PLC performance control system,which makes the operation convenient.This line can be equipped with co-extruder for extruding color strip.
Specifications:
| Pipe Diameter(mm) | 16-63 | 32-125 | 75-250 | 110-450 | 315-630 | 315-800 | |
| Extruder | 45/33 | 75/33 | 60 | 60/38 75/33 |
75/38 90/33 |
90/38 120/33 |
105/38 150/33 |
| Strand | single strand | double strand | single strand | single strand | single strand | single strand | single strand |
| Downstream equipment | LG63 | SLG63 | LG125 | LG250 | LG450 | ||
| Total power(KB) | 70 | 125 | 150 | 230 | 380 | 550 | 800 |
Competitive Advantage:
1) We give you suitable suggestions according to your actual need.
2) Technical support: long available life
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
