Product Details:
|
| Brand Name: | Aorui | Place Of Original: | Shandong , China |
|---|---|---|---|
| Port: | Qingdao | Certificate: | CE ISO9001 |
| Automatic Grade: | Fully Automatic | After-sales Service: | Engineers Avaliable To Service |
| Condition: | New | Screw Design: | Single Screw |
| High Light: | Strapping Band Making Machine,Strap Making Machine |
||

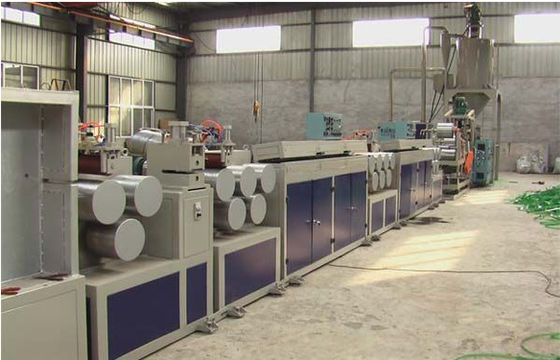

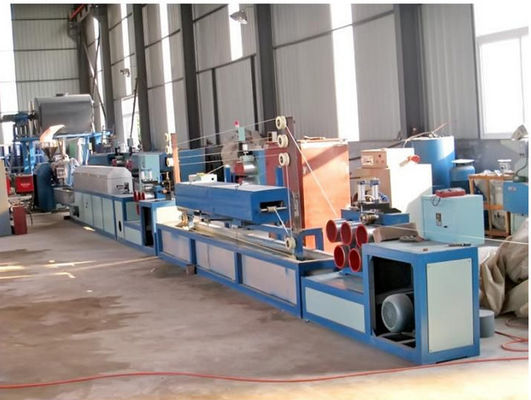

PP Strap Band Extrusion Line , High output PP Packing Band Belt Machine , Plastic Strap Band Machine
Quick detail:
Features of PP Strap Extruder
Production Features:
1. comply with strict safety standards, precision manufacturing processes can make the life of the production line longer.
2. From the materials handling, extrusion, stretching, embossing, cooling and winding, every step to ensure the use of advanced manufacturing technology packaged with quality.
3. advanced operating system, you can control the entire production line through the touch screen.
The production speed of up to 120 m / min, low waste
4. The single, double bars, four, six can be arbitrarily chosen
Description:
1. PP strap production line is used to produce mechanical or manual bands with 100% PP recycled granules as materials, if raw materials, it will be better. This kind of band is widely used in the packing of kinds of fields such as mines, general merchandise, weaving, electrical equipment, apparatus, architecture, medicine, etc.
2. This line is specially designed for the production of PP Straps. It can produce 2 PP Straps at the same time that saves energy by 20%-30%;
3. Both the Shaping Water Tank and Calibrating Tank are made of stainless steel that the tanks are long-lived;
4. PLC Controller by touching keys with alternative languages, which is safe and easy to operate that keeps good status of all part and ensures the stable performance of whole line and continuous production of PP Straps.
Technological parameter:
| Model | SJ-65 | SJ-75 | SJ-90 |
| Extruder | SJ-65/30 | SJ-75/33 | SJ-90/33 |
| Productivity | 60-100kg/h | 80-120kg/h | 120-150kg/h |
| Drive Motor | 22kw | 30kw | 55kw |
| Two-station Winder | 60-120m/min,adjustable | ||
| Strap Size | Width:5mm-20mm | Width:10mm-25mm | Width:20mm-35mm |
| Thickness:0.36mm-1.0mm | Thickness:0.5mm-1.3mm | Thickness:0.5mm-1.8mm | |
| Installed Capacity | about80kw | about 90kw | about110kw |
| Line Dimension | 30m×2m×2.2m (L×W×H) | 30m×3m×4.5m (L×W×H) | 30m×5m×6m (L×W× |
Our company competitive advantages:
1) We give you suitable suggestions according to your actual need.
2) Technical support: long available life
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
