Product Details:
|
| Brand Name: | Aorui | Name: | Strap Band Machine |
|---|---|---|---|
| After-sales Service: | Engineers Availiable To Service | Voltage: | 380V 50HZ |
| Automatic Grde: | Fully Automatic | Automatic Grade: | Fully Automatic |
| Condition: | New | ||
| High Light: | Strapping Band Making Machine,Strap Making Machine |
||

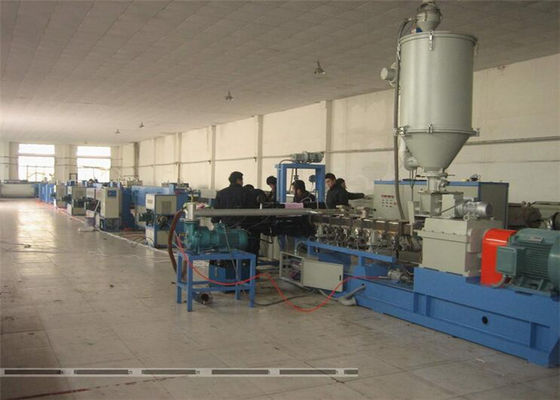

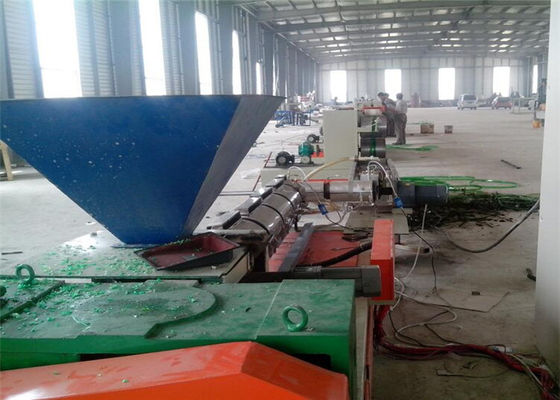

Plastic Strapping Band Machine / PET Strapping Band Production Line / Strappinmg Belt Machinery
Quick detail:
1. This production line is used to product the pet packing band,pet packing strap;adopt the plc control the whole line do the auotmatic production,it use the melting pump and pressure sensor ensure the production stable and strap quality control the raw material you can use is 100% recycled pet flakes from the waste pet bottles,or virgin material or mixed with each other.
2. Single screw or double screw technique for option denpending on the requirement. 100% recycled flakes can be used for production. Even plasticization and stable extrusion with PC automatic control for the full line. The dosing pump ensures continuous and stable production. The filter of double columns with four working positions can get rid of impurity effectively.
Description:
1. Raw material: PET recycled flakes or PET original flakes
Products model:
Width: 9mm-25mm
Thickness: 0.5mm-1.2mm
Capacity: 1T-2T/Day(24 hours)
Total power: 120kw-160kw (380V, 50Hz)

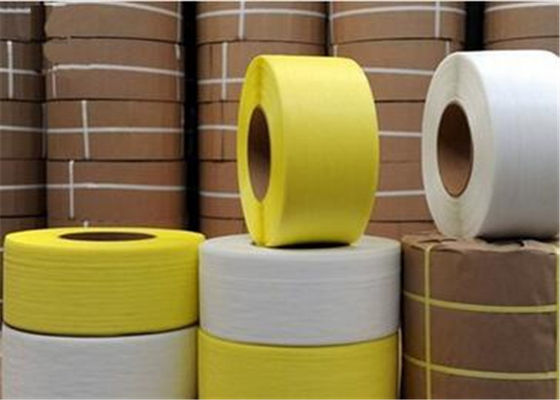

2. PET strap machine Applications:
PET packing strap is widely used, replaced for steel strap for packing application internationally, because of its good tensile strength, flexible, low prolongation rate, good performance of high temperature resistant, non-rustiness, and low use-cost, etc, it is used in steel, construction material, chemical fiber, paper making, tobacco, agriculture, election, etc.
Technological parameter:
| Model | Capcity (kg/h) | Strap Size | Power(kw) | Manpower | Area(m) |
| SJ65/33 Single | 50-60 | 9-19mm | 85 | 1-2 | 35×4×5 |
| SJ75/33 Single | 80-100 | 9-19mm | 100 | 1-2 | 38×4×6 |
| SJ75/33 Duble | 80-120 | 9-19mm | 110 | 1-2 | 40×4×6 |
| SJ90/33 Double | 120-150 | 9-19mm | 150 | 1-2 | 45×5×7 |
| SJ120/33 Double | 150-200 | 9-19mm | 220 | 1-2 | 45×5×7 |
Our company competitive advantages:
Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
