Product Details:
|
| Certification: | CE & ISO9001 | Condtion: | New |
|---|---|---|---|
| Screw Design: | Single Screw | Voltage: | 380V 50HZ |
| Color: | Bule Or According To Customer's Requirement | Automatic Grade: | Fully Automatic |
| After-sales Service: | Engineers Availiable To Service | Application: | Pipe |
| High Light: | plastic pipe extruder machine,plastic pipe production line |
||
Plastic Single Screw Pipe Extruder , Plastic PE Water Pipe Making Machine , PE PPR Pipe Production Line
Quick detail
1. PPR/HDPE plastic pipe extrusion machine/PE production making machine/line
*Simple structure in linear type ,easy in installation and maintation.
*Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
*Running in a high automatization and intellectualization
*Apply a linker to connect with the screw loader ,which can directly inline with filling machine .

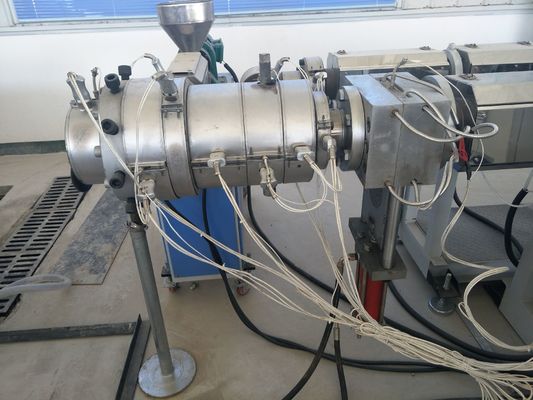

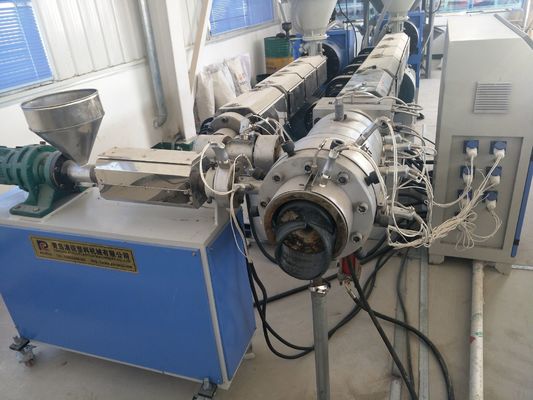

2. Special single screw extruder for polyolefin, having high extruding velocity and effective plasticization. Separation mixing screw specialized for polyolefin. Specially designed 2-3 co-extruding die, reasonable channel , smooth outside and inside wall , and little internal stress.
Description:
1. Process flow:

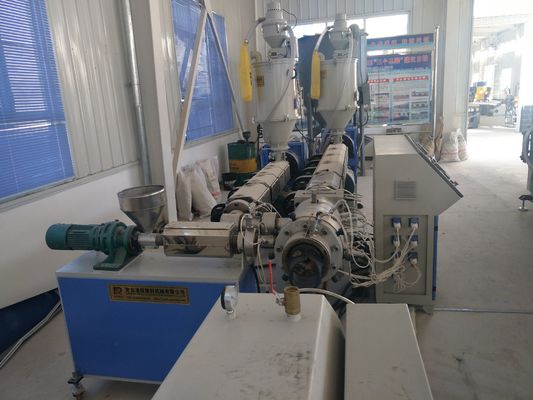

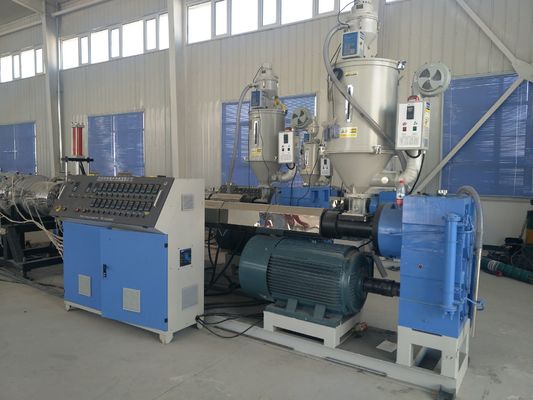

Plastic automatic charger→Hopper plastic dryer→Single screw extruder→Mould and calibrator→ Vacuum forming machine→Haul off machine→Cutting machine→Discharging rack
2. Peoducing pipe limit 20-160mm , manufacture velocity up to 15m/min. May be used to produce HDPE silicon core tube , ordinary PP-R, PE, PEX , and PE-RT pipes.
3. Use vacuum loader to put ppr and hdpe guanule into extruder for processing.
- The vacuum loader is used for transmit both powder and guranule material.
- Concentrated raw material feeding system which can ensure long distant materail transmission.
- The vacuum loader is also suitable for feeding material into mixer unit. with extra chemical materail weight system.
Main technical parameter of HDPE pipe production line/ PE Pipe extrusion line
| Model | PE63 | PE160 | PE315 | PE400 | PE500 | PE630 |
| Produced Pipe Specification(mm) | 16-63 | 75-160 | 110350 | 110-400 | 160-500 | 200-630 |
| Calibration length(mm) | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 |
| Degree of vacuum(Mpa) | -0.030.08 | -0.030.08 | -0.030.08 | -0.030.08 | -0.030.08 | -0.030.08 |
| Max hauling force(N) | 10000 | 15000 | 20000 | 25000 | 30000 | 50000 |
| Max Hauling speed(m/min) | 10 | 6 | 4 | 3 | 2 | 1.4 |
| Effective hauling length(mm) | 1000 | 1500 | 1500 | 1500 | 1800 | 1600 |
| Compressed air consumption(m3/h) | 0.4 | 0.6 | 1.0 | 1.2 | 1.5 | 2.0 |
| Refilled water volume(m3/h) | 5 | 6 | 7 | 8 | 9 | 12 |
| Line length(m) | 20 | 22 | 30 | 30 | 36 | 42 |
Application:
It is mainly used to produce PE water pipe, gas pipe, drain pipe and so on. This set is also suitable for the production of crosslinked PE pipes and other olefine products. Our company can provide you with detailed ingredients and complete manufacture line.
Why choose us:
we have more than 15 years experiences in this field.
we are factory , customers can go to our factory to see the machine
we have CE&ISO9001 certificate
We are a professional manufacturer of plastic machinery in China
our engineers can go to aborad to install the machine and trainning the workers.
