Product Details:
|
| Brand Name: | Aorui | Certificate: | CE ISO9001 |
|---|---|---|---|
| Automatic Grade: | Fully Automatic | Screw Design: | Single Screw |
| After-sales Service: | Engineers Availiable To Service | Condition: | New |
| Temperature Controller: | Omron | Motor: | Siemens |
| High Light: | plastic pipe extrusion machine,plastic pipe production line |
||

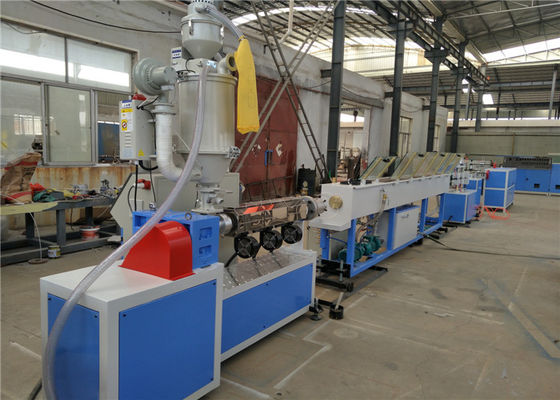

PE Single Screw Pipe Extruder Machine / PE PPR Cool and Hot Water Pipe Production Line
Quick detail
1. This extrusion line is suitable for producing all kinds of PE/PPR pipes. We can offer whole set pipe production line from diameter 16 to 1200 mm.
2. Applications
1. Water supply and drainage pipe in building;
2. Rainwater drainage pipe in building;
3. Electrical wiring pipe in building;
4. Air conditioning condensate water systems.
Description:
1. The pipes produced by our line have excellent stiffness and flexibility, resistance to creep deformation, excellent heat-linkage. Large diameter HDPE pipes start to play very important role in the city water and gas supply systems.
2. The die head is the latest designed lattice type or spiral diffluence type, it features in easy adjustment and even extrusion. The calibration unit adopts the special slotted technology and it is cooled down by the water ring, so that the pipe can be precisely made. The electrical control parts, equipped with PLC module and LC, features in perfect alarm system, friendly human-machine interface and easy operation.
3. The screw of the extruder is equipped with barrier unit and mixing structure,and the barrel owns new style grooves.All of these offer good plastification and mixing effect.Special design of basket die head for HDPE(PP,ABS)large diameter pipe with thick wall offer lower melting temperature,good mixing,lower pressure of caavity,and stable production.
Main technical parameter of HDPE pipe production line/ PE Pipe extrusion line
| Modle | SJ-180 | SJ-125 | SJ-80 |
| Pipe diametre | Φ50-Φ180 | Φ20-Φ180 | Φ60-Φ180 |
| vacuum pressure | 0.04MPa | 0.04MPa | 0.04MPa |
| Sizing box's specfication | 460*460*1200mm | 380*380*1200mm | 320*320*1000mm |

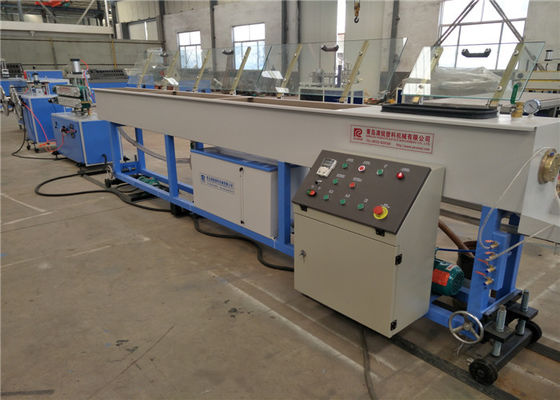

| Cooling box's specfication | 460*460*3000mm | 380*380*2400mm | 320*320*2000mm |
| Cooling method | Circulating water spray | Circulating water spray | Circulating water spray |
| Traction power | 5.5KW | 5.3KW | 1.5KW |
| Traction speed | 0.2-3m/min | 02-4m/min | 0.2-4m/min |
| Cutting method | Automatic tracking saw blade cutting | Automatic tracking saw blade cutting | Automatic tracking saw blade cutting |
| Flip stacking method | Automatic fixed length gas control | Automatic fixed length gas control | Automatic fixed length gas control |
Why choose us:
CE ISO9001 Certificate
Good after-sales service
We are factory
