Product Details:
|
| Port: | Qingdao | Raw Material: | Pe |
|---|---|---|---|
| Voltage: | 380V 50HZ | Delivery Time: | 35 Days |
| Warranty: | 1 Year | Temeprature Controller: | Omron |
| Condition: | New | Motor: | Siemens |
| High Light: | plastic pipe extruder machine,plastic pipe extrusion machine |
||
PE Plastic Pipe Tube Making Machine , Plastic Pe Water Pipe Extrusion Machine
Quick detail:
1. The HDPE PE Pipe Extrusion Line research & developed by our company has such features of unique structure, easily control, highly automation and stable performance.
2. Pipes produced by this machine has the moderate rigidity, strength, as well as good flexibility, anti-rot, anti-stress split, and favorable hot melting, make this large diameter pipe considered as the prefer product for water and gas transportation system in cities.
3. 30m/min of maximum lineal extrusion speed, big capacity and low power consumption, and achieved multi- layers co extrusion with 1-5 layers.
Description:
1.Production flow
Raw material+agency----------mixing---loader-----force feeding-------extrusion------------extrusion mould-vacuum forming tank---spray cooling tank-oil printer---haul-off---cutter----stacker
2.The copper bush is more wear-resisting and prevent material leakage which can guarantee a stable running of extruder.
3.Unique design (barrier, shearing and mixing zone) guarantees a uniformed plasticizing effect, and can reduce the pressure on the screw which guarantees a high speed and stable output capacity.
Specification of machine:
| Model NO. | TDG-II |
| Dimension | (L)30M*(W)4M*(H)2.5M |
| Weight | 4.8T |
| Installation power | 125KW |
| Operation power | 60---70KW |
| Voltage | 380V |
| Diameter | 12mm,16mm |
| Wall thickness | 0.15---0.6mm |
| Dripper distance | 100---500mm |
| Production speed | 80---150meters/minute |
| Continuous strip rolling speed | 150meters/minute |
| Punching speed | 750 holes/minute |
| Haul-off speed | 20---200meters/minute |
| Packing | 500--2500meters/coil |
| Punching method | mechanized |
| Winding speed | 20---200meters/minute |
Main technical parameter of HDPE pipe production line/ PE Pipe extrusion line:
| Modle | SJ-180 | SJ-125 | SJ-80 |
| Pipe diametre | Φ50-Φ180 | Φ20-Φ180 | Φ60-Φ180 |
| vacuum pressure | 0.04MPa | 0.04MPa | 0.04MPa |
| Sizing box's specfication | 460*460*1200mm | 380*380*1200mm | 320*320*1000mm |
| Cooling box's specfication | 460*460*3000mm | 380*380*2400mm | 320*320*2000mm |
| Cooling method | Circulating water spray | Circulating water spray | Circulating water spray |
| Traction power | 5.5KW | 5.3KW | 1.5KW |
| Traction speed | 0.2-3m/min | 02-4m/min | 0.2-4m/min |
| Cutting method | Automatic tracking saw blade cutting | Automatic tracking saw blade cutting | Automatic tracking saw blade cutting |
| Flip stacking method | Automatic fixed length gas control | Automatic fixed length gas control | Automatic fixed length gas control |

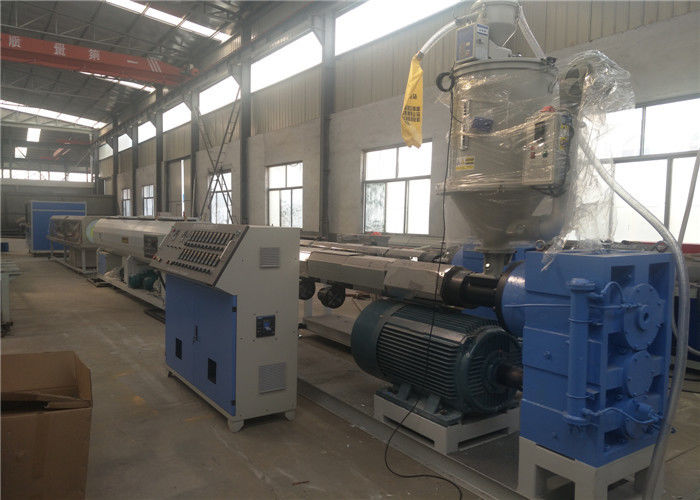

Machine details pictures:
