Product Details:
|
| Brand Name: | Aorui | Model Number: | SJSZ65/132 |
|---|---|---|---|
| Screw Design: | Double Screw | Place Of Original: | Shandong , China |
| Certificate: | CE ISO9001 | Plastic Processed: | PVC |
| Voltage: | 380V 50HZ | Warranty: | 1 Year |
| High Light: | Plastic Profile Extrusion Machine,Plastic Profile Extruder |
||

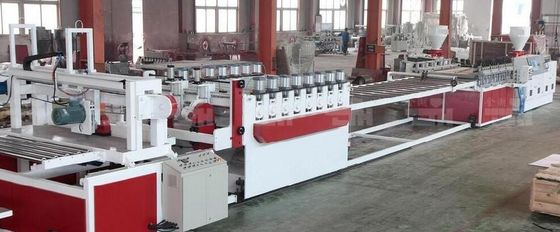

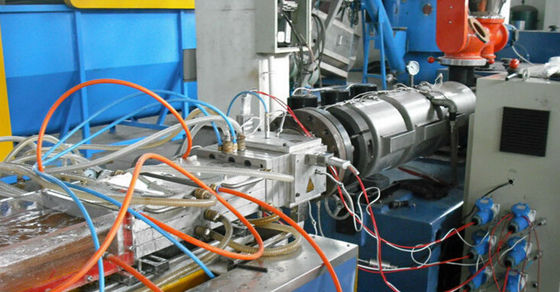

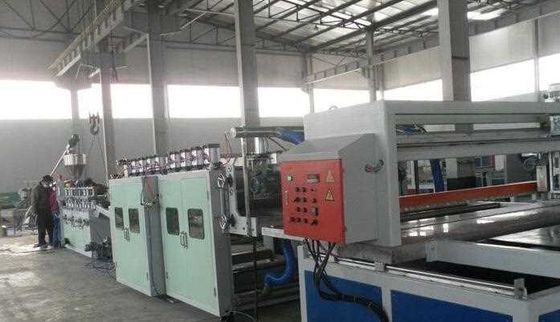

Double Screw Door And Window Wpc Profile Production Line With 380v 50hz Voltage
PVC WPC Door and Window Profile Extrusion Machinery / WPC Machine WPC Plastic Profile Production Line
Quick detail:
1. YF Series PVC non-profiled material production line is mainly used in PVC door & window profiled material, wide door plate, window plate, extrusion of multi-holes pipe for passing through lines (four holes, six holes, seven holes, nine holes, etc.) For different sectional surface and molds, twin parallel (conical) screws extruder of different specifications can be chosen together with corresponding vacuum calibrating table, haul-off unit, cutting unit, tilter, etc.
2. Machines of this series feature low shearing rate, uneasy degradation,even plastication and agglomeration, reliable quality,wide application range and long servicing life. Using PE powder as raw material for a direct forming, the exturders perform an excellent effectiveness. These machines have automatic temperature control, vacuum gas exhaustion, oil cooled screws, stepless speed regulation, as well as a forced and self-cleaning mechanism.
Description of pvc wpc Profile Machine:
1. Wood working plastic pvc profile wrapping machine for furniture is mainly for the decoration Materials, aluminum material surface with PVC wrapping, with scraping glue system to keep the glue spreading uniform, it is suitable for different complicate shape, as angle parts, around ARC, roughness, extruding shape, so as to get a excellent surface.
Advantage and application:
1.the excellent appearance of the natural wood,
2.With the advantages of anti-corrosion, moisture-proof, anti-moth-eaten, no cracking, etc, it is much harder than the pure plastic products and has the similar process-ability as the wood.
3.It can be cut, paint, bonded and fixed with nails or bolts.
4.The woodplastic foamed board is mainly used in wall panel, decorating plate, construction formwork, kitchen cabinet, cloth cabinet, bath room cabinet, fence, stair handrail, etc.
Technical Parameters:
| Item | SJSZ-45 | SJSZ-51 | SJZ-65 |
| Screw diameter(mm) | 45/100 | 51/105 | 65/132 |
| Screw volume (mm) | 2 | 2 | 2 |
| To screw | The outward differences Screw rotation direction | ||
| Screw Rotational Speed(r/min) | 1-37 | 1-32 | 1-34.7 |
| Screw effective working length (mm) | 985 | 1070 | 1440 |
| The main motor power (kw) | 15 | 18.5 | 37 |
| Barrel heating power (kw) | 12 | 18 | 24 |
| Installation Power(kw) | 27 | 32 | 65 |
| Production capacity (kg/h) | 95 | 80-120 | 250-300 |
| High machines Center(mm) | 1000 | 1000 | 1000 |
| Weighing (kg) | 2800 | 3200 | 4000 |
| External dimensions | 3620×1050×2157 | 3000×1050×2200 | 4235×1520×2450 |
Competitive advantages:
1. CE ISO9001 Certificate
2. Good quality machine
3. We have professional engineers help you to solve the problems
