Product Details:
|
| Brand Name: | Aorui | Automatic Grade: | Fully Automatic |
|---|---|---|---|
| After-sales Service: | Engineers Availiable To Service | Contactor: | Schneider |
| Material: | PVC | Application: | Profile |
| Motor: | Siemens | Plastic Processed: | Pvc |
| High Light: | Plastic Profile Extrusion Machine,Plastic Profile Extruder |
||

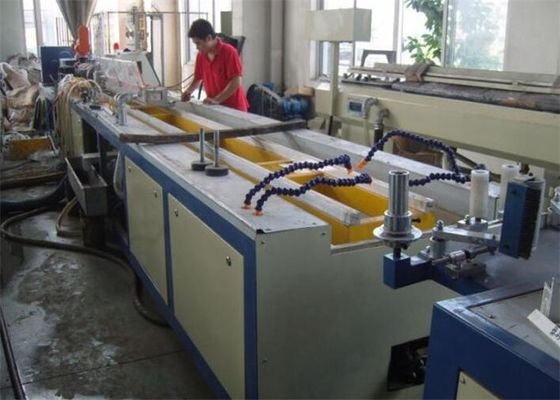

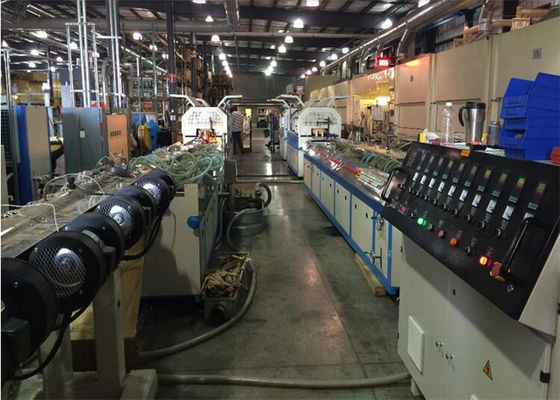

PVC WPC Profile Extrusion Line , Plastic Profile Production Line Fully Automatic
Plastic Profile Extrusion Line / PVC WPC Plastic Profile Extrusion Equipment / wpc Profile Production Line
Quick detail:
1. Process Flows:
Plant fiber (20-40 mesh) + recycled plastic(PE/PP) + additives
high speed heating mixer --WPC granule extrusion line --PE WPC profile production line-- finished productsanding/brushing/embossing surface treatment crusher for recycle
2. Equipment List of PE WPC profile machine:
1. Heat mixing machine
2. WPC pelletizing extruder
3. WPC profiles extruder
4. Mould

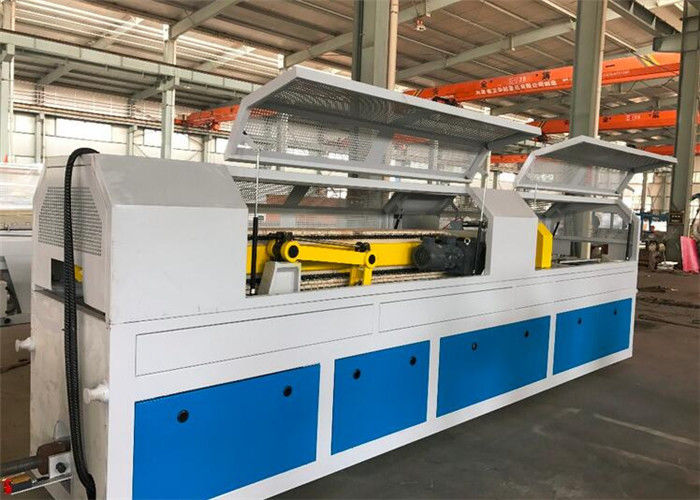

5. Calibration Unit and water cooling tank+ haul off+cutter+stacker
Description of pvc wpc Profile Machine:

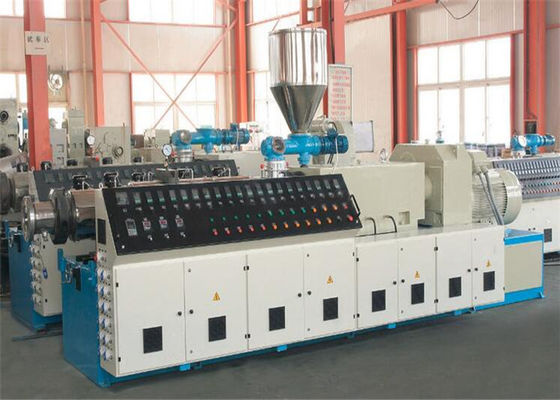

1. The main extruder adopts special-designed screw, barrel,mould.Equipped with the auxiliary machineries, it could produce the PP PE PVC Wood-Plastic products. It's a new environment-protecting product, which combines the wood powder and plastic powder at a certain percent. After the high temperature and mould extruding, the wood and plastic composites and becomes the final products.
2. Applications of Product
Transport industry: ship, plane, bus, train, floor covering, core layer, indoors decoration plate.
Architecture decoration industry: outdoors plate, indoors decoration plate, residential house, office, separation of public building, commercial decoration frame, plate used in dust-free room, ceiling plate.
Advertisement industry: screen printing, computer engraving, ad. board, exhibition plate, logo plate.
Industrial application: rot proof project in chemical industry, thermal shaped part, plate for refrigeration warehouse, special cool-keeping project, environmental protection plate.
Other applications: construcion mold plate, sports apparatus, aquaculture material, seashore wet-proof facility, water-resistant material, arts material and all sorts of light separation plate.
Technical Parameters:
| Item | SJSZ-45 | SJSZ-51 | SJZ-65 |
| Screw diameter(mm) | 45/100 | 51/105 | 65/132 |
| Screw volume (mm) | 2 | 2 | 2 |
| To screw | The outward differences Screw rotation direction | ||
| Screw Rotational Speed(r/min) | 1-37 | 1-32 | 1-34.7 |
| Screw effective working length (mm) | 985 | 1070 | 1440 |
| The main motor power (kw) | 15 | 18.5 | 37 |
| Barrel heating power (kw) | 12 | 18 | 24 |
| Installation Power(kw) | 27 | 32 | 65 |
| Production capacity (kg/h) | 95 | 80-120 | 250-300 |
| High machines Center(mm) | 1000 | 1000 | 1000 |
| Weighing (kg) | 2800 | 3200 | 4000 |
| External dimensions | 3620×1050×2157 | 3000×1050×2200 | 4235×1520×2450 |
Competitive advantages:
1. CE ISO9001 Certificate
2. Good quality machine
3. We have professional engineers help you to solve the problems
