Product Details:
|
| Machine Type: | PVC Foam Board Machine | After-sales Service: | Engineers Availiable To Service |
|---|---|---|---|
| Trademark: | Aorui | Certificate: | CE ISO9001 |
| Voltage: | 380V 50HZ | Model Number: | SJSZ80/156 |
| Power: | 55kw | Condition: | New |
| High Light: | wpc pvc foam board machine,wpc board production line |
||

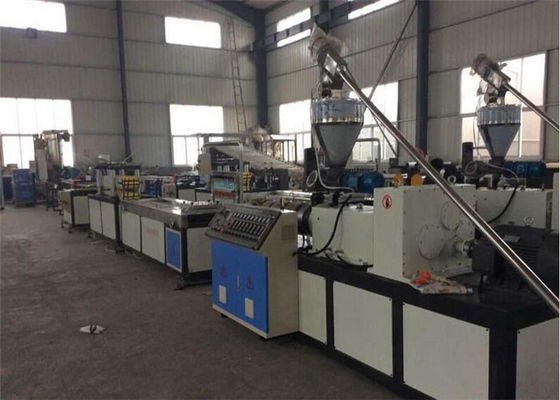

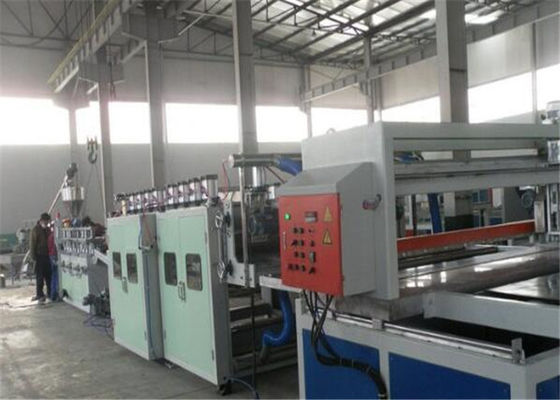

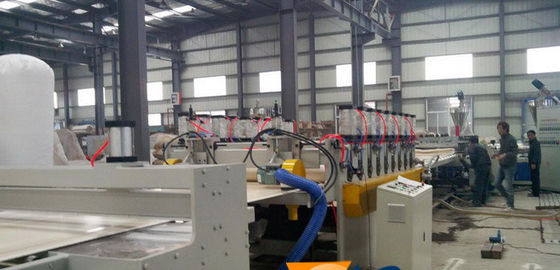

WPC PVC Crust Board Making Machine / PVC WPC Foam Sheet Production Line / PVC Foam Plate Extruder Machine
Quick detail:
1. The rise and fall of the calibration unit, adopts ELECTRIC LIFTING, easier operation.
2. Equipped with INDEPENDENT LIFT to remove and reinstall the mould, replace the heavy gantry, and greatly saves space, safer and more beautiful
3. Equipped with AUTOMATIC DISMANTLE DEVICE, reduce the labor force.
4. The DIAGONAL of the board can be adjusted independently, very convenient
5. This machine can produce pvc products of different specifications only by changing mould
Description:
1. pvc wpc Wood plate production line is our company successfully developed a composite self-invented technology, plate by adding pulverized plant fiber, the thickness adjustable, can be a single-or three-tier board, board width 915 ~ 1220mm, widely used in the construction template, furniture, decoration and other industries.
2. PVC Foam Board Machine adopts Celuka foam technology, which can produce a kind of PVC foam boards with superior quality. These processes result in a "skinning" or outer layer of foam board, thus has smooth and shining surface with characteristics of lightweight, scratch-resistant, durable, water and weather resistant, anti-corrosion, impervious to salts, insects and many chemicals including some acids.
3. Material of mould is high quality alloy steel 5CrNiMo forging treatment, the surface of inner flow channel is under chrome plating treatment and polish treatment. The structure of mould adopts imported technology, the die cavity under hard chrome plating treatment and mirror type polishing treatment.
Specifications:
|
Model
|
SJSZ-51
|
SJSZ-55
|
SJSZ-65
|
SJSZ-80
|
SJSZ-92
|
|
Screw dia.(mm)
|
51/105
|
55/110
|
65/132
|
80/156
|
92/188
|
|
Max speed(rmp)
|
40
|
38
|
38
|
37
|
36
|
|
Main motor(kw)
|
18.5
|
22
|
37
|
55
|
90
|
|
Capacity(kg/h)
|
80~100
|
100~150
|
150~250
|
250~380
|
380~700
|
|
Center height(mm)
|
1050
|
1050
|
1050
|
1050
|
1100
|
|
Net weight(kg)
|
3000
|
3500
|
4000
|
5500
|
8000
|
|
L*W*H(m)
|
3.6x1.1x2.1
|
3.6x1.1x2.1
|
4.2x1.5x2.4
|
4.7x1.5x2.4
|
6x1.6x2.5
|
Competitive Advantage:
1. Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment.
2. Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan.
3. About the equipment, Middle tech promised the good quality of 12 month.
