Product Details:
|
| Brand Name: | Aorui | Model Number: | SJSZ80/156 |
|---|---|---|---|
| Motor: | Siemens | Screw Number: | Two |
| Frequency Control: | ABB | Temperature Controller: | Omron |
| Port: | Qingdao | Original: | Shandong , China |
| High Light: | wpc pvc foam board machine,wpc board production line |
||

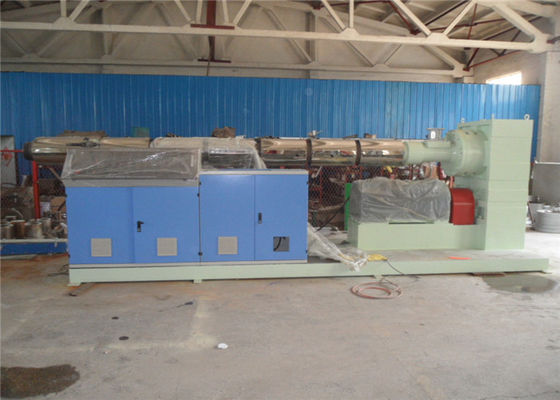

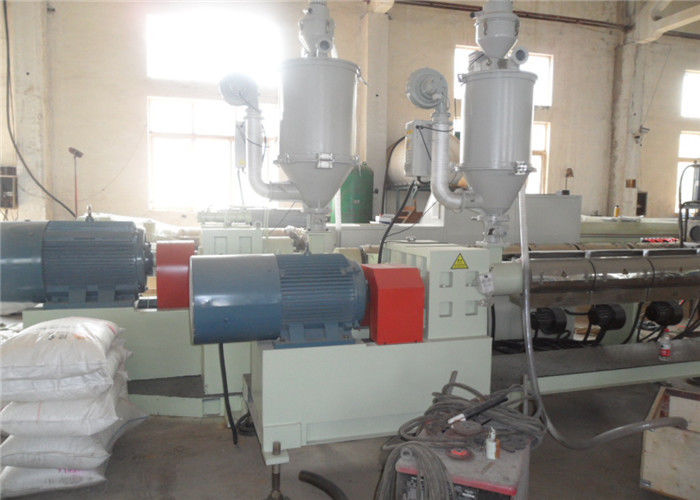

PVC WPC Free Foam Board Machine / PVCWPC Wood Composite Sheet Extruder Machine
Quick detail:
1. The main extruder adopts specialdesigned screw, barrel,mould.Equipped with the auxiliary
machineries, it could produce the PP PE PVC Wood-Plastic products.
2. It's a new environment protecting product, which combines the wood powder and plastic powder
at a certain percent.
3. After the high temperature and mould extruding, the wood and plastic composites and becomes the final products.
Description:
1. PVC foam board can be100% recycled and reused. Besides, PVC foam board can be worked like wood with the tools for wood. It's suitable for sawing, cutting, nailing, screwing, planning and sticking. It's the perfect substitute for wood plates and steel plate.
2. The plate produced by our production line have no cracking and non-deformation in high temperature. Usually the template can be used for more than 30 times, and maximum can be used for 50 times.

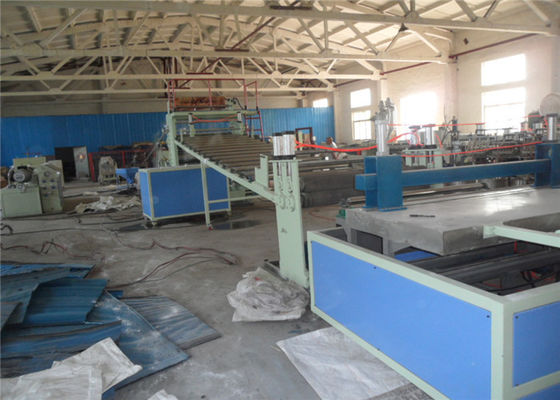

3. Parts of Production line
Nomally this line is composed by 7 parts ,as follow:
1. Feeder
2. conical twin-screw extruder
3. mould
4. calibration tank
5. haul-off
6. cutter
7. staker
The mixer can also be equiped by requirement .
Specifications:
|
Model
|
SJSZ-51
|
SJSZ-55
|
SJSZ-65
|
SJSZ-80
|
SJSZ-92
|
|
Screw dia.(mm)
|
51/105
|
55/110
|
65/132
|
80/156
|
92/188
|
|
Max speed(rmp)
|
40
|
38
|
38
|
37
|
36
|
|
Main motor(kw)
|
18.5
|
22
|
37
|
55
|
90
|
|
Capacity(kg/h)
|
80~100
|
100~150
|
150~250
|
250~380
|
380~700
|
|
Center height(mm)
|
1050
|
1050
|
1050
|
1050
|
1100
|
|
Net weight(kg)
|
3000
|
3500
|
4000
|
5500
|
8000
|
|
L*W*H(m)
|
3.6x1.1x2.1
|
3.6x1.1x2.1
|
4.2x1.5x2.4
|
4.7x1.5x2.4
|
6x1.6x2.5
|
Competitive Advantage:
1. Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment.
2. Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan.
3. About the equipment, Middle tech promised the good quality of 12 month.
