Product Details:
|
| Brand Name: | Aorui | Condition: | NEW |
|---|---|---|---|
| Screw Design: | Double Screw | Automatic Grade: | Fully Automatic |
| Certificate: | CE ISO9001 | Place Of Original: | Shandong , China |
| After-sales Service: | Engineers Availiable To Service | Raw Material: | Pvc |
| Voltage: | 380V 50HZ | ||
| High Light: | plastic pipe extrusion machine,plastic pipe production line |
||
Twin Screw CE Plastic Pipe Extrusion Line PVC Fiber Reinforced Soft Pipe Production
Quick detail:
1. The PVC Fiber Reinforced Soft Pipe also called pvc gridding pipe and snakeskin pipe which is mainly used to convey the middle pressure or corrosive gas . It is widely used in the area such as mechanical engineering , coal mine , petroleum, chemical industry , agriculture irrigation, civil appliation(solar energy water heater , gas-jar),also it an be used in irrigating garden and lawn.
2. The pipe is three layer pipe, inner layer and out layer are soft PVC, middle layer is strengthened layer which is material with fiber. This pipe is tansparent andnon poisonous. It is anti-pressure, anti-tension, anti-arc...Etc., the pipe is the best chose for gas and liquid supply when under temperature condition 0-65º C.
Description:

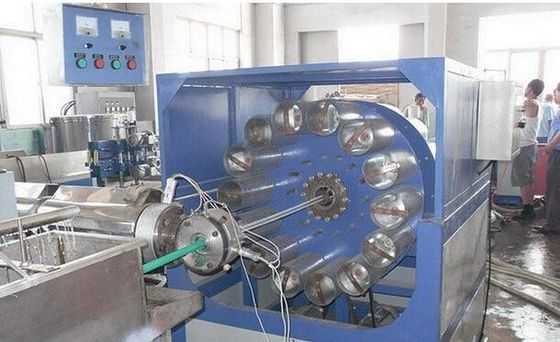

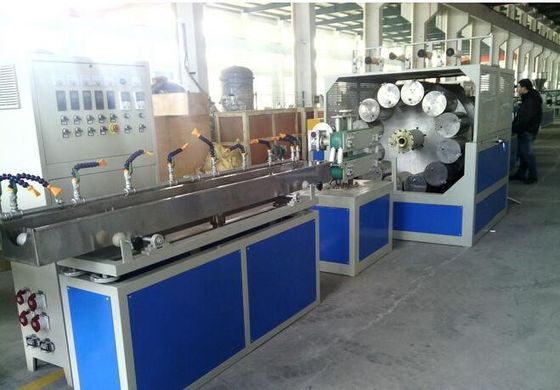

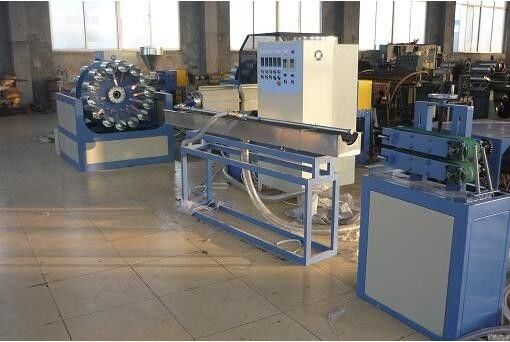

1. PVC fiber reinforced pipe production line is mainly consists of extruders,spray water tank,traction machine,braiding machine, pedrail hauling machine,double station auto-winder.Unique in construction,reliable in performance,easy to operation,convenient to maintance and high continous production capacity.
2. Process flow:
Virgin material+additive--mixing--granulating--conveying feeding--single screw extruder--extruding mould--spray cooling water tank--belt haul-off--fibre braider--warm-up oven--single screw extruder--coating mould--spray cooling water tank--belt haul-off--meter measurer--winder--finished product insepcting&packing.
Specifications:
| Pipe Diameter(mm) | 16-63 | 32-125 | 75-250 | 110-450 | 315-630 | 315-800 | |
| Extruder | 45/33 | 75/33 | 60 | 60/38 75/33 |
75/38 90/33 |
90/38 120/33 |
105/38 150/33 |
| Strand | single strand | double strand | single strand | single strand | single strand | single strand | single strand |
| Downstream equipment | LG63 | SLG63 | LG125 | LG250 | LG450 | ||
| Total power(KB) | 70 | 125 | 150 | 230 | 380 | 550 | 800 |
Competitive Advantage:
1) We give you suitable suggestions according to your actual need.
2) Technical support: long available life
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
