Product Details:
|
Machine Color: | Bule | Place Of Original: | Shandong , China |
---|---|---|---|
Automatic Grade: | Fully Automatic | After-sales Service: | Engineers Availiable To Service |
Motor: | Siemens | Model Number: | SJ90/33 |
Certificate: | CE ISO9001 | Voltage: | 380V 50HZ |
High Light: | plastic pipe extrusion machine,plastic pipe production line |

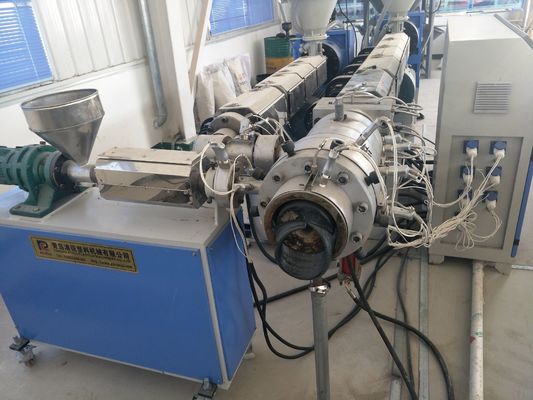

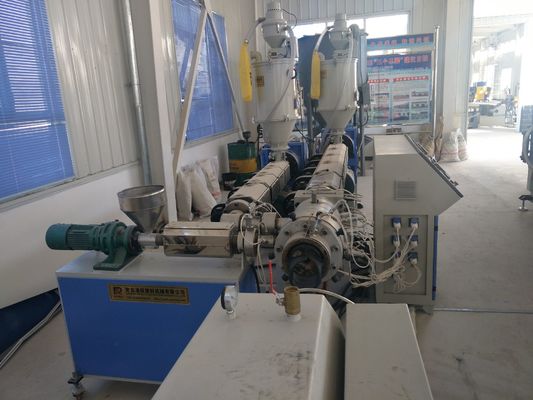

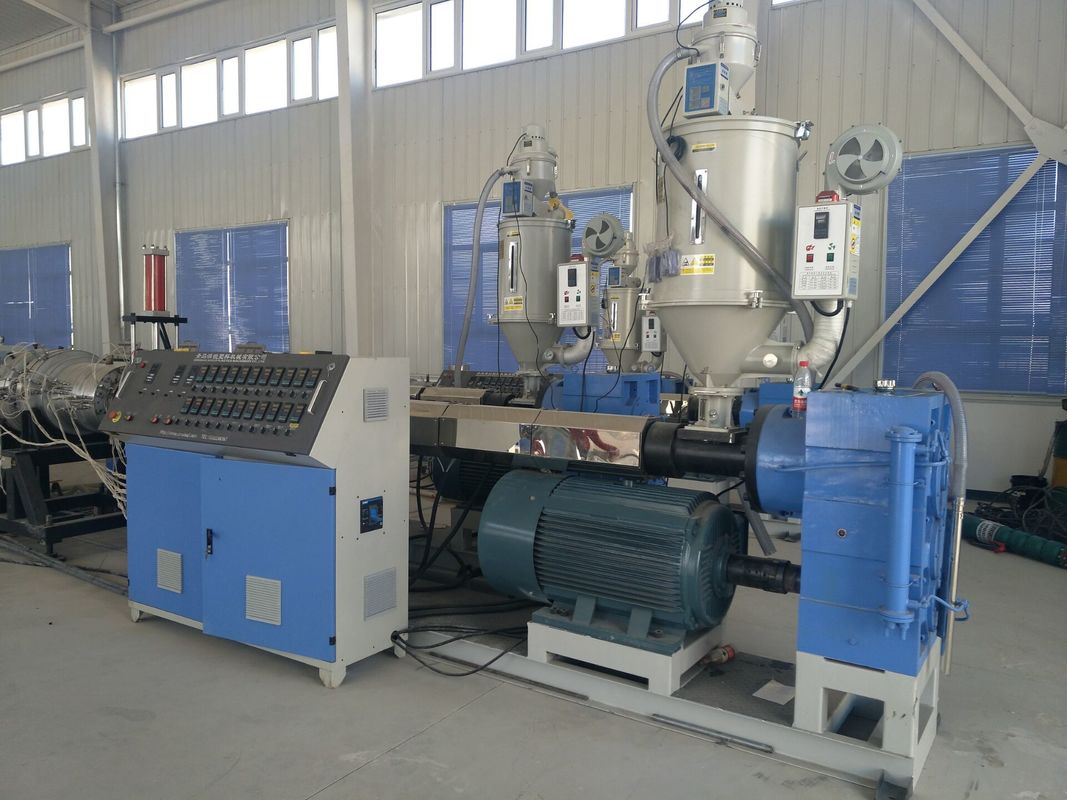

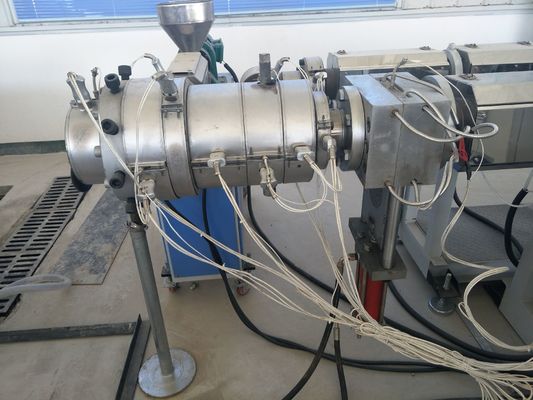

PE Plastic Pipe Extrusion Line / PE Water Pipe Making Machinery / Plastic PE Pipe Extruders
Quick detail:
1. Applied with imported world famous A/C inverter, and electric components.
2. Famous brand of vacuum pump and driving motor
3. Ceramic heater guarantee the working life for heater
4. All water cooling tube adopt copper tube for the cooling system
5. Bimetallic screw and PLC intelligence controller system
6. All forcing bearing adopt SKF or NSK bearing.
Description:
1. Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Running in a high automatization and intellectualization
4) Apply a linker to connect with the screw loader ,which can directly online with filling machine
2. We supply all the necessary technical documents ,such as lay-out drawings, Electrical diagram, User Manual, will be in English.We will send our experienced workers and enigneer to cusomters for installing and adjusting all the machinery. Customer will par for the accommodation.
Specifications:
Diameter Scope |
4.5-9 |
9-32 |
32-50 |
Main Extruder |
SJ-30 |
SJ-45 |
SJ-65 |
L/D |
30:1 |
30:1 |
30:1 |
Output kg/h |
10 |
40 |
80 |
Main Motor Power kw |
4 |
11 |
18.5 |
Corrugator Power kw |
1.1 |
1.5 |
1.5 |
Mould Block Pairs |
42 |
44 |
44 |
Cooling Type |
Water and air cooling |
||
Linear Speed (m/min) |
6-10 |
8-12 |
8-15 |
Counting Type |
Sensing counting |
||
Winding Type |
Automatic/Manual |
Applications:
1. PE pipe material is healthy, non-toxic, not fouling, and more suitable for urban water supply main conduit and buried tube. It has the feature of safety, hygiene, convenient construction.
2. Hardened gear reducer box, carburized and grinded teeth, installed with forced cooling system to ensure high-performance, low noise and long service life
3 . used in many fields like Chemical industry, chemical fiber, food, forestry, pharmacy, light industry and papermaking, metallurgical and other industrial raw material conveying pipe.
Competitive Advantage:
1 . High capacity and stable operation
2 . Long service life and good quality
3 . Low energy consumption
4. Our engineers can go to aborad to service , install the machine nad test the machine.
5. We have CE&ISO9001 certificate
