Product Details:
|
| Brand Name: | Aorui | Condition: | New |
|---|---|---|---|
| Warranty: | 1 Year | Automatic Grade: | Fully Automatic |
| Certificate: | CE ISO9001 | Place Of Original: | Shandong, China |
| Control: | PLC Control | Material: | PP PPR |
| High Light: | plastic pipe extrusion machine,plastic pipe production line |
||
Hot and Cool Water Plastic Pipe Extrusion Line , Ppr Pipe Production Line PLC Control
Quick detail:
1. Special single screw extruder for polyolefin, having high extruding velocity and effective plasticization.
2. Seperation mixing screw specialized for polyolefin.

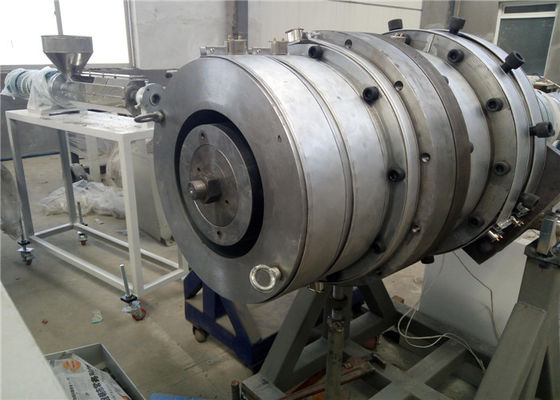

3. Specially designed 2-3 co-extruding die , reasonable channel , smooth outside and inside wall , and little internal stress.
4. Producing pipe limit 20-160mm , manufacture velocity up to 15m/min.
5. May be used to produce HDPE silicon core tube , ordinary PP-R , PE , PEX and PE-RT pipes.
Description:

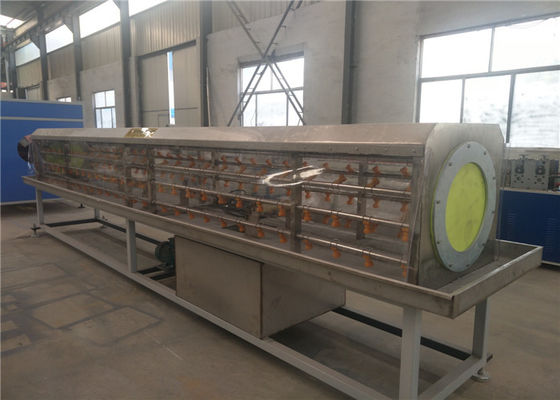

1.PE PPR PP plastic pipe material production line is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc. This machine group consists mainly of vacuum calibrating tank, haul-off unit, cutting unit, tilter, etc.
2. with special device, it can produce inner wall spiral pipe, inner wall hollow pipe, and core layer bump pipe etc, it can also produce PP PE ABS PPR PEX, silicon core pipe and pipe material of other material. The planetary cutting machine is fully automatic computer digital control, it has such advantages of simple operation reliable property etc. It has reached world advanced level.

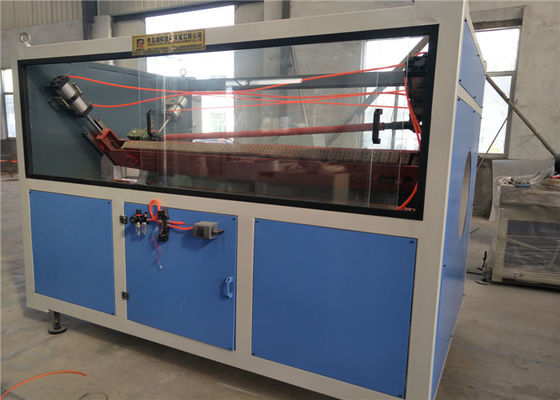

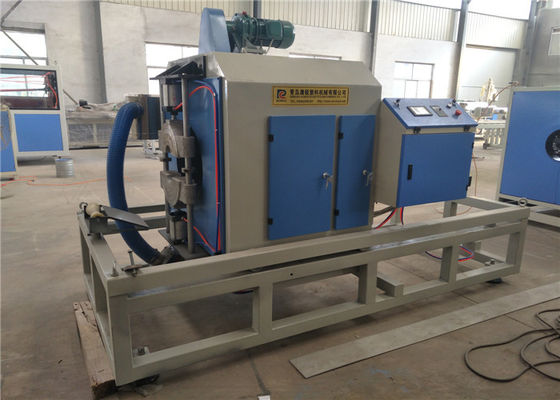

3. Plastic PPR / PE pipe production line's haul-off unit includes two-claw type, three-claw type, four-claw type, six-claw type, eight-claw ten-claw type, etc. Scraps free cutting, saw cutting or planetary cutting can be applied, the property of machine group is reliable, the production efficiency is high.
Specifications:
|
Diameter Scope |
4.5-9 |
9-32 |
32-50 |
|
Main Extruder |
SJ-30 |
SJ-45 |
SJ-65 |
|
L/D |
30:1 |
30:1 |
30:1 |
|
Output kg/h |
10 |
40 |
80 |
|
Main Motor Power kw |
4 |
11 |
18.5 |
|
Corrugator Power kw |
1.1 |
1.5 |
1.5 |
|
Mould Block Pairs |
42 |
44 |
44 |
|
Cooling Type |
Water and air cooling |
||
|
Linear Speed (m/min) |
6-10 |
8-12 |
8-15 |
|
Counting Type |
Sensing counting |
||
|
Winding Type |
Automatic/Manual |
||
Competitive Advantage:
1. CE ISO9001 Certificate
2. Good pre-sales and after-sales service
3. Our engineers can go to abroad to service
