Product Details:
Payment & Shipping Terms:
|
After-sales Service: | Engineers Availiable To Service | Voltage: | 380V 50HZ |
---|---|---|---|
Certificate: | CE ISO9001 | Automatic Grade: | Fully Automatic |
Application: | Plastic Pipe | Type Of Extruder: | Single Screw Extruder |
Brand Name: | Aorui | Model Number: | SJ90/33 |
PE Single Screw Plastic Pipe Extrusion Line , PE Pipe Production Line
Quick detail:
1. Process:
Raw material preparation→ vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul-off machine → cutting machine → discharging rack.
2. Applications of single screw extruder machine:
Suitable materials:PE,PP,PPR,PS,PVC,PA,PC etc.
Suitable products:plastic pipes,profiles,plates ,sheets,granules etc.
Description:
1. SJ Series High Capacity Single Screw Extruder Machines are with good plastical performance, high output, reasonable design, high precise, use good quality components, good quality material on main parts, produced by ourselves, stable running, easy control, main frequency converter and air switch from SIEMENS.

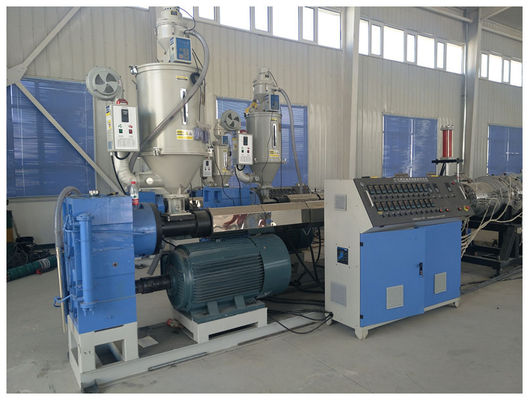

The basic HDPE / PE Pipe Production Line consists of
1. Color Mixer ( for raw material preparation)

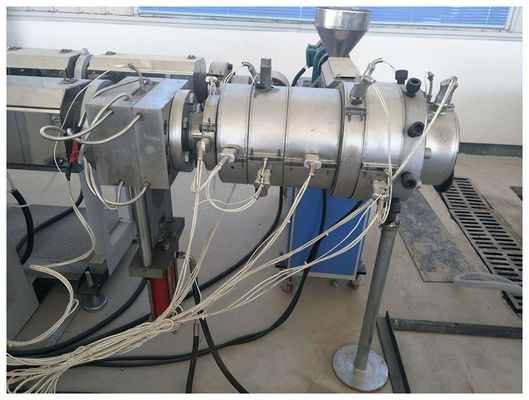

2. Single Screw Extruder
3. Extrusion Mold

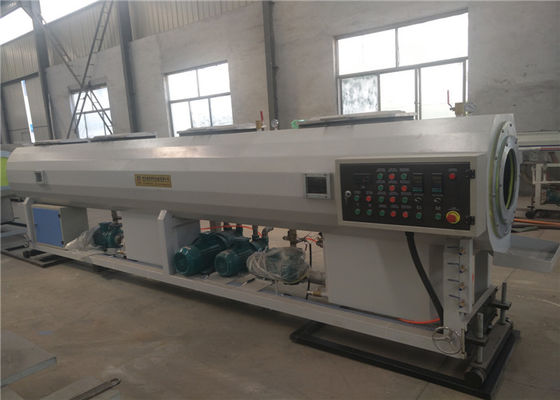

4. Vacuum Tank

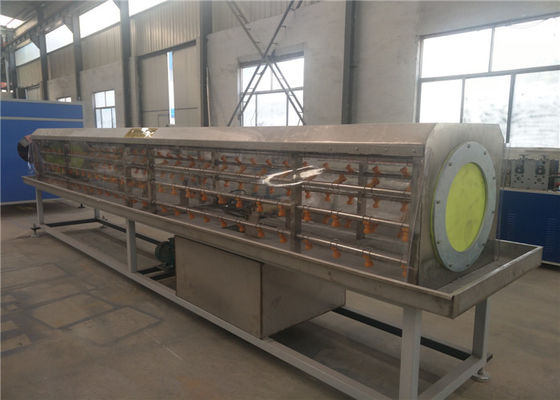

5. Cooling Tank
6. Haul Off Machine
7. Cutting Machine
8. Stacker ( for 110mm upto 1200mm)
9. Winding Machine ( for pipe diameter 16-63mm and 75-110mm)
10. Shredder and Crusher ( for waste pipe treatment, the recycled PE material could produce pipe again.)
Specifications:
Specifications | Production range | production | Installed power |
SJ 45 | 20--63 | 100KG | 65KW |
SJ 65 | 20--110 | 180KG | 95KW |
SJ 75 | 50--250 | 300KG | 140KW |
SJ 90 | 160--400 | 600KG | 190KW |
SJ 120 | 315--630 | 800KG | 240KW |
pvc production line applications
1. Water supply and drainage pipe in building;
2. Rainwater drainage pipe in building;
3. Electrical wiring pipe in building;
4. Air conditioning condensate water systems.
Competitive Advantage:
1. We can give you reasonable advice, then you can operate this machine easliy
2. Good qulaity machine, CE ISO9001 certificate
3. High output , stable run
4. Gerat pre-sales service and after-sales service
