Product Details:
|
| Certification: | CE ISO9001 | Raw Material: | PET |
|---|---|---|---|
| Inverter: | ABB | Temperature Controller: | Omron |
| Payment Terms: | TT Or L/C | Screw Number: | One |
| Automatic Grade: | Fully Automatic | Port: | Qingdao |
| High Light: | Strapping Band Making Machine,Strap Making Machine |
||

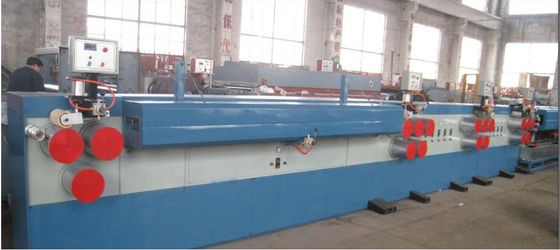

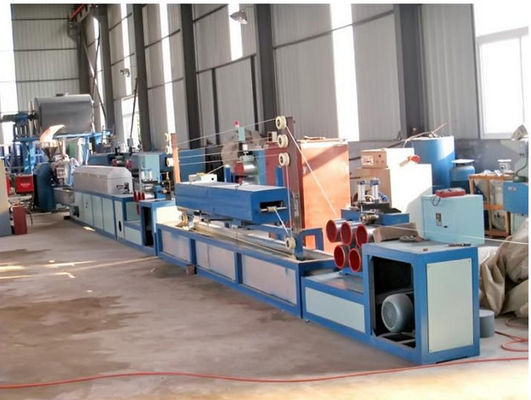

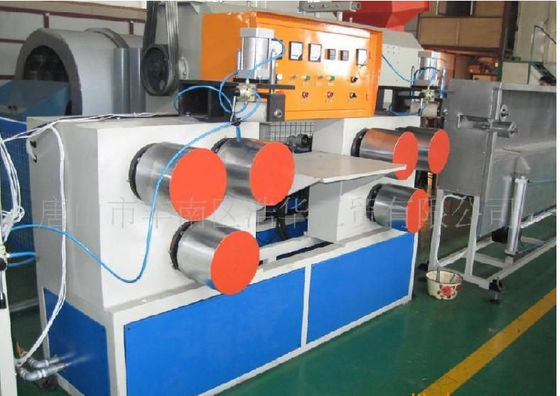

pet Strapping Band Production Line , PP PET Packing Belt Extrusion Machinery , Plastic Strap Band Machinery
Quick detail:
The features of line are as follows: Screw with compression ratio especially for PP/PET, gradually changing diameter and deeper thread groove at the melting part; Gearbox with hardened gears; Die can be precisely adjusted to ensure stable production and smooth surface of straps; Stainless steel cooling trough with four thermo treatment processes displaces the traditional one; Haul off rollers with bigger size ensure the quality of products; New rolling technology overcomes the shortcomings of traditional rolling machine like high gradient and bending delection; Laser embossing roller makes clear and even patterns.
Description:
1. PP packing belt use new/recycled PP flakes , because of its plasticity, fracture tensile strength, bending resistance, light weight, ease of use, etc., are processed into packaged strap, it has been widely applied in various fields.
2. Production Features:
1. comply with strict safety standards, precision manufacturing processes can make the life of the production line longer.
2. From the materials handling, extrusion, stretching, embossing, cooling and winding, every step to ensure the use of advanced manufacturing technology packaged with quality.
3. advanced operating system, you can control the entire production line through the touch screen.
The production speed of up to 120 m / min, low waste
4. The single, double bars, four, six can be arbitrarily chosen
Technological parameter:
| Extruder model | SJ-XX single screw extruder |
| Main motor | 30-90kw |
| Motor drive | AC |
| Power supply | 380V 50HZ or Customized |
| Strap width | 9-25mm |
| Strap thickness | 0.5-1.5mm |
| Drying volume | 100kg/h |
| Loading power | 3kw |
| Daily output | 1000-2000kg |
| Worker | 2-3 |
Our company competitive advantages:
Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
