Product Details:
|
| Brand Name: | Aorui | Model Number: | PET90 |
|---|---|---|---|
| Automatic Grade: | Fully Automatic | Frequency Control: | ABB |
| Port: | Qingdao | Nitrided Layer Thickness: | 0.4-0.7mm |
| Application: | Strap Band | Warranty: | 1 Year |
| High Light: | Strapping Band Making Machine,Strap Making Machine |
||

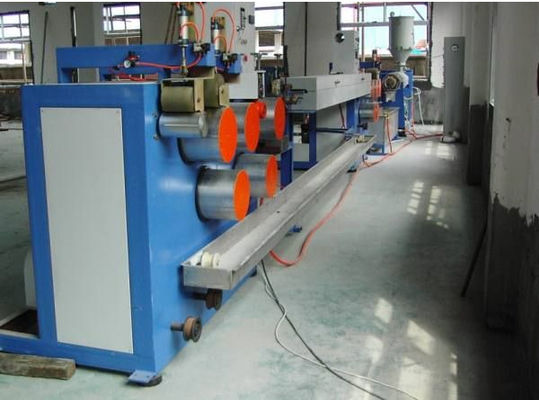

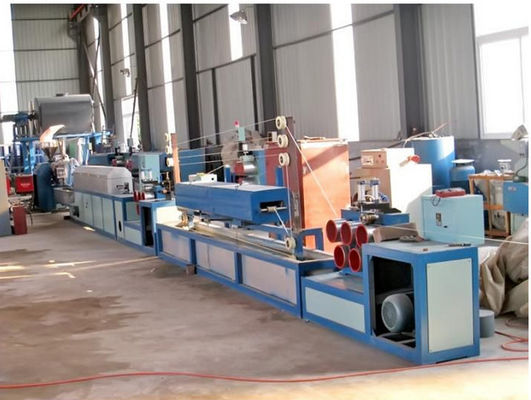

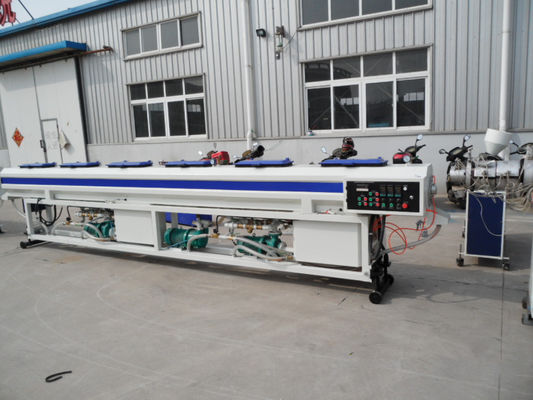

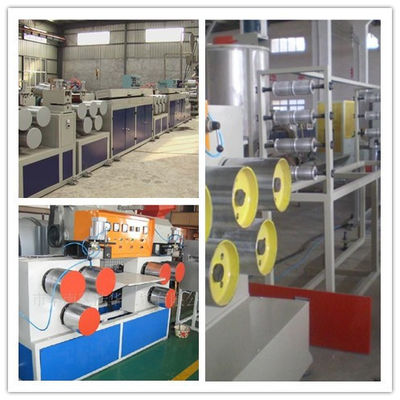

PP PET Packing Belt Strap Band Making Machine , PP Strap Band Extrusion Line , PET Drawbench Production Line
Quick detail:
1. PET PP packing belt production line
Single screw or double screw technology can be chosen as required;
Can be recycled 100% bottles of tablets;
Uniform extrusion, stable extrusion, automatic control over all PC;
Metering pumps ensure continuous and stable products;
Double column double station filter to remove impurities effectively;
Single or double bars can be chosen at will;
The PET monofilament can be produced by replacing the corresponding device.
2. With 100% bottle flakes recycled material, to produce various specifications of PET strap. It consists of dehumidifying and crystallizing system, extruder, screen changer, mould, oven, haul-off, and winder, etc.
Description:
1. PET packing strap is widely used, replaced for steel strap for packing application internationally, because of its good tensile strength, flexible, low prolongation rate, good performance of high temperature resistant, non-rustiness, and low use-cost, etc, it is used in steel, construction material, chemical fiber, paper making, tobacco, agriculture, election, etc.
2. Production Process:
Material→ Dehumidifying and Crystallizing → Extruding → Mold → Cooling → Haul-off →Oven Heating →Pre-heating → Drawing and Stretching →Drawing and Stretching → Embossing →Hot Forming → Drawing → Winding
Technological parameter:
| Extruder model | SJ-XX single screw extruder |
| Main motor | 30-90kw |
| Motor drive | AC |
| Power supply | 380V 50HZ or Customized |
| Strap width | 9-25mm |
| Strap thickness | 0.5-1.5mm |
| Drying volume | 100kg/h |
| Loading power | 3kw |
| Daily output | 1000-2000kg |
| Worker | 2-3 |
Our company competitive advantages:
Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
