Product Details:
|
| Model Number: | SJ65/33 | Original: | Shandong , China |
|---|---|---|---|
| Application: | PE Carbon Sprial Pipe | Automatic Grade: | Fully Automatic |
| Screw Design: | Single Screw | Certificate: | CE ISO9001 |
| After-sales Service: | Engineers Availiable To Service | Raw Material: | PE |
| Motor: | Siemens | ||
| High Light: | plastic extruder machine,plastic production line |
||
One Screw Plastic Extrusion Line , Plastic Pipe Production Line For PE Carbon Sprial Pipe Making
Plastic Pipe Extruion Line , PE Carbon Sprial Pipe Production Line , Carbon Sprial Pipe Making Machine
Quick Details:

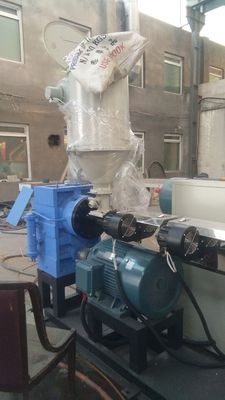

1. Special single screw extruder for the use of polyolefine material, high speed extrusion and effective plasticization.

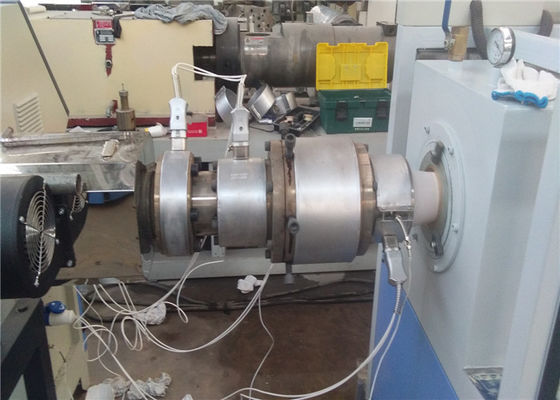

2. The special detachment type mixing screw and the standrd designed die with spiral structure & reasonable channel are applicable to produce pipes with smooth inside and outside face.
3. Unique sizing and cooling mode is capable of producing pipe cope 50-200mm, production speed is up to 0.6-1.5m/min.
4. Machinery is in sole possession of the special design to sizing cooling way to make the speed for leading position of the same line.
Description:
1. Special designed water spray nozzle brings in a high efficiency cooling effect.
Longitudinal shifting motor regulation realizes three dimensional adjustments.

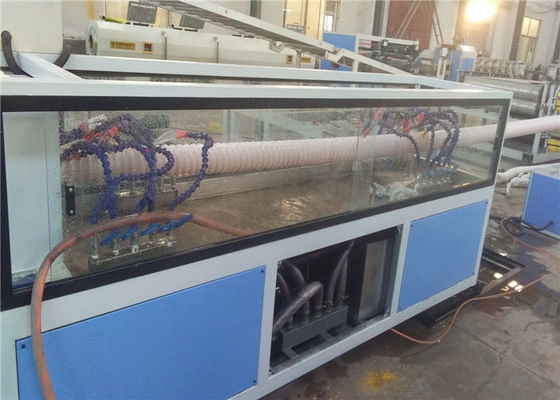

The water tank is made of stainless steel.High efficiency water pump and special designed spray nozzles result in a high efficiency cooling purpose.
2. The production line produces all kind of polyolefine material, multi-layers spiral strengthening pipe.The screw extruder especially used for polyolefine material possess effective plasticizing effect and high extrusion speed.The special detached type compounding scew and die head with structure and reasonable channel are applicable to produce pipes with smooth inside and outside face. Unique calibration and cooling mode is capable of producing pipe with diameter fron Φ50 to Φ200mm, production speed is up to 0.4-1.5m/min.
3. Optimum spiral copper sizing sleeve, its entrance carrying pre-cooling and powerful vacuum device to suit for high speed extruding pipe.Stainless steel cooling tank is tree-dimensional regulation, longitudinal moved motor.High effcient cooling comes from peculiar spraying nozzles and high efficiency water pump.
Detail information of spiral wrapping band
|
Model
|
Pipe range
|
Extruder model
|
Max. output
|
Main motor power
|
|
BRCP
|
50-100MM
|
SJ65/33
|
150
|
55
|
|
BRCP
|
100-200MM
|
SJ90/33
|
450
|
160
|
Competitive Advantage:
1) We give you suitable suggestions according to your actual need.
2) Technical support: long available life
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
