Product Details:
|
| Machine Name: | Plastic Carbon Pipe | Voltage: | 380V 50HZ |
|---|---|---|---|
| Automatic Grade: | Fully Automatic | Screw&Barrel Material: | 38Cr MOAIA |
| Condition: | New | Power: | 37KW |
| Temperature Controller: | Omron | Payment Terms: | TT Or L/C |
| Brand Name: | Aorui | ||
| High Light: | plastic extruder machine,plastic production line |
||
PE Carbon Sprial Reinforcing Plastic Pipe Machine / Production Line Fully Automatic
Plastic Pipe Making Machinery / PE Carbon Sprial Reinforcing Pipe Production Line / PE Pipe Extrusion Machinery
Quick Details:
1. Single screw extruder especially used for polyolefine material possess effective plasticizing effect and high extrusion speed.

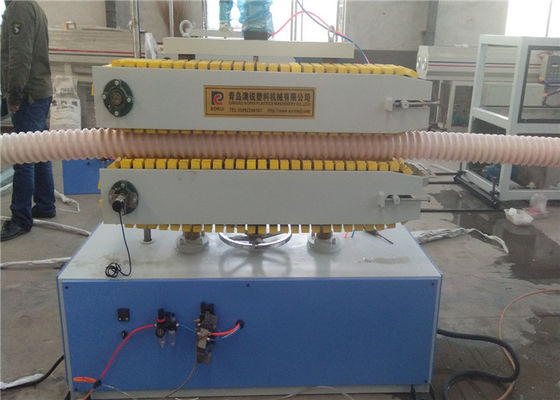

2. The special detached type compounding screw an die head with spiral structure & reasonable channel are applicable to produce pipes with smooth inside and outside face.
3. Unique calibration and cooling mode is capable of producing pipe with diameter from φ50 to φ200mm, production speed is up to 0.4~1.5m/min.
4. All kind of polyolefine material, multi-layers spiral strengthening pipe can be co-extruded, recycled materials can be used in production;
Description:
1. Single screw extruder, possessing effective plasticizing effect and high extrusion speed which is especially designed for the processing of PE material.
2. The special detached type compounding screw and die head with spiral structure & reasonable channel.
3. Unique calibration and cooling mode is capable of producing pipe with diameter from φ50 to φ200mm, production speed is up to 0.4~1.5m/min.
4. With co-extrusion technology, multi-layers spiral fiber-strengthened pipe can be extruded. Recycled materials can be used in the production.
5. Optimum spiral copper sizing sleeve, its entrance is equipped with pre -cooling and powerful vacuum device.

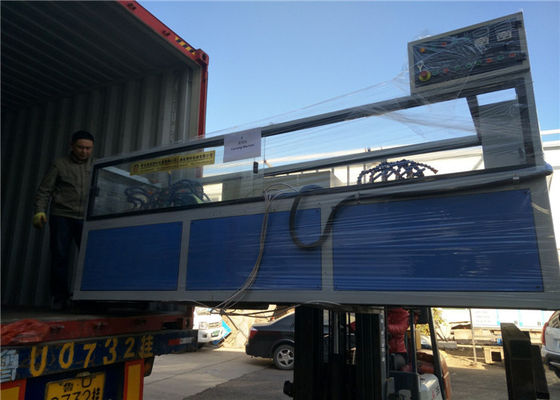

Stainless steel cooling water tank is three-dimensionally adjustable, longitudinal moved by motor.

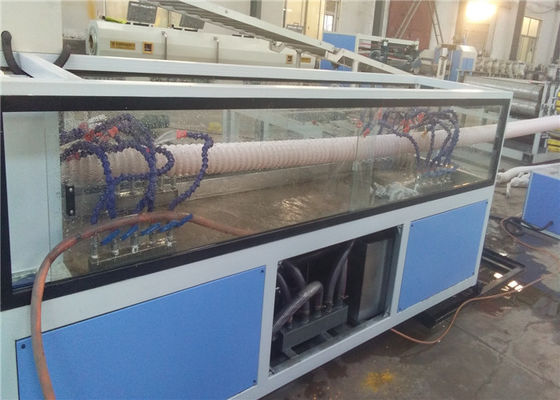

6. High efficient cooling comes from peculiar spraying nozzle and high efficiency water pump.
Detail information of spiral wrapping band
| xtruder | 2 set | Pipe forming machine | 1set |
| Spray-type cooling device | 1set | Control cabinet | 1set |
Technical parameters
| Model | LGSJ-45 | LGSJ-65 |
| Extrude | SH-SJ45×25 | SH-SJ65×28 |
| Diameter range | 25-50mm | 64-150mm |
| The installed capacity of | 31kw | 58.6kw |
| Average energy consumption | 21.7kw | 35.1kw |
| Overall dimension (L × W × H) | 15000×4000×1500mm | 18000×5000×2000mm |
| Total weight | About 3ton | About 4ton |
Competitive Advantage:
Equipment warranty
1. About the equipment, Middle tech promised the good quality of 12 month.
2. during the warranty, no purposely and artificially damage change the damaged part, we will free
maintenance and technical services.
3. Over 12 months, Buyer's needs to pay the producing cost of the worn part, and life-long supply the part of equipment and freely device
