Single Screw Pvc Plastic Granules Making Machine With One Year Warranty

Good quality Plastic Pipe Extrusion Line for sales
Good quality Plastic Pipe Extrusion Line for sales
This machine is very good , and the after-saes service is good. The pvc board machine is easy to operate and the output is stable

—— Nancy

The pvc board extrusion machine is good quality , it is beautiful and the output is stable , this is a reliable company

—— Albert

I'm Online Chat Now

Single Screw Pvc Plastic Granules Making Machine With One Year Warranty

China Single Screw Pvc Plastic Granules Making Machine With One Year Warranty supplier
Single Screw Pvc Plastic Granules Making Machine With One Year Warranty supplier Single Screw Pvc Plastic Granules Making Machine With One Year Warranty supplier Single Screw Pvc Plastic Granules Making Machine With One Year Warranty supplier

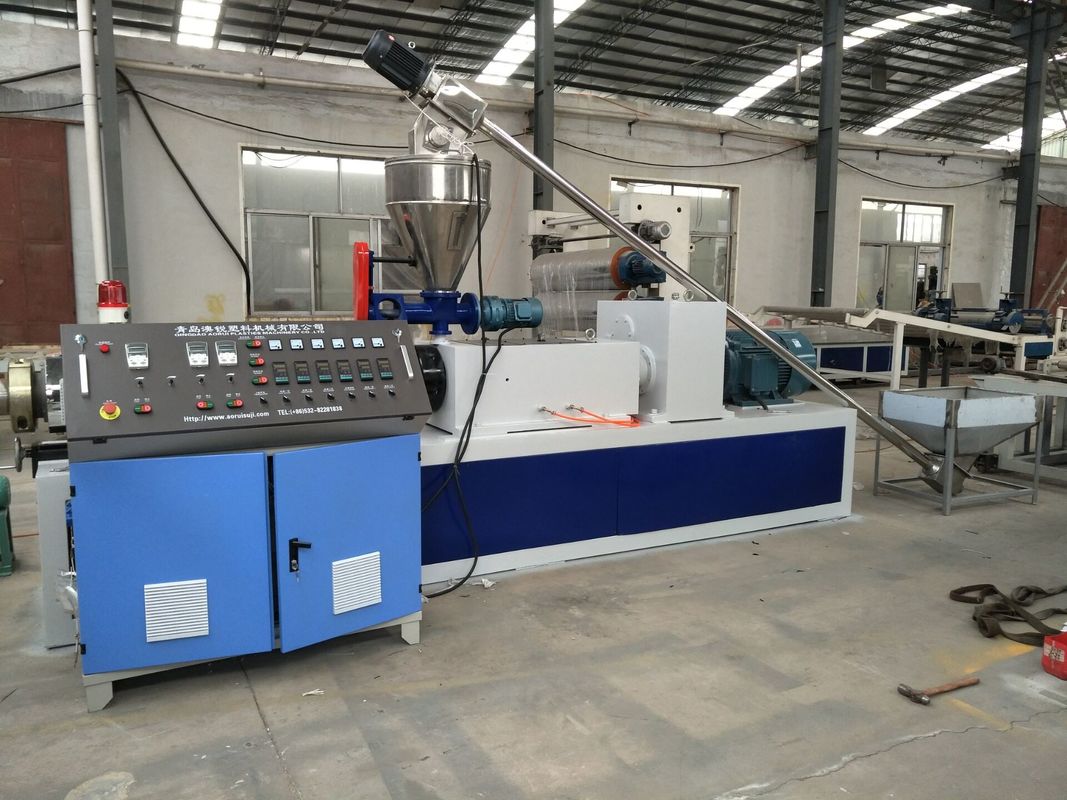

Large Image :  Single Screw Pvc Plastic Granules Making Machine With One Year Warranty

Product Details:

Place of Origin: China
Brand Name: AORUI
Certification: CE UL CSA
Model Number: SJSZ80/156

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month
Contact Now
Detailed Product Description
Condition: New Automatic Grade: Fully Automatic
Screw Design: Single Screw Inverter: ABB
Capacity: 100kg/h-1000kg/h Warranty: 1 Year
Certificate: CE ISO9001 After-sales Service: Engineers Availiable To Service

PVC Plastic Granules Machine , PVC Granules Pelletizer , PVC Granules Making Machinery





QUICK DETAIL:



 Process flow:

Raw material+ additive → Mixing → Conveying feeding → Force feeding → Conical twin screw extruder → Blowing hot-cutting mould → Cyclone separator → Vibrating screener → Blowing system → Storage hopper → Finished product packing



Description:



1. We have different producing lines for various materials production process, such as plastic recycling, mixing nature-changing, filling nature-changing, functional machine pellets,colored machine pellets, intensified glass fibers and carbon fibers, various cables, special materials, reaction extruding, exhausting and volatilization,and powder paint.

2. Filler masterbatch is composed of various additives, filler(example:CaCo3, Talc,Titanic,etc) and a small amount of plastic resin carrier,produced by mixer, recycle plastic granules making machine price and pelletizing.In order to facilitate the operation during plastic molding,blowing process.

3. Application
1 Modification of engineering-plastics
2 Polyolefin/TPE filled with Alloy
3 Dyeing in Polyolefin/engineering-plastic
4 Color masterbatch, flame masterbatch, filler masterbatch and additive masterbatch
5 Reproduce recycled plastic
6 PVC compounding





Specifications:

Model screw diameter (mm) L/D Capacity (kg/h) Main motor power(kw)

Total power

(kw)

Line length

(m)

SJZ51 51/105 14.5:1 120 18.5 70 12
SJZ65 65/132 14.6:1 200 37 100 14
SJZ80 80/156 15.25:1 350 55 150 16
SJZ92 92/188 17.86:1 600 90 200 18



Application of PVC granulating plastic machine:

With different designs of screw, this machine can be applied to granulate the recycled material of rigid PVC, soft PVC and waste PVC. It can be stopless in the course of production.It used pneumatic conversion and strong-wind blowing. At the same time can adjust stainless steel storage container and can run at high speed for a long time while extrude stably.



Our company competitive advantages:

experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology

Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.

After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.
