Product Details:
|
| Brand Name: | Aorui | Model Number: | SJSZ65/132 |
|---|---|---|---|
| Automatic Grade: | Fully Automatic | Warranty: | 1 Year |
| Screw Design: | Two | Original: | Shandong , China |
| Condition: | New | Raw Material: | PVC |
| Voltage: | 380V 50HZ | ||
| High Light: | plastic extruder machine,plastic production line |
||
Water Supplying Plastic Pipe Extrusion Line , Pvc Pipe Extrusion Machine
PVC Water Supplying Pipe Extrusion Line , PVC Plastic Pipe Extruder Making Machinery , PVC Plastic Pipe Production Line
Quick Details:
1. PVC pipe production line of the process
PVC powders + Additives+Calcium powder → Mixing → Feeding → Forced Feeding → Conical Twin Screw Extruder → Extrusion die-head and Mold → Calibrator → Spraying Vacuum Forming Tank → Water Cooling Tank → Ink Printing Machine → Haul-Off Machine → cutting machine → pipe stacking machine → finished product testing packaging.
2. PVC pipe production line features:
PVC pipe production line is mainly used for the production of agricultural water supply and drainage pipes, construction and drainage pipes, and cable and so on. The unit uses advanced and unique design concept to ensure the efficient extrusion of PVC powder, combined with a unique plastic design of the screw design to ensure that the plastic raw materials uniform, high-yield production.
Description:
1. This pvc pipe production line is our new product designed and developed by ourselves on the basis of bringing in foreign advanced technology and according to practical home situation. PVC rigid pipe has the features of strong rigidity, light weight, convenient construction and so on. It is widely used in the project fields of building, drainage and supply water, cable and so on.
2. Equipment configuratiion:

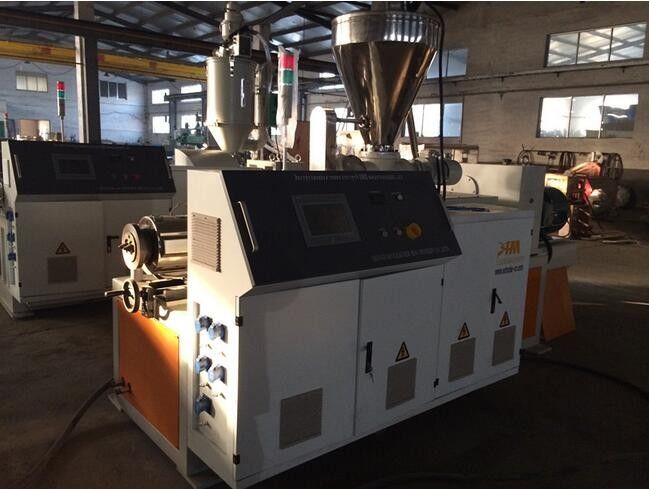

1) SJ-51/105 PVC special extruder

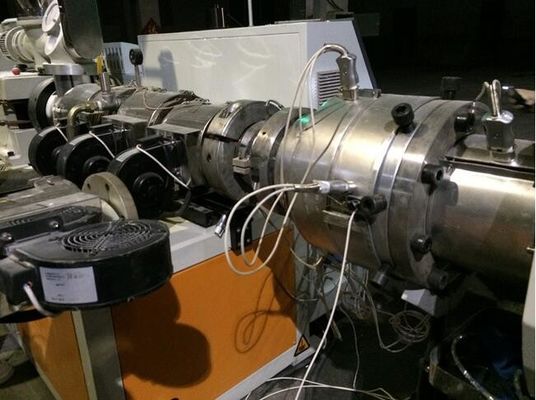

2) Two pipe extrusion mould die(20mm-40mm)

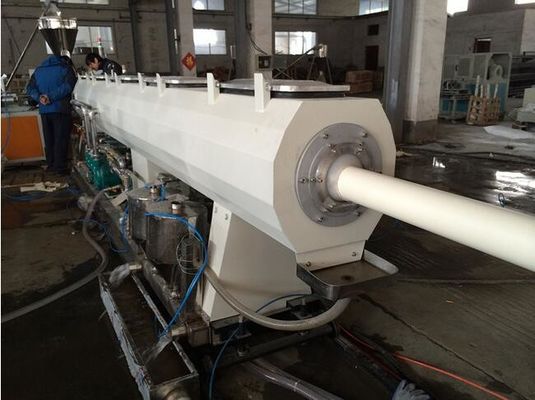

3) SZDX-6000 vacuum calibrating water trough

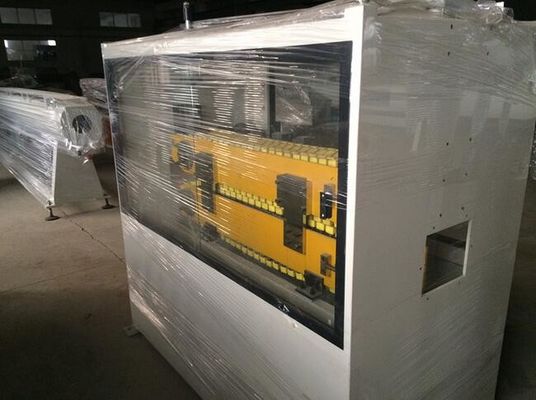

4) SLQ-114 twin-pedail style puller
5) SY-114 pneumatic cutter
6) SFZ-6000 stacker
7) Control cabinet
3. The extrusion line can produce pressure water pipes, drainage pipes, industrial pipes and cables duct. The screw structure for the corresponding designed to meet the processing of high filling material(Caco3) pipe requiement, according to the use of pipe, change molds and the corresponding auxiliary equipment, can be processed produce UPVC pipe,CPVC pipe, PVC-M pipe, PVC-O pipe, foam core layer pipe, foam inside the spiral hollow wall spiral pipe.
Technical parameters:
| Model | Screw diameter | L/D | Pipe range | Capacity | Main motor power | Total power | Line length |
| PVC63 | 51/105 | 14.5:1 | 16-63 | 80-120 | 18.5 | 50 | 22 |
| PVC160 | 65/132 | 14.5:1 | 75-160 | 200-250 | 37 | 100 | 22 |
| PVC250 | 65/132 | 14.5:1 | 110-250 | 200-250 | 37 | 120 | 30 |
| PVC315 | 80/156 | 15.25:1 | 160-315 | 300-400 | 55 | 200 | 30 |
| PVC450 | 80/156 | 15.25:1 | 200-450 | 300-400 | 55 | 220 | 36 |
| PVC630 | 92/188 | 17.86:1 | 315-630 | 400-800 | 90 | 350 | 42 |
Competitive Advantage:
1. Good pre-sales and after-sales service
2. Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment.
3. Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.
