Product Details:
|
| Brand Name: | Aorui | Model Number: | SJSZ80/156 |
|---|---|---|---|
| Motor: | Siemens | Screw Number: | Two |
| Frequency Control: | ABB | Temperature Controller: | Omron |
| Port: | Qingdao | Original: | Shandong , China |
| High Light: | wpc pvc foam board machine,wpc board production line |
||

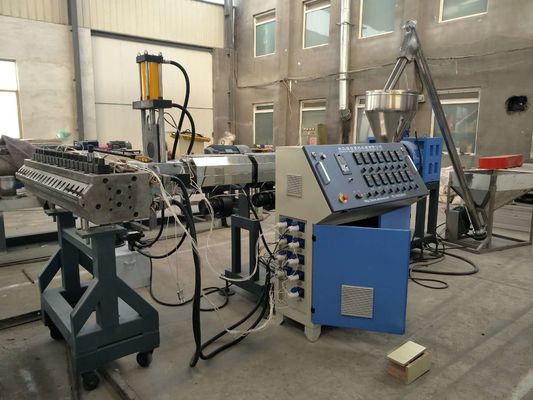

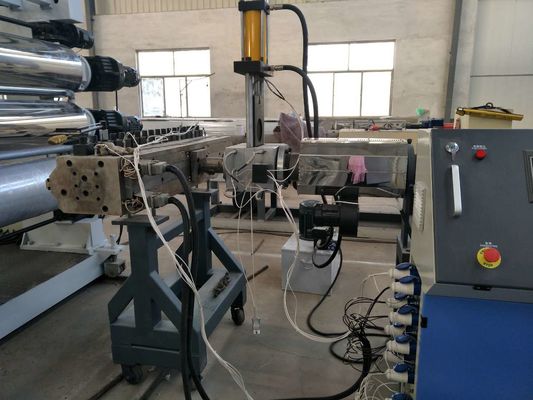

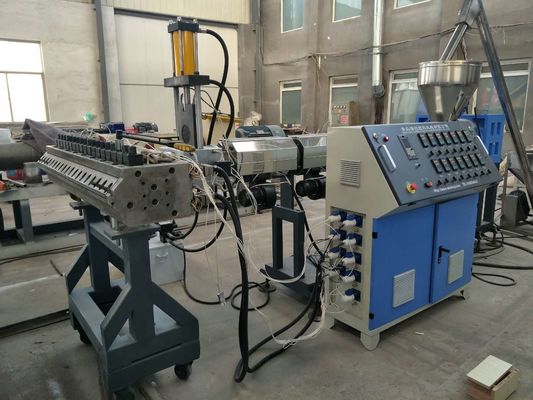

WPC Foam Board Production Line , WPC Foam Board Machine , PVC WPC Crust Foam Board Making Machinery
Quick detail:
1. WPC extrison line: It adopts special design of screw & barrel, mould and extruder for wood plastic products.Aorui company products series:One step way thick board extrusion line,One step way WPC profile extrusion line;WPC pelletizing extrusion line and different kinds of WPC mould.
2. The WPC products can be produced by two step extrusion machine, or pelletizing first then through extrison machine, it will save power and place,it has some feature: high output,stable extrusion pressure,high plastication, and good mixing.
Description:
1. WPC Foam Board Production Line has such characteristics as high impact resistance , high rot resistance , high temperature resistance , non-toxic , smooth surface , light , easy to thermoform . etc.
2. Applications: Such as wire plate, environment protection material , venting equipment , semiconductor equipment , etc. Production scope: thickness: 1-30mm, width: 3000mm.
3. This production line adopt the special-designed conical twin screw extruder.The production line mainly consist of host extruder,die mould,Vacuum forming platform,water tank ,haul-off machine,stacker and so on. The host extruder adopt computerized PLC control panel,Japanese RKC temperature controller,ABB speed governor,SIMENS contactor and so on.
Specifications:
|
Model
|
SJSZ-51
|
SJSZ-55
|
SJSZ-65
|
SJSZ-80
|
SJSZ-92
|
|
Screw dia.(mm)
|
51/105
|
55/110
|
65/132
|
80/156
|
92/188
|
|
Max speed(rmp)
|
40
|
38
|
38
|
37
|
36
|
|
Main motor(kw)
|
18.5
|
22
|
37
|
55
|
90
|
|
Capacity(kg/h)
|
80~100
|
100~150
|
150~250
|
250~380
|
380~700
|
|
Center height(mm)
|
1050
|
1050
|
1050
|
1050
|
1100
|
|
Net weight(kg)
|
3000
|
3500
|
4000
|
5500
|
8000
|
|
L*W*H(m)
|
3.6x1.1x2.1
|
3.6x1.1x2.1
|
4.2x1.5x2.4
|
4.7x1.5x2.4
|
6x1.6x2.5
|
Competitive Advantage:
1. Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment.
2. Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan.
3. About the equipment, Middle tech promised the good quality of 12 month.
