CE WPC Foam Board Machine , Twin Screw Wpc Board Production Line Extruder

China CE WPC Foam Board Machine , Twin Screw Wpc Board Production Line Extruder supplier
CE WPC Foam Board Machine , Twin Screw Wpc Board Production Line Extruder supplier CE WPC Foam Board Machine , Twin Screw Wpc Board Production Line Extruder supplier CE WPC Foam Board Machine , Twin Screw Wpc Board Production Line Extruder supplier CE WPC Foam Board Machine , Twin Screw Wpc Board Production Line Extruder supplier

Large Image :  CE WPC Foam Board Machine , Twin Screw Wpc Board Production Line Extruder

Product Details:

Place of Origin: China
Brand Name: AORUI
Certification: CE UL CSA ISO9001
Model Number: SJSZ80/156

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C Western Union
Supply Ability: 10 Sets per month
Contact Now
Detailed Product Description
Condition: New Screw Number: Double Screw
Certificate: CE ISO9001 Automatic Grade: Fully Automatic
Voltage: 380V 50HZ After-sales Service: Engineers Availiable To Service
Motor: Siemens Brand Name: Aorui

WPC Foam Board Machine / WPC Twin Screw Extruder Plastic Foam Board Production Line





Quick detail:



1. Description of wood plastic hollow door board production line:

Material: PVC resin+wood powder+calcium carbonate+other nontoxic additives.

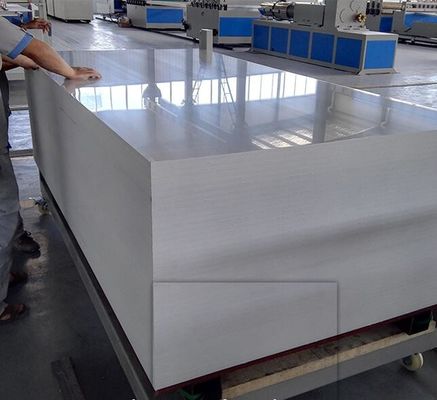

Finished product:
Size: 600mm, 800mm,1000mm,1200mm
Thickness:5mm-30mm
Use for Door ,Wall decoration, kitchen cabinet , construction board, advertising board ,furniture



2. The application of PVC Free Foamed Sheet



Transportation: Such as steamship, aeroplane, carriage, train compartment, roof shed, case core layer, inner upholster, etc.



Architecture: Such as building wall board, decoration board, housing, office, public building interlayer, commercial decoration shelf, non-dust room board, ceiling plate, etc.

Advertisement: Such as screen printing, computer lettering, ad board, etc.











Description:



1. The device is optimized design, with reference to the latest foreign technology.Good plasticizing, high output, long life and other advantages.The unit by the conical twin-screw extruder, vacuum calibrating bench, tractor, cutting machine, sticker machine, stacking frame, etc.



2.  Conical double screw extruder SJSZ-80/156

A) Output: 300-400kg/h
B) Transmission system:
High torque output vertical reducer gear box
Structure: Vertical
Provided with outside-circulation cooling system
Imported thrust bearing and high-torque output
Material of Gear: 20CrMnTi, with gear grinding technical treatment and cementite

Mold
A) Structure: Special design for PVC WPC board
B) Width of die: 1400mm
C)Thickness: 12-20mm
D) Material: 5CrNiMo, high quality alloy

Vacuum calibrating and forming table
Max. Calibrating width: 1450mm
Calibrating table length: 2000mm
Vacuum pump power: 5.5kw*2 units
Max. Exhausting volume: 80m3/min
Water pump power: 4kw









Specifications:



Model
SJSZ-51
SJSZ-55
SJSZ-65
SJSZ-80
SJSZ-92
Screw dia.(mm)
51/105
55/110
65/132
80/156
92/188
Max speed(rmp)
40
38
38
37
36
Main motor(kw)
18.5
22
37
55
90
Capacity(kg/h)
80~100
100~150
150~250
250~380
380~700
Center height(mm)
1050
1050
1050
1050
1100
Net weight(kg)
3000
3500
4000
5500
8000
L*W*H(m)
3.6x1.1x2.1
3.6x1.1x2.1
4.2x1.5x2.4
4.7x1.5x2.4
6x1.6x2.5









Competitive Advantage:



  • 24 hours services;
  • Overseas installation;
  • Free operation training and technology formula transfer;
  • Old machine update;
  • Spare parts and maintenance with reasonable cost price.

CE WPC Foam Board Machine , Twin Screw Wpc Board Production Line Extruder
