380V 50hz Wpc Foam Board Machine , Pvc Foam Sheet Making Machine Fully Automatic

China 380V 50hz Wpc Foam Board Machine , Pvc Foam Sheet Making Machine Fully Automatic supplier
380V 50hz Wpc Foam Board Machine , Pvc Foam Sheet Making Machine Fully Automatic supplier 380V 50hz Wpc Foam Board Machine , Pvc Foam Sheet Making Machine Fully Automatic supplier 380V 50hz Wpc Foam Board Machine , Pvc Foam Sheet Making Machine Fully Automatic supplier 380V 50hz Wpc Foam Board Machine , Pvc Foam Sheet Making Machine Fully Automatic supplier

Large Image :  380V 50hz Wpc Foam Board Machine , Pvc Foam Sheet Making Machine Fully Automatic

Product Details:

Place of Origin: China
Brand Name: AORUI
Certification: CE UL CSA ISO9001
Model Number: SJSZ80/156

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C Western Union
Supply Ability: 10 Sets per month
Contact Now
Detailed Product Description
Brand Name: Aorui Automatic Grade: Fully Automatic
Voltage: 380V 50HZ Raw Material: WPC
After-sales Service: Engineers Availiable To Service Certificate: CE ISO9001

WPC Foam Board Production Line / PVC WPC Foam Sheet Making Machinery / WPC Foam Board Extruder


Quick detail:

1. PVC board making Machine

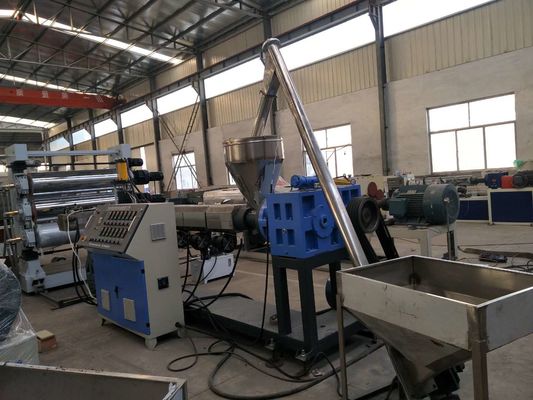

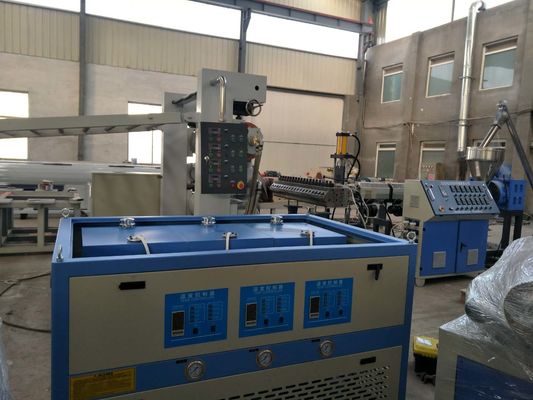

This production line adopt the special-designed conical twin screw extruder.The production line mainly consist of host extruder,die mould,Vacuum forming platform,water tank ,haul-off machine,stacker and so on. The host extruder adopt computerized PLC control panel,Japanese RKC temperature controller,ABB speed governor,SIMENS contactor and so on.

2.  Adopting the Celuka structural-foam process technology, compared with the free foamed board, the skinning foamed board has the features of flattening and smooth surface, strong skinning hardness and stiffness, and better mechanical property.




Description:

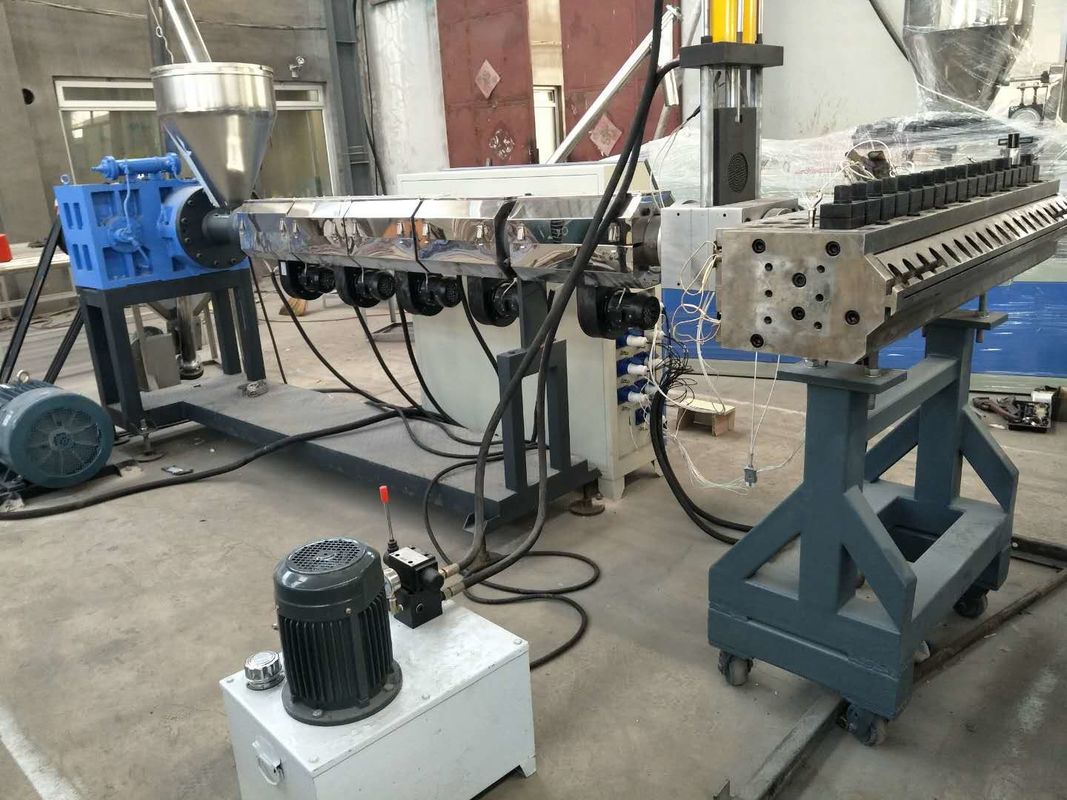

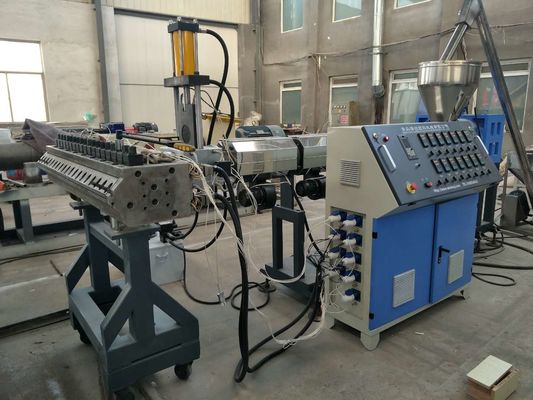

1. WPC Board Making Machine/The PVC WPC skinning foamed board extrusion machine is equipped with the conical double screw extruder, T-type plate mould, vacuum calibrating machine and ten-roller hauling off machine, etc; It will be widely used in many fields.

2. WPC extrison line: It adopts special design of screw & barrel, mould and extruder for wood plastic products.Aorui company products series:One step way thick board extrusion line,One step way WPC profile extrusion line;WPC pelletizing extrusion line and different kinds of WPC mould.

3. Process flow of pvc wpc foamed board production line
Raw material + Wood powder + Additive → Mixing → Granules → Conical twin screw extruder → Profile extrusion mould → Cooling molding die → Vacuum calibrating table → Haul off → Cutter → Tilting stacker→Finished products inspecting and packing



Specifications:


Model
SJSZ-51
SJSZ-55
SJSZ-65
SJSZ-80
SJSZ-92
Screw dia.(mm)
51/105
55/110
65/132
80/156
92/188
Max speed(rmp)
40
38
38
37
36
Main motor(kw)
18.5
22
37
55
90
Capacity(kg/h)
80~100
100~150
150~250
250~380
380~700
Center height(mm)
1050
1050
1050
1050
1100
Net weight(kg)
3000
3500
4000
5500
8000
L*W*H(m)
3.6x1.1x2.1
3.6x1.1x2.1
4.2x1.5x2.4
4.7x1.5x2.4
6x1.6x2.5





Competitive Advantage:

1) We give you suitable suggestions according to your actual need.
2) Technical support: long available life
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
