PE Plastic Pipe Extrusion Machine , Carbon Spiral Pipe Plastic Tube Making Machine

Plastic Pipe Extrusion Line / PE Plastic Pipe Making Machinery / PE Carbon Spiral Pipe Production Line

Quick detail:

Features of PE carbon spiral reinforcing pipe machine for sale :

1. PE carbon spiral reinforcing pipe machine for sale has Single screw extruders especially used for poly olefine material possess effective plasticizing effect and high extrusion speed

2. The special detachment type mixing screw and the standard designed die with spiral structure & reasonable channel are applicable to produce pipes with smooth inside and outside face

3. Optimal low melting temperature result in little internal pipe stess,smooth inner and outer pipe surface

Process line of PE carbon spiral pipe machine for sale:

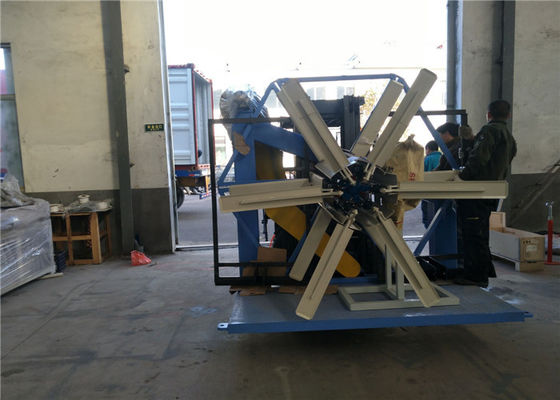

Raw material+ carbon → mixing→ vacuum feeding → material dryness → single screw extruder → steel wire unlocking → extrusion mould→ spiral calibrator → spray vacuum tank → belt haul-off → manual cut → winder → finished product inspecting & packing

Description:

1. Special single screw extruder for polyolefine material, high speed extrusion and effective plasticization.

2. The special detachment type mixing screw and the standard designed die with spiral structure & reasonable channel are applicable to produce the pipe with smooth inside and outside wall,

3. Unique sizing and cooling mode is capable of producing pipe scope 5-200 mm, and the production speed is up to 0.6~1.5m/min.

4. All kinds of polyolefine material, muti-layers spiral strengthening pipe can be co-extruded for various uses, 80% of recycle material can be used in production.

5. Optimum spiral bronze sizing sleeve, pre-cooling and powerful vacuum suction device in the entrance for high speed extrusion of pipes.

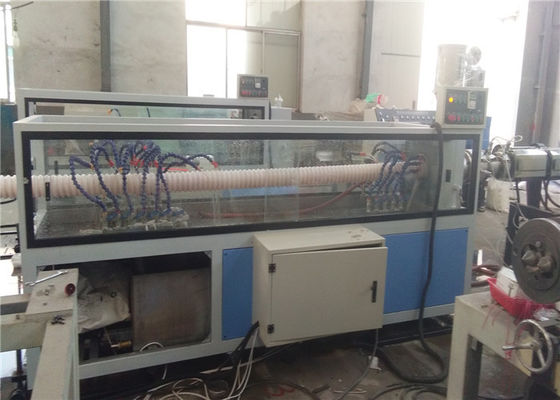

6. Specific design for spray cooling trough

7. Cooling water trough is made of stainless steel.

Specifications:

Competitive Advantage:

• 24 hours services;
• Overseas installation;
• Free operation training and technology formula transfer;
• Old machine update;
• Spare parts and maintenance with reasonable cost price.
