PVC Plastic Profile Extrusion Line / Plastic Profile Foamed PVC Wall Panel Production Line

China PVC Plastic Profile Extrusion Line / Plastic Profile Foamed PVC Wall Panel Production Line supplier
PVC Plastic Profile Extrusion Line / Plastic Profile Foamed PVC Wall Panel Production Line supplier PVC Plastic Profile Extrusion Line / Plastic Profile Foamed PVC Wall Panel Production Line supplier PVC Plastic Profile Extrusion Line / Plastic Profile Foamed PVC Wall Panel Production Line supplier

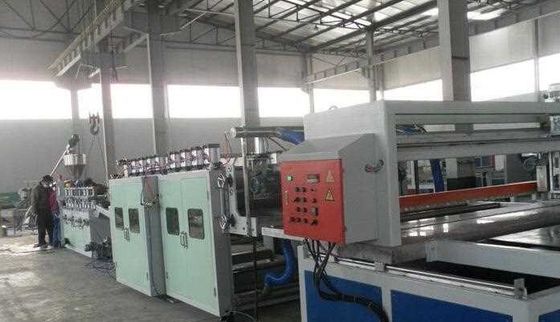

Large Image :  PVC Plastic Profile Extrusion Line / Plastic Profile Foamed PVC Wall Panel Production Line

Product Details:

Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE UL CSA ISO9001
Model Number: SJSZ80/156

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per quarter
Contact Now
Detailed Product Description
Condition: New Screw Design: Double Screw
Brand Name: Aorui Certificate: CE ISO9001
Application: PVC Profile Machine Automatic Grade: Fully Automatic
Place Of Original: Shandong, China Warranty: 1 Year

Plastic PVC Profile Extrusion Line / Plastic Profile Foamed PVC Wall Panel Production Line / Plastic Profile Machinery


Quick detail:

1.  PVC wall panel is now very popular in decoration market, and widely accepted by customers due to a variety of advantages, such as waterproof, flame retardant, acid and alkali, mothproof, lightweight, heat insulation, sound insulation, shock absorption, etc. And it's easy installation, nice looking.

2. The PVC wall panel extrusion line is widely used in wall panel production, with a growing market. The whole process include many steps, in short, mainly as follow: raw materials mixing, extrusion, moulding, calibration and cooling, haul-off, lamination, cutting, stacker.




Specification of pvc wpc Profile Machine:

1.  PVC wall panel production line machine model depends on the panel width. Normally, panel width is 300mm, 400mm, 600mm. If the width is less than 300mm, we suggest model SJZ55, while SJZ65 is suitable for 600mm and less.

2. The PVC profile production line could produce PVC window profile, door frame, board, ceiling, etc. This machine also could produce wood plastic profile ( WPC). To produce PVC profile, you shall have high speed mixer to mix PVC powder, CACO3 and other additives according to your formula.

3. Then feed the mixture to the conical twin screw extruder for the production. The mixed material will be extruded through different molds to produce different shape profiles. Then it will be calibrated to keep the shape by vacuum calibration tank, then haul off and cutting. You could cut different length as you want, 4 meter, 6 meter, etc.


Technical Parameters:


ItemsYF180YF240YF300YF600YF900
Max.width of board(mm)180240300600900
Extruder ModelSJZ55/110SJZ65/132SJZ80/156SJZ92/188
Mian motor power(KW)223755110
Drawing height(mm)150150150150150
Drawing speed(KN)2020203040
Drawing speed(m/s)0-50-50-50-30-2.5
Auxiliary equipment sum power(kw)3535303040
Cooling water consume(m 3 /h)666912
Compression air(Mpa)0.60.60.60.60.6



Equipment warranty:
1. CE ISO9001 Certificate
2. We have more than 15 years experience
3. We are factory,  and welcome to customer to visit our factory
4. Good pre-sales and after-sales service
PVC Plastic Profile Extrusion Line / Plastic Profile Foamed PVC Wall Panel Production Line
