Home ProductsPlastic Profile Extrusion Line

380V 50HZ Plastic PVC Plastic Profile Extrusion Line For PVC Window Profile

Good quality Plastic Pipe Extrusion Line for sales
Good quality Plastic Pipe Extrusion Line for sales
This machine is very good , and the after-saes service is good. The pvc board machine is easy to operate and the output is stable

—— Nancy

The pvc board extrusion machine is good quality , it is beautiful and the output is stable , this is a reliable company

—— Albert

I'm Online Chat Now

380V 50HZ Plastic PVC Plastic Profile Extrusion Line For PVC Window Profile

China 380V 50HZ Plastic PVC Plastic Profile Extrusion Line For PVC Window Profile supplier
380V 50HZ Plastic PVC Plastic Profile Extrusion Line For PVC Window Profile supplier 380V 50HZ Plastic PVC Plastic Profile Extrusion Line For PVC Window Profile supplier 380V 50HZ Plastic PVC Plastic Profile Extrusion Line For PVC Window Profile supplier 380V 50HZ Plastic PVC Plastic Profile Extrusion Line For PVC Window Profile supplier

Large Image :  380V 50HZ Plastic PVC Plastic Profile Extrusion Line For PVC Window Profile

Product Details:

Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE UL CSA ISO9001
Model Number: SJSZ65/132

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per quarter
Contact Now
Detailed Product Description
Condition: New Model Number: SJSZ65/132
Raw Material: PVC After-sales Service: Enginers Availiable To Service
Voltage: 380V 50HZ Contactor: Siemens
Warranty Time: 1 Year Brand Name: Aorui

Plastic PVC Plastic Profile Extrusion Line For Window / Machine Manufactures For PVC Window Profile



Quick detail:

1. Process

Waste materiial crusher→Mill Machine → (Raw material)Mixer Unit → Double Screw Extruder → mould → vacuum calibration platform → hot-stamping machine → haul-off & cutter → pipe discharging rack


2. Our Features

SJZ series cone twin-screw extruders are specially for various PVC powder materials. Mated with different moulds and auxiliary machinery, they can produce various PVC plastic pipes, profile materials, board materials, sheets, bars, and granulating materials.






Specification of pvc wpc Profile Machine:

1. Product: PVC Profile Extrusion Machine

The PVC profile extrusion line could produce PVC window profile, door frame, wall panel, board, ceiling, etc. This machine also could produce wood plastic profile ( WPC). High quality, good price and reliable performance. Please don't be hesitate to contact us for more details. And we also warmly welcome you to visit our factory.



2. The screw adopts oil cooling system while the barrel adopts air cooling system. The system is controlled by dedicated computers. According to customer requirements, most reasonable screws can be configured to achieve optimal plasticization and logistic quality.



3. The PVC Profile production line includes the below machines;

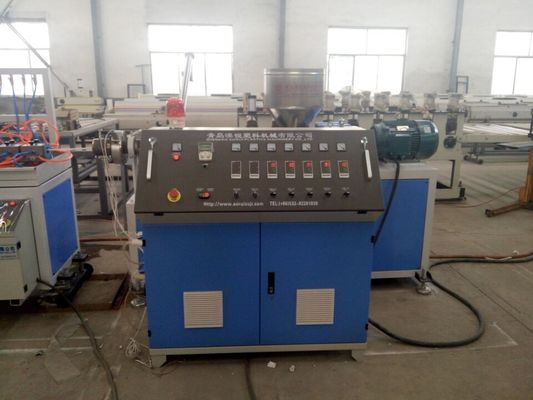

1. Conical Twin Screw Extruder

2. Extrusion Mold ( The buyer shall prepare the drawing to make the mold)

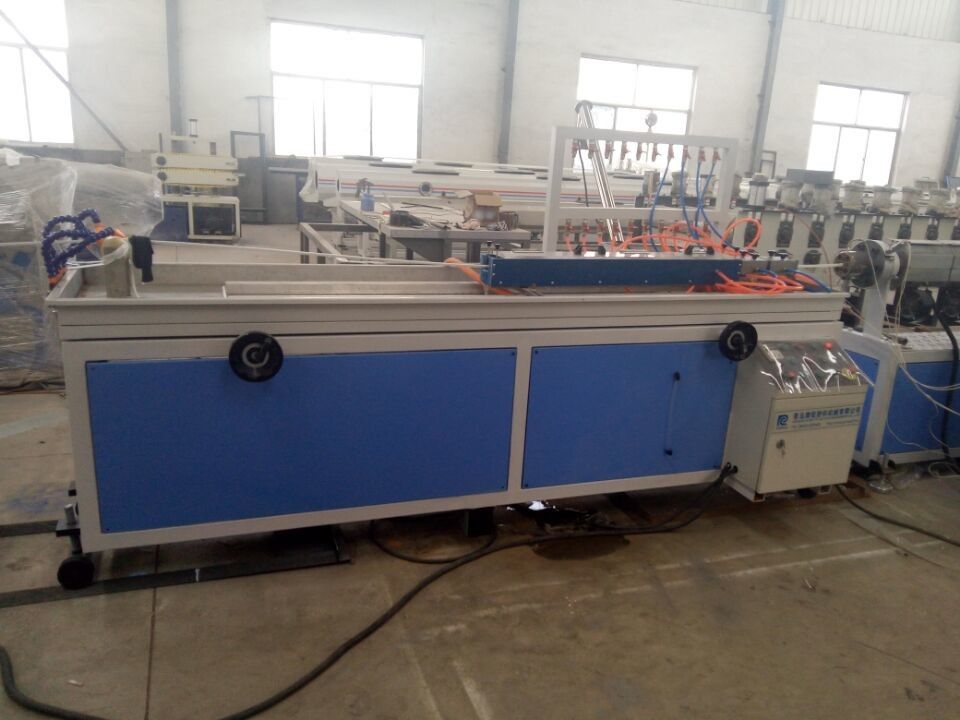

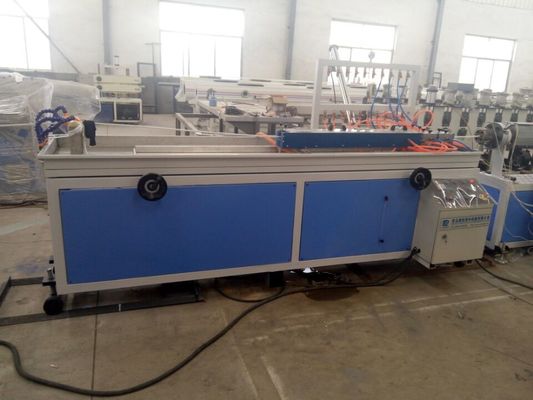

3. Vacuum Calibration Table

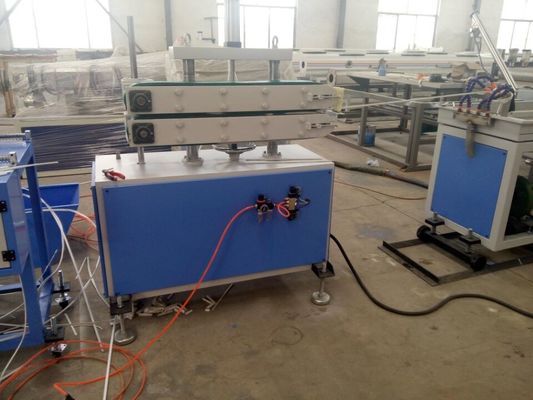

4. Haul Off and Cutter

5. Stacker

6. PVC Mixer ( for raw material preparation)

7. Crusher and Milling Machine ( for recycle the waste and could reuse for profile production)






Technical Parameters:

Items YF180 YF240 YF300 YF600 YF900
Max.width of board(mm) 180 240 300 600 900
Extruder Model SJZ55/110 SJZ65/132 SJZ80/156 SJZ92/188
Mian motor power(KW) 22 37 55 110
Drawing height(mm) 150 150 150 150 150
Drawing speed(KN) 20 20 20 30 40
Drawing speed(m/s) 0-5 0-5 0-5 0-3 0-2.5
Auxiliary equipment sum power(kw) 35 35 30 30 40
Cooling water consume(m 3 /h) 6 6 6 9 12
Compression air(Mpa) 0.6 0.6 0.6 0.6 0.6



Our company competitive advantages:

  • 24 hours services;
  • Overseas installation;
  • Free operation training and technology formula transfer;
  • Old machine update;
  • Spare parts and maintenance with reasonable cost price.

380V 50HZ Plastic PVC Plastic Profile Extrusion Line For PVC Window Profile
