Product Details:
|
| Model Number: | PET90 | Confition: | New |
|---|---|---|---|
| Voltage: | 380V 50HZ | Automatic Grade: | Fully Automatic |
| After-sales Service: | Engineers Availiable To Service | Certificate: | CE ISO9001 |
| Plastic Processed: | PET | Main Motor: | Siemens |
| High Light: | Strapping Band Making Machine,Strap Making Machine |
||
PP PET Strapping Band Machine , PP PET Packing Belt Strap Band Production Line , PET Drawbench Extrusion Machinery
Quick detail:
1. PET/PP packing belt/rigid strapping tape/packaging goods.
Quality:High and guarantee
Multipurpose: By hand or by machine,
Multicolor: Various
Delivery :Timely and Accurately
2. Feature & safety of pet strap band :
2.1. Safety Food Grade Material & Ink, Eco-friendly packaging;
2.2. High temperature, freezer & pressure resistance;
2.3. Leak proof and moisture proof;
2.4. reclose and easy to open;
2.5.China Customizable Bags Manufacture;
Description:
1. Components of pp pet packing belt machinery:

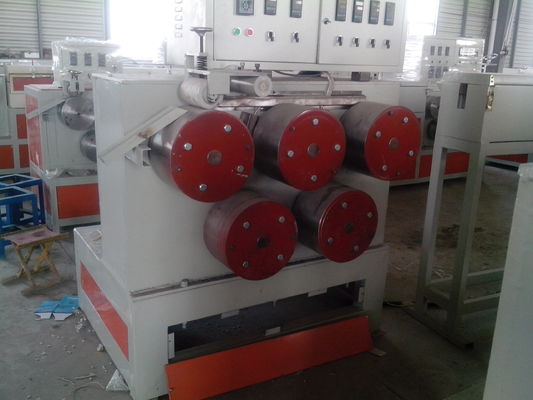

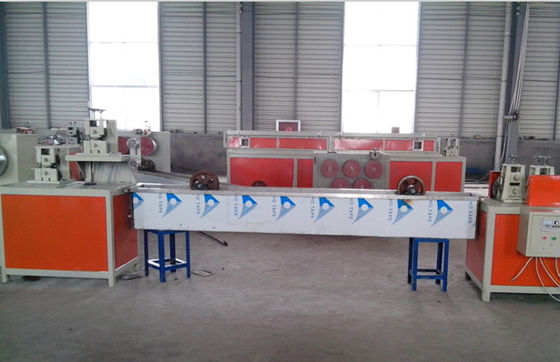

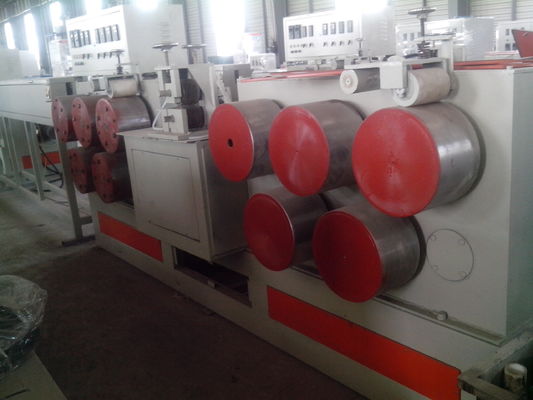

PET Strap Production Line consists of dehumidifying and crystallizing system, extruder, screen changer, mold, oven, haul-off, and winder, etc.
2. Production Process of PET Machinery
Material→ Dehumidifying and Crystallizing → Extruding → Mold → Cooling → Haul-off →Oven Heating →Pre-heating → Drawing and Stretching →Drawing and Stretching → Embossing →Hot Forming → Drawing → Winding
3. Application
With 100% bottle flakes recycled material, to produce various specifications of PET strap. It has been widely used in steel, chemical industry, aluminum, paper making, brick kiln, tobacco, electronics and textile and timber industries.
Technological parameter:
| Model | SJ-65 | SJ-75 | SJ-90 |
| Extruder | SJ-65/30 | SJ-75/33 | SJ-90/33 |
| Productivity | 60-100kg/h | 80-120kg/h | 120-150kg/h |
| Drive Motor | 22kw | 30kw | 55kw |
| Two-station Winder | 60-120m/min,adjustable | ||
| Strap Size | Width:5mm-20mm | Width:10mm-25mm | Width:20mm-35mm |
| Thickness:0.36mm-1.0mm | Thickness:0.5mm-1.3mm | Thickness:0.5mm-1.8mm | |
| Installed Capacity | about80kw | about 90kw | about110kw |
| Line Dimension | 30m×2m×2.2m (L×W×H) | 30m×3m×4.5m (L×W×H) | 30m×5m×6m (L×W× |
Our company competitive advantages:
1) We give you suitable suggestions according to your actual need.
2)experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology.
3) Provide on-site installation guide; Responsible for the commissioning of equipment; Responsible for the buyer's personnel mount guard before the operation and maintenance training;
