Product Details:
|
| Brand Name: | Aorui | Condition: | New |
|---|---|---|---|
| Screw Design: | Double Screw | Automatic Grade: | Fully Automatic |
| Raw Material: | PVC | Voltage: | 380V 50HZ |
| After-sales Service: | Engineers Availiable To Service | Warranty: | 1 Year |
| High Light: | plastic sheet production line,plastic sheet extruder machine |
||
PVC Plastic Sheet Extrusion Line / PVC Plastic Sheet Making Machine Production Line / Plastic Sheet Extruder
Quick Detail:

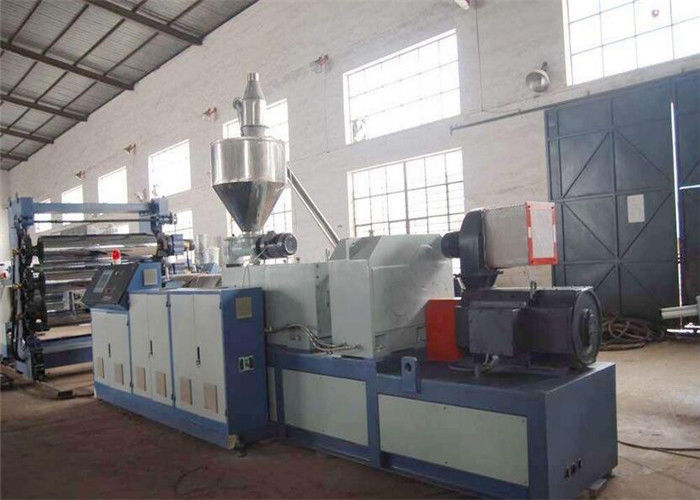

1. Aorui series laboratory precise sheet extrusion line consist of a Lab Precise Single Screw Extruder, a Molding System, a Lab Precise Three Roller Calendar, a Haul-off & Winding Machine, a Cutting Machine (optional) and a SIEMENS PLC Touching Screen Control System. It is applicable for PMMA, PE, PP, PVC, PS, PET, etc.
2. This line is specially used for producing PP/PE single layer or multi-layer sheet or plate, suitable in the fields of packaging, stationery, chemicals, construction, household appliances and so on.
3. Usual sheet width:
700, 900, 1020, 1200, 1300, 1400, 1500, 1700, 1800, 2100, 2200mm
Usual sheet thickness:
0.5-2mm, 1.5-10mm, 6-20mm, 3-30mm
Description:

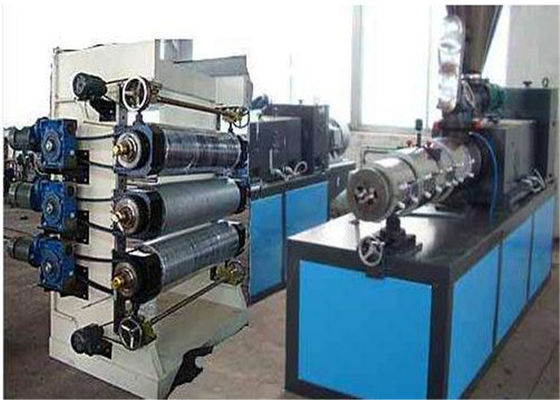

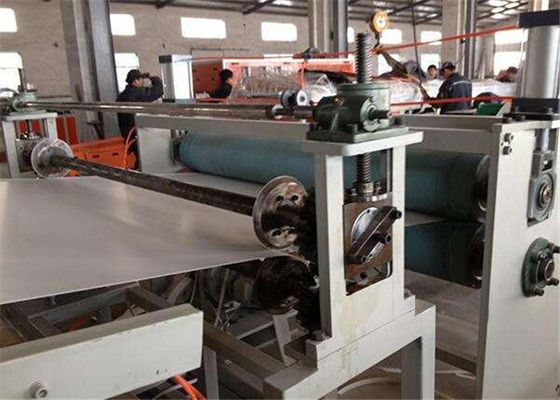

1. Features of PVC Sheet Production Line: The Lab Precise Three Roller Calendar is vertical designed with one variable speed control motor for the three rolls. The base of the middle roll is fixed and the upper roll and lower roll could move up and down. The bases of the rolls are linear slide driven with manual press devices and could be adjusted slightly to ensure the accuracy of tape thickness.
2. DETAILED FEATURES
2.1. Screw apply special design of mixing and plasticization funtion;
2.2. Coat hanger type die withtwo throttle design enalble to regulate the sheet thickness accurately;
2.3.Sheet thicknes shall be regulated by screw and pressing roller;
2.4. Separete roller temperature control system can make even sheet thickness
2.5. Winder withbig torque motor, regulate its speed and tension force;
2.6. Automatic metering device can pre-set the length of product.
Applications:
1 . The sheet made by the sheet production line is mainly widely used in construction decoration, toilet ware, inside decoration of vehicles, boxes and bags, medicine, chemical .etc
2 . The stability of the machine production line is improved greatly by our group .
3 . Food stuff package, building materials, decoration and daily necessities.
Specifications:
|
Model |
Unit |
TYJB-75 |
TYJB-90 |
TYJB-110 |
|
Material applied |
PP,PS,PE |
|||
|
Width of sheet |
mm |
≤600 |
≤750 |
≤1100 |
|
Thickness of sheet |
mm |
0.2-1.6 |
0.2-2.0 |
0.2-2.0 |
|
Extrusion capacity |
kg/h |
60-100 |
100-150 |
150-200 |
|
Diameter of screw |
mm |
75 |
90 |
105 |
|
Installed capacity |
kw |
75 |
90 |
120 |
Competitive Advantage:
1. High temperature resistance
2 . high output
3 . Have many years experience
