Product Details:
|
| Brand Name: | Aorui | Raw Material: | PET PP |
|---|---|---|---|
| Warranty: | 1 Year | Screw Design: | Single Screw |
| Place Of Original: | Shandong , China | Condition: | New |
| Certificate: | CE ISO9001 | ||
| High Light: | Strapping Band Making Machine,Strap Making Machine |
||

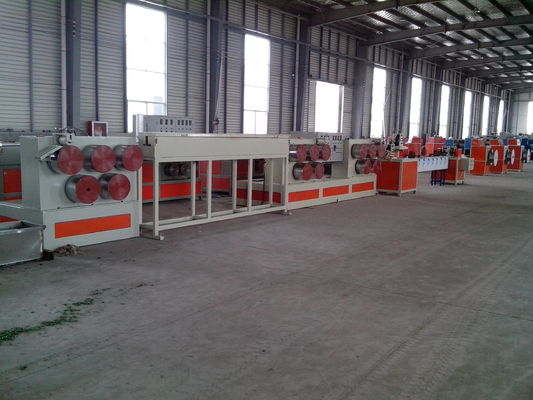

PET PP Strapping Band Machine , PET Packing Belt , Drawbench Production Line , PET PP Strap Band Machinery
Quick detail:
1. Strapping Band Making Machin is applied to directly make into manual, semi-automatic and full-automatic used pp strapping band featuring super wide, slim or narrow, transparent, dying and lettering onto strapping band. It currently has the highest Performance Price Ratio (PPR) and acts with more competitiveness.
2. Product Application of PET PP Straps Belt Band Extrusion Making Machine for Packing
PP/PET Straps Band Extrusion Machinery for PP PET Strap Band is mainly used in packing ,The screw diameter range from Φ75mm to Φ100mm, will be some different according to the detailed reuqirements.
Description:
1. Features:
(1) high tensile strength, both strip-like tensile strength, but also can impact scalability, better ensure transportation safety products.
(2) Small elongation, elongation rate is one-sixth of polypropylene tape, can long maintain the tension.
(3) temperature resistance, melting point of 260 degrees, 120 degrees below the use of deformation.
(4) safety, without risk of pollution rusty steel tied objects, bright colors to be learned.
(5) economic good, one ton PET packaging belt length equivalent to 6 tons with the specifications of the strip length, unit price per meter more than 40% lower than steel, to reduce packaging costs.
2. i. Extrusion machine. Main machine equips with one screw (diameter 80-100mm); machine head is right-angle with electric heat.

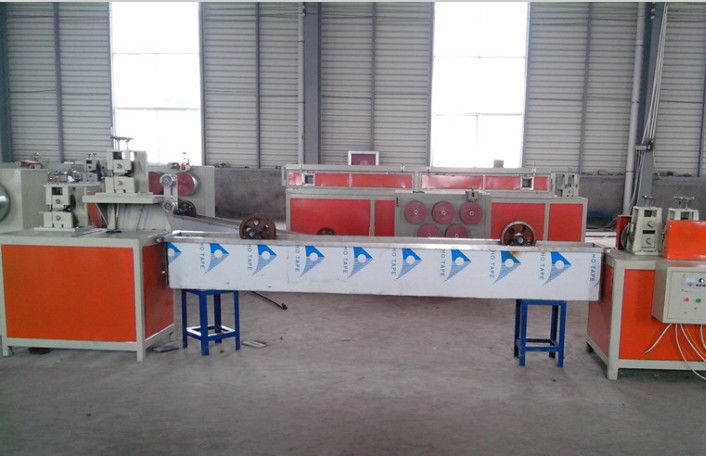

ii. Cooling tank. Extended tank shall assure the cooling capacity for different product and make strip attain the optimal extension in the course of molecules orientation.

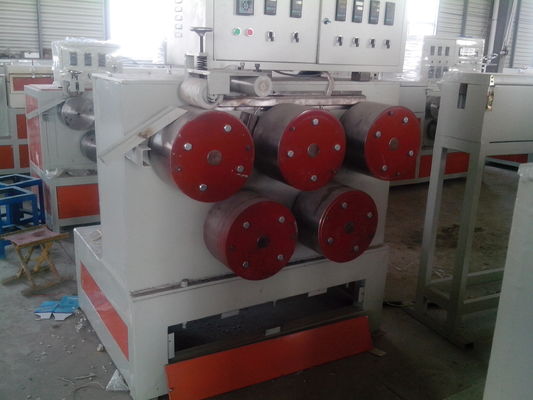

iii. Traction machine. It applied to use bi-directional extension device, traction relied on the traction roller with female screwed and gantry pressed double-roller. Two non-step speed-regulating devices are respectively used to adjust for roller rotation speed to form different linear speeds in two forward or backward extension rollers.
iv. Extension slot. It commonly adopts wet extension, featuring water shower after electric heat and infrared heat.
v. winding machine. Strapping Band Making Machin equips with single-plate winding machine, mainly applied to make into manual, semi-automatic and full-automatic used strapping band.
Technological parameter:
| Model | SJ-65 | SJ-75 | SJ-90 |
| Extruder | SJ-65/30 | SJ-75/33 | SJ-90/33 |
| Productivity | 60-100kg/h | 80-120kg/h | 120-150kg/h |
| Drive Motor | 22kw | 30kw | 55kw |
| Two-station Winder | 60-120m/min,adjustable | ||
| Strap Size | Width:5mm-20mm | Width:10mm-25mm | Width:20mm-35mm |
| Thickness:0.36mm-1.0mm | Thickness:0.5mm-1.3mm | Thickness:0.5mm-1.8mm | |
| Installed Capacity | about80kw | about 90kw | about110kw |
| Line Dimension | 30m×2m×2.2m (L×W×H) | 30m×3m×4.5m (L×W×H) | 30m×5m×6m (L×W× |
Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
