Product Details:
|
| Brand Name: | Aorui | Condition: | New |
|---|---|---|---|
| Screw Design: | Double Screw | Power: | 37kw |
| Certificate: | CE ISO9001 | Product Type: | Pvc Profile |
| Application: | Plastic Profile | Voltage: | 380V 50HZ |
| High Light: | Plastic Profile Extrusion Machine,Plastic Profile Extruder |
||

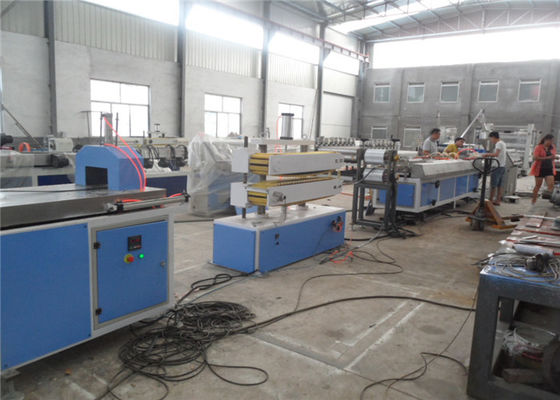

PVC WPC Window and Door Profile Production Line / PVC Plastic and Wood Foamed Profile Extrusion Machine
Quick detail:
1. PVC/WPC door and window profile production line
2. Needless granulating of materials, mixed with wood powder, the material can be directly used to extrude wood-plastic profiles.
Suitable material: PE, PP + wood powder, PVC + wood powder
Specification of pvc wpc Profile Machine:
1. The machine can produce PE PP or PVC and wood profile products. These products are mainly applied for making pallets, packing cases, floors, wall decoration materials and other wide applications. The wood powder or plant fiber can be put up tp max,50-75%. This machine can produce the PP PE PVC ABS PS and etc.
2. Process Flows:
Plant fiber (20-40 mesh) + recycled plastic(PE/PP) + additives
high speed heating mixer --WPC granule extrusion line --PE WPC profile production line-- finished productsanding/brushing/embossing surface treatment crusher for recycle
3. Equipment List of PVC profile production line:

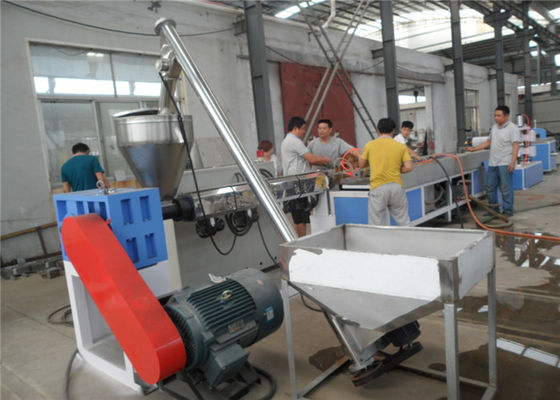

1. Twin Screw Extruder
2. Extrusion Mold

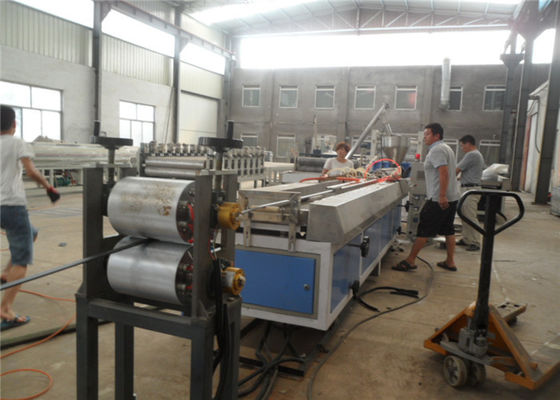

3. Calibration unit+ Haul-off Machine+ cutter+ stacker
Technical Parameters:
| Items | YF180 | YF240 | YF300 | YF600 | YF900 |
| Max.width of board(mm) | 180 | 240 | 300 | 600 | 900 |
| Extruder Model | SJZ55/110 | SJZ65/132 | SJZ80/156 | SJZ92/188 | |
| Mian motor power(KW) | 22 | 37 | 55 | 110 | |
| Drawing height(mm) | 150 | 150 | 150 | 150 | 150 |
| Drawing speed(KN) | 20 | 20 | 20 | 30 | 40 |
| Drawing speed(m/s) | 0-5 | 0-5 | 0-5 | 0-3 | 0-2.5 |
| Auxiliary equipment sum power(kw) | 35 | 35 | 30 | 30 | 40 |
| Cooling water consume(m 3 /h) | 6 | 6 | 6 | 9 | 12 |
| Compression air(Mpa) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Equipment warranty:
1. CE ISO9001 Certificate
2. We have more than 15 years experience
3. We are factory, and welcome to customer to visit our factory
4. Good pre-sales and after-sales service
5. The customer can send the engineer to our company with training
6. Our engineer can be to the Buyer's company for installation and testing the lines.
7. The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
